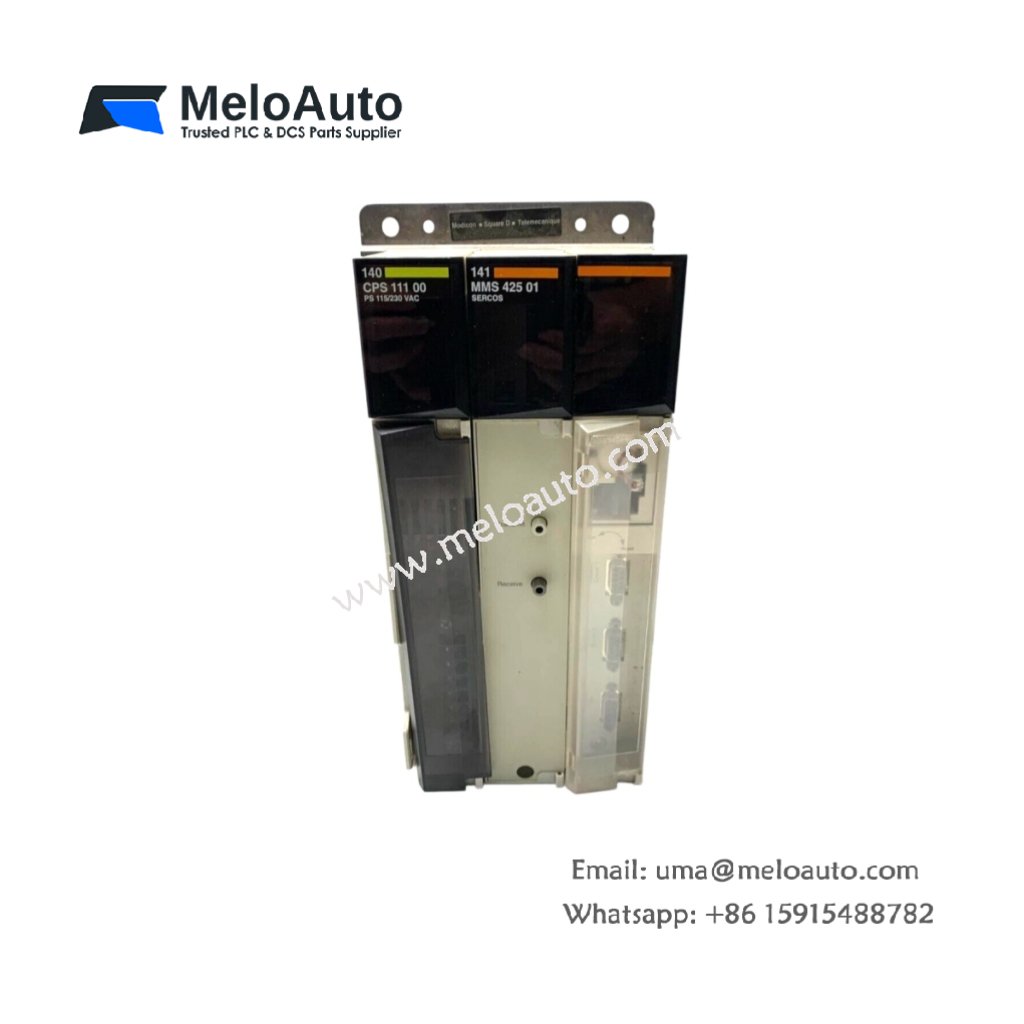

Schneider 140MMS42501 | Multi-Axis Motion Controller

The Schneider 140MMS42501 controls high-precision servo axes for complex machinery. This multi-axis motion controller serves the Modicon Quantum PLC platform. You can manage positioning, velocity, and torque for up to four axes. The unit integrates directly into the Quantum backplane for synchronized motion.

Motion and Control Specifications

Parameter	Specification
Brand	Schneider Electric
Model	140MMS42501
Product Type	Multi-Axis Motion Controller
Number of Axes	4 (servo or stepper)
Control Modes	Position, velocity, torque
Interpolation	Linear, circular, helical
Update Rate	1 ms per axis
Position Resolution	32 bits (2,147,483,648 counts)
Max Encoder Frequency	10 MHz
Command Interface	±10 VDC or pulse/direction

The Schneider 140MMS42501 controls up to four servo or stepper axes simultaneously. This multi-axis motion controller supports linear, circular, and helical interpolation. You can switch between position, velocity, or torque control per axis. The unit updates motion profiles every millisecond for smooth operation.

Physical Dimensions and Weight

Parameter	Specification
Weight	0.65 kg (1.43 lbs)
Height	130 mm
Width	70 mm (2 slots)
Depth	140 mm
Mounting	Quantum backplane
Connector Types	2 x 15-pin D-sub
Component Count	278 discrete parts

This multi-axis motion controller weighs 0.65 kg for stable rack mounting. The unit occupies two slots in a Quantum chassis. Its width reaches 70 mm for dedicated motion processing. You can insert the Schneider 140MMS42501 alongside Quantum CPU or I/O modules.

Interface and Connection Points

Two 15-pin D-sub connectors handle encoder and command signals for all axes. The front panel includes a USB port for configuration and firmware updates. You will find 8 LED indicators for axis status and module health. A rotary switch selects the module address from 0 to 9. Each axis provides dedicated inputs for limit switches and home sensors.

Energy Storage and Internal Circuitry

The Schneider 140MMS42501 uses a supercapacitor for parameter retention during power loss. This capacitor stores enough energy for 72 hours of data preservation. An optional lithium battery provides 5 years of backup for critical parameters. The module includes 4 MB of flash memory for motion programs. A real-time clock tracks events with ±1 minute per month accuracy.

Component Layout and Construction

A dedicated 32-bit motion DSP handles all trajectory calculations. Four 16-bit DACs generate the ±10 VDC command signals. You will find 128 resistors, 96 capacitors, and 14 integrated circuits on the board. The Schneider 140MMS42501 includes optocoupler isolation for all I/O signals. A metal shield covers the analog section for noise reduction.

Operational Use and System Integration

Transitioning to this controller adds high-performance motion to your Quantum system. You can coordinate up to four axes for gantry or robotic applications. The module works with third-party servo drives accepting ±10 VDC commands. Use the Schneider 140MMS42501 for pick-and-place machines, packaging lines, or CNC routers. For best results, use shielded cables for all encoder and command signals.
