ProSoft PLX82-EIP-61850 Gateway

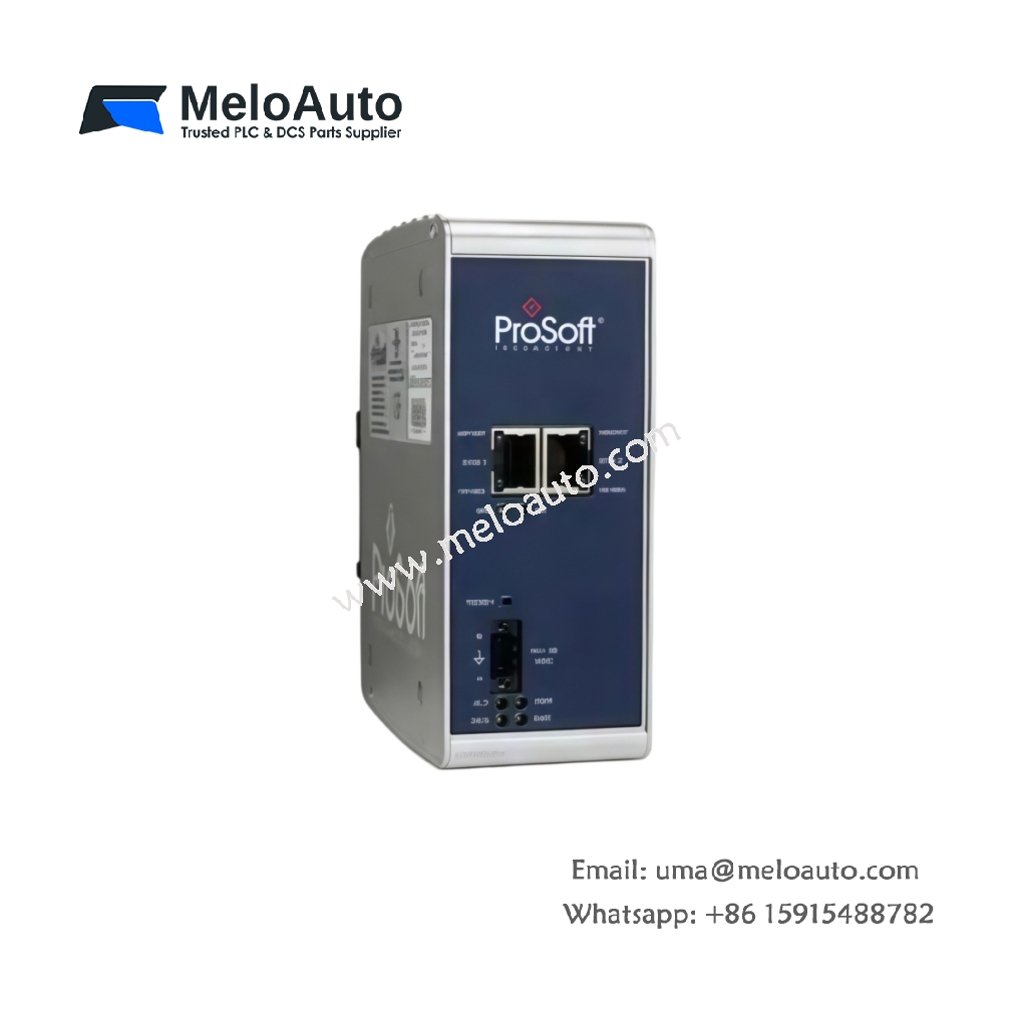

Substation Data Exchange with the PLX82-EIP-61850

The PLX82-EIP-61850 bridges EtherNet/IP controllers and IEC 61850 substation networks. This communication gateway exchanges process data between plant control systems and protection devices. System integrators therefore apply it in power generation and utility automation projects. Its DIN-rail housing mounts inside standard enclosures without extra brackets.

Detailed Technical Parameters

Dual-protocol support defines the PLX82-EIP-61850, because the gateway runs EtherNet/IP and IEC 61850 services on separate firmware paths. The processor board maps data points between the two protocol stacks. Meanwhile, the dual Ethernet ports support redundant network topologies. Review the essential specifications in the table below.

Parameter	Specification
Function	EtherNet/IP to IEC 61850 communication gateway
Network protocols	EtherNet/IP and IEC 61850 MMS
Ethernet ports	Two switched 10/100 Mbps ports
Dimensions (W × H × D)	90 × 140 × 115 mm
Weight	Approximately 0.9 kg
Interface	Dual Ethernet ports plus configuration port
Component count	Processor board plus dual network interface stage
Energy storage	Local decoupling capacitor array
Operating temperature	-25 °C to 70 °C

Integration into Control Systems

The PLX82-EIP-61850 snaps onto a DIN rail and connects through standard Ethernet cables. Commissioning engineers configure data point mapping through the setup software. Consequently, substation links return to service quickly after gateway replacement. The device converts protocol frames within milliseconds of each scan cycle. Furthermore, the metal housing resists interference from drives and power equipment nearby.

Why Plants Choose This Gateway
