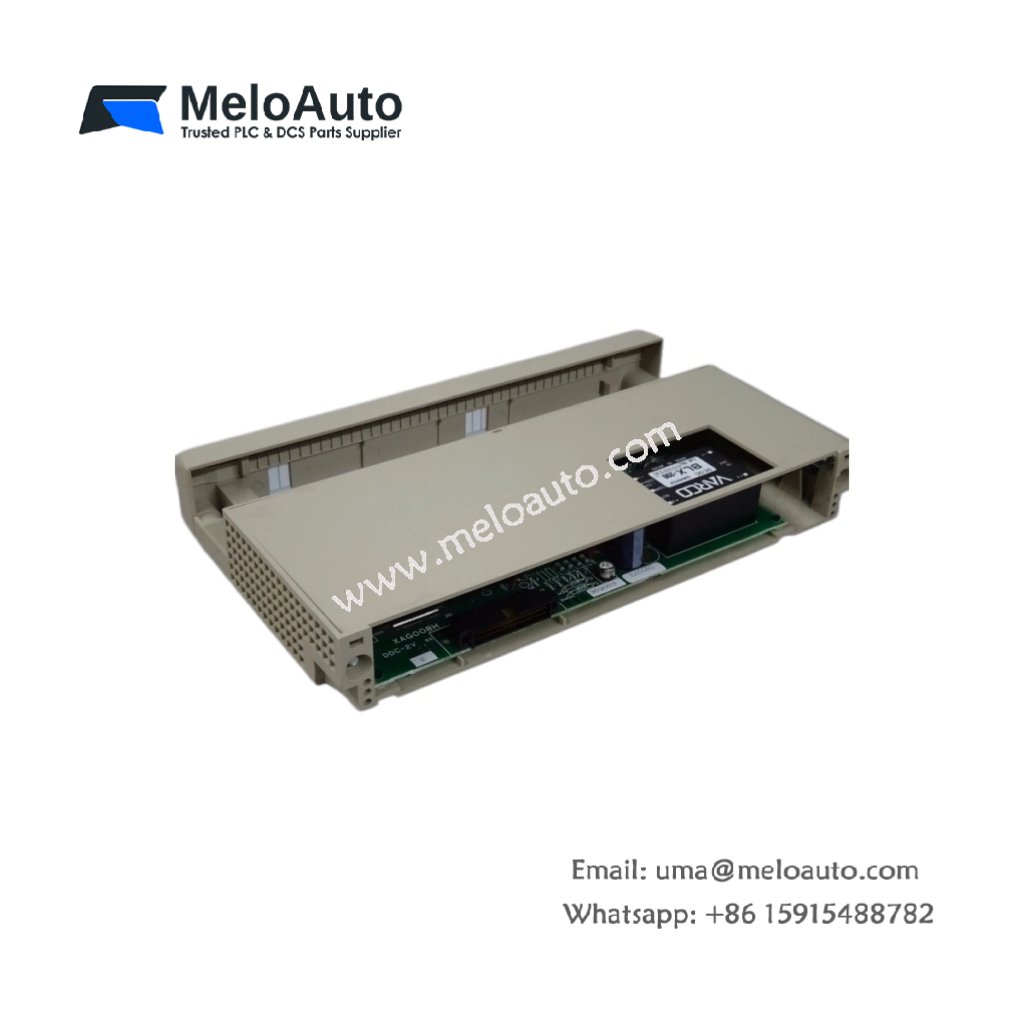

This module converts analog field signals to digital values for Advant controllers. The ABB 07 EA 200 accepts 8 current or voltage inputs for monitoring applications. It measures 180 mm in width and 120 mm in height. This unit weighs approximately 0.44 kg for rack mounting.
Technical Specifications Table
| Parameter | Value |
|---|---|
| Product Model | ABB 07 EA 200 |
| Brand | ABB |
| Category | Analog Input Module |
| Compatible Series | ABB Advant / S100 I/O |
| Number of Inputs | 8 channels |
| Input Types | Configurable per channel: 0-20 mA, 4-20 mA, 0-10 V, ±10 V |
| Resolution | 14 bits (16384 counts) |
| Accuracy | ±0.15% of full scale at 25°C |
| Update Rate | 10 ms per channel (80 ms all channels) |
| Input Impedance | 250 Ω (current), 100 kΩ (voltage) |
| Dimensions (W x H x D) | 180 mm x 120 mm x 50 mm |
| Weight | 0.44 kg |
| Connector Type | 1 x 20-pin screw terminal block |
| Internal Components | 1 x 14-bit ADC, 1 x multiplexer, 1 x microprocessor |
| Energy Storage | 8 x 0.1 µF input filtering capacitors |
| Electrical Isolation | 1500 V RMS between inputs and backplane |
| Overvoltage Protection | ±30 V DC continuous |
| Operating Voltage | 5 V DC (from backplane), 24 V DC (field supply) |
| Power Consumption | 100 mA at 5 V, 60 mA at 24 V |
| LED Indicators | 1 x green (power), 1 x red (fault) |
| Operating Temperature | 0°C to 55°C |
Internal Design and Analog Conversion
This analog input module uses a 14-bit ADC for precise signal conversion. A multiplexer scans all eight channels sequentially for processing. The ABB 07 EA 200 configures each channel independently for current or voltage. Eight 0.1 µF capacitors filter high-frequency noise from input signals. An onboard microprocessor linearizes and scales the digital values. Consequently, this module delivers accurate analog readings for process control applications.
Installation and Wiring Guide
First, mount this module into any Advant rack slot securely. Next, connect a 24 V DC field supply to the designated power terminals. Then, wire your analog sensors to the input terminals (channels 1-8). Use shielded twisted-pair cables for all analog signal connections. Configure each channel’s input type using Advant configuration software. The module provides LED indicators for power and fault status. This analog input module works with ABB Advant controllers and S100 I/O systems. Always connect the shield drain wire to earth ground for noise reduction.
