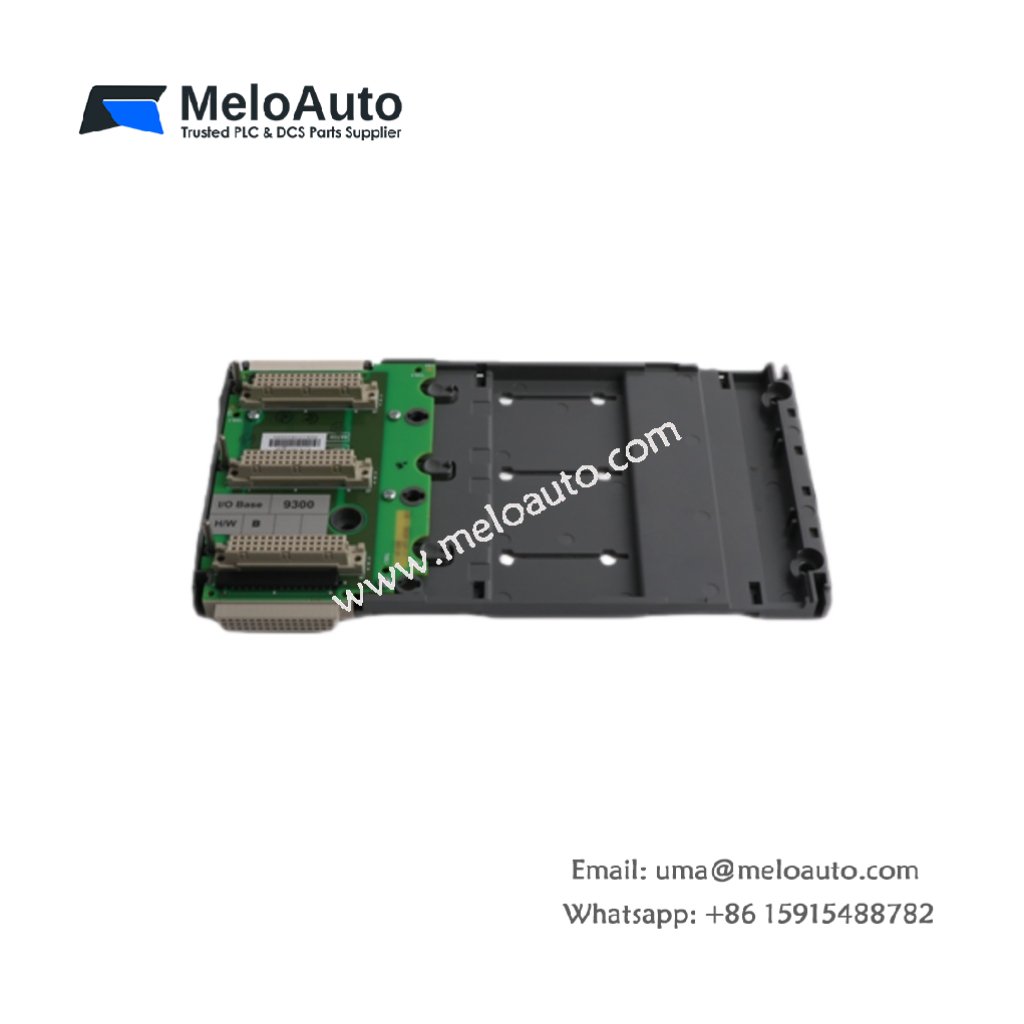

ICS Triplex T9300 I/O Backplane

The ICS Triplex T9300 I/O Backplane forms the central interface platform within the Trusted™ PLC architecture. It connects multiple input and output modules directly to the system processor while supporting triplicated diagnostics for high-integrity industrial applications. Its rugged metal structure, generous device capacity, and broad power compatibility make it suitable for mission-critical control environments.

High-Reliability System Integration

The T9300 manages dense module configurations and performs continuous current and voltage checks across every voted output channel. It therefore strengthens fault detection and ensures stable operation across complex control loops. Users integrate this backplane widely across energy, transportation, and heavy-process systems that require uninterrupted performance.

Key Features

• Supports triplicated diagnostic measurements for improved system integrity
• Connects up to 40 field devices through the I/O module framework
• Operates with 120 VAC, 240 VAC, and 480 VAC power sources
• Provides robust mechanical stability for demanding industrial sites
• Optimizes signal integrity and module communication across a full PLC rack

Technical Specifications

Electrical & Performance

Mechanical Data

Typical Applications

• Power generation and distribution facilities
• Oil and gas refining operations
• Chemical manufacturing plants
• Rail and transportation infrastructure
• High-availability automation systems using Trusted™ technology

Origin, Dimensions & Weight

• Origin: USA
• Dimensions: 482.6 × 482.6 × 335.2 mm
• Weight: 22.7 kg (50 lb)
