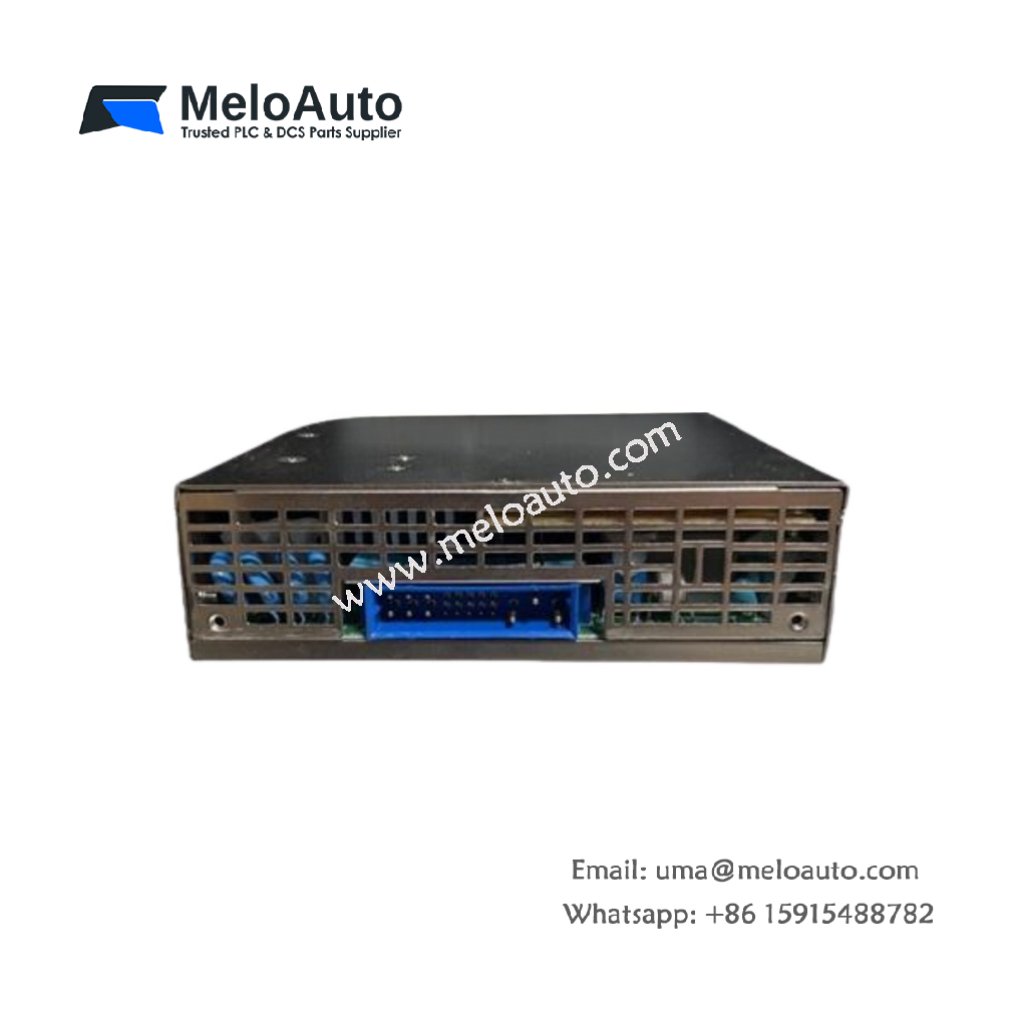

ICS Triplex T8231C Power Module

Product Overview

The ICS Triplex T8231C is a high-performance power module designed specifically for industrial automation applications. As part of the ICS Triplex series, this module provides a reliable 24VDC power supply to field devices, ensuring stable and continuous operation in critical environments. The ICS Triplex T8231C combines high channel density, flexible installation, and ease of maintenance, making it ideal for space-constrained and mission-critical industrial setups.

With features that promote operational efficiency and safety, this module offers both reliability and flexibility. It ensures quick and straightforward installation, while also providing scalable options for future expansion.

Key Features

High Input Channel Density: The ICS Triplex T8231C supports up to 40 input channels per Field Termination Assembly (FTA). This design maximizes space utilization and optimizes wiring in dense industrial environments.
Standardized Connections: It uses industry-standard 2-wire field device connections. This makes wiring simple and maintenance tasks easier, even in large-scale installations.
Flexible Installation: Designed to conform to standard DIN rail mounting, the ICS Triplex T8231C offers easy installation. Its modular nature also allows for future upgrades or expansions with minimal disruption to the system.
Reliable 24VDC Power Supply: The built-in 24VDC power supply ensures that field devices receive stable power, which is essential for reliable system performance.
Modular Design with SmartSlot Connectivity: The ICS Triplex T8231C features SmartSlot connectivity, which allows users to hot-swap input modules without needing to shut down the system. This reduces downtime and ensures quick maintenance.
Enhanced Channel Protection: Each input channel comes with a fuse for added protection against overcurrent and short circuits, ensuring the safety of the connected equipment.
Status Indicators: The ICS Triplex T8231C includes onboard LED indicators that display the power status. These visual indicators help users quickly diagnose faults and ensure the system is operating as expected.

Technical Specifications

Parameter	Value
Model	ICS Triplex T8231C
Power Supply	24VDC
Input Channel Density	Up to 40 channels per Field Termination Assembly (FTA)
Connections	2-wire field device connections
Mounting Type	DIN rail mounting
SmartSlot Connectivity	Hot-swappable input modules
Channel Protection	Fuses on each input channel for overload protection
Status Indicators	On-board LED indicators for power status
Operating Temperature	0°C to 60°C (32°F to 140°F)
Dimensions (WxDxH)	150 mm x 200 mm x 100 mm
Weight	2.1 kg
