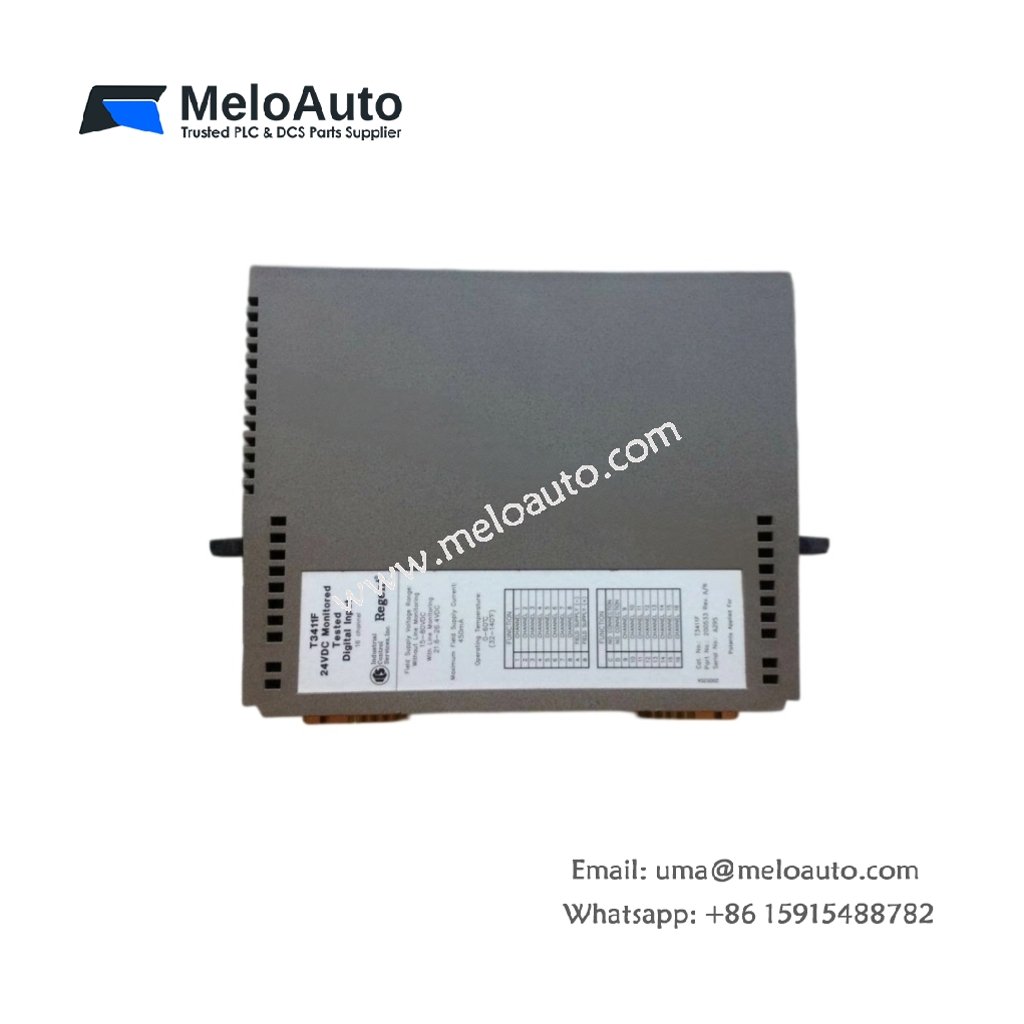

ICS Triplex T3411F DCS Module | Specs, Weight & Interfaces

The ICS Triplex T3411F serves as a core module within distributed control systems demanding high integrity. Engineers select this unit for safety-critical applications where fault tolerance directly impacts operational continuity. Consequently, the module delivers triple modular redundancy across all processing channels.

Physical Dimensions and Weight Parameters

Space constraints often dictate rack configuration in industrial environments. Therefore, the ICS Triplex T3411F maintains a compact footprint without sacrificing computational capacity. The unit weighs approximately 1.2 kg and occupies a standard 6U rack slot. Additionally, its dimensions measure 233 mm by 160 mm by 40 mm.

Interface and Connectivity Options

Reliable data exchange requires robust physical connections between modules. The ICS Triplex T3411F provides dual redundant backplane interfaces for critical signal paths. Furthermore, front-panel indicators allow technicians to monitor channel health in real time. The module supports hot-swap capability, so maintenance occurs without system shutdown.

Component Count and Energy Storage

Internal architecture determines both reliability and service life. The ICS Triplex T3411F contains over 400 discrete components across three independent processing lanes. Moreover, onboard energy storage includes a lithium battery that retains configuration data for 90 days. This battery supports non-volatile memory during power interruptions.

Parameter	Specification
Module Type	Triple Modular Redundant (TMR)
Dimensions	233 × 160 × 40 mm
Weight	1.2 kg
Rack Size	6U
Backplane Interfaces	Dual redundant
Component Count	400+ discrete parts
Energy Storage	Lithium battery, 90-day retention
Hot-Swap Support	Yes
Operating Temperature	0°C to 60°C

Key Technical Specifications

Processing speed affects overall system response time significantly. The ICS Triplex T3411F executes scan cycles within 10 ms for typical control logic. Meanwhile, isolation voltage reaches 500 VDC between field wiring and internal circuits. Diagnostic coverage exceeds 99% for safe failure detection.

Reliability and Compliance Standards

Industrial deployments require adherence to strict safety certifications. The ICS Triplex T3411F complies with IEC 61508 SIL 3 requirements for functional safety. In addition, the module meets CE and UL standards for electromagnetic compatibility. These credentials ensure dependable operation across harsh plant conditions.
