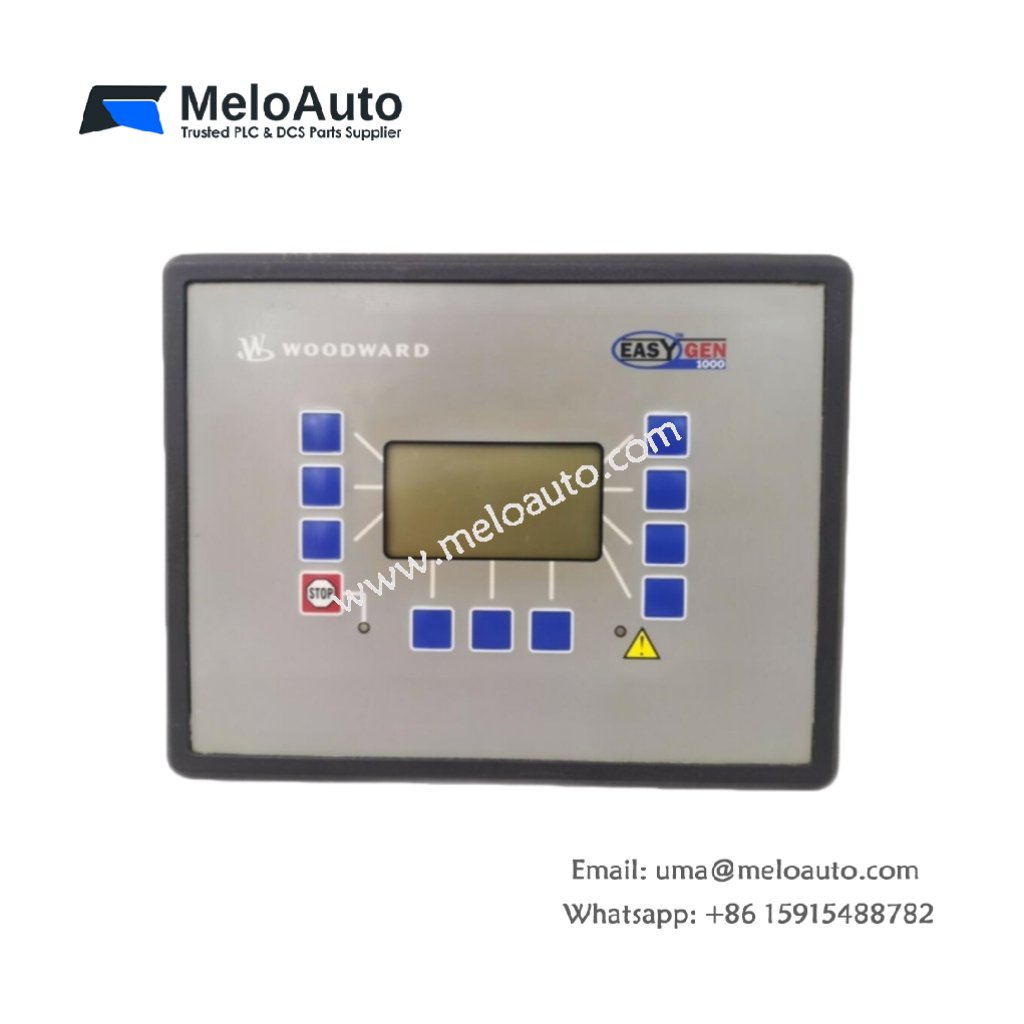

Woodward ESAYGEN-1000 Series

Overview

The Woodward EASYGEN-1000 is a highly reliable Automatic Mains Failure (AMF) controller designed specifically for single generator sets used in stand-by or prime power applications. This controller offers exceptional control, protection, and automation capabilities, making it ideal for demanding environments where power reliability is crucial. The EASYGEN-1000 integrates seamlessly into industrial systems, enabling efficient operation and quick response times.

The EASYGEN-1000 series includes advanced features such as a user-friendly LCD display, extensive communication interfaces, and automatic changeover functionality, ensuring smooth operation of generator sets. Designed for ease of use, it simplifies commissioning and enhances operational control.

Available Models

The Woodward EASYGEN-1000 Series consists of two variants, each offering specific features to suit various application needs:

EASYGEN-1600

Compact AMF controller with an intuitive LCD display for easy monitoring.
Comes with standard on-board I/Os and industrial connectivity.
Ideal for basic generator set applications with reliable performance.

EASYGEN-1800

Advanced AMF controller with a larger LCD display for better user interface.
I/O expansion options to accommodate more complex systems.
Features Ethernet connectivity and SD card interface, enabling remote access and data logging.

Key Features

Automatic Generator Control: The EASYGEN-1000 series is engineered to automatically start, stop, and protect the generator set, including opening and closing circuit breakers and switching between mains power and generator power.
Comprehensive Communication Options: The series supports various communication interfaces, including Ethernet, CAN (J1939), RS485 (Modbus), RS232 (Modem), and USB (Service) for remote monitoring and integration.
Heavy-Duty Relays: The EASYGEN-1000 models feature durable relays to ensure reliable protection of the engine, breaker, and application interfaces.
Lifetime Event Logging: The EASYGEN-1000 logs important events, allowing users to troubleshoot and perform root cause analysis effectively.
Multilingual Support: The system is multi-lingual, with support for two standard languages and one customizable slot for additional languages.
Best-in-Class LCD: Both EASYGEN-1600 and EASYGEN-1800 feature a top-quality LCD display for enhanced user interaction and real-time monitoring.

Technical Specifications

Specification	Details
Model	Woodward EASYGEN-1000 Series
Control Type	Automatic Mains Failure (AMF) Controller
Variants	EASYGEN-1600, EASYGEN-1800
Display	LCD (Standard or Large)
I/O Options	On-board I/Os and I/O Expansion (EASYGEN-1800)
Communication Interfaces	Ethernet, CAN, RS485, RS232, USB
Relay Type	Heavy-duty relays
Event Logging	Lifetime event logging for troubleshooting
Languages Supported	2 standard + 1 custom language slot
Protection	Engine, generator, and utility protection

Benefits

Cost-effective solution: The EASYGEN-1000 Series offers an affordable yet high-performance solution for automatic mains failure control, reducing operational costs while ensuring reliability.
Ease of Installation: With simplified setup and configuration, the EASYGEN-1000 series minimizes deployment time, making it suitable for both experienced and novice users.
Enhanced User Experience: The LCD display and intuitive interface allow for easy monitoring and adjustments, improving user control over the generator set operation.
Versatility: The EASYGEN-1000 works well with a variety of generator types and automation systems, offering flexibility for different industrial applications.

Applications

The Woodward EASYGEN-1000 series is ideally suited for:

Standby Power: Automatic switchover between mains power and generator power to ensure continuity in critical applications.
Prime Power Generation: Manage and monitor prime power systems in industrial facilities.
OEM Genset Integration: Integrate seamlessly with OEM generator sets to provide reliable control and protection.
