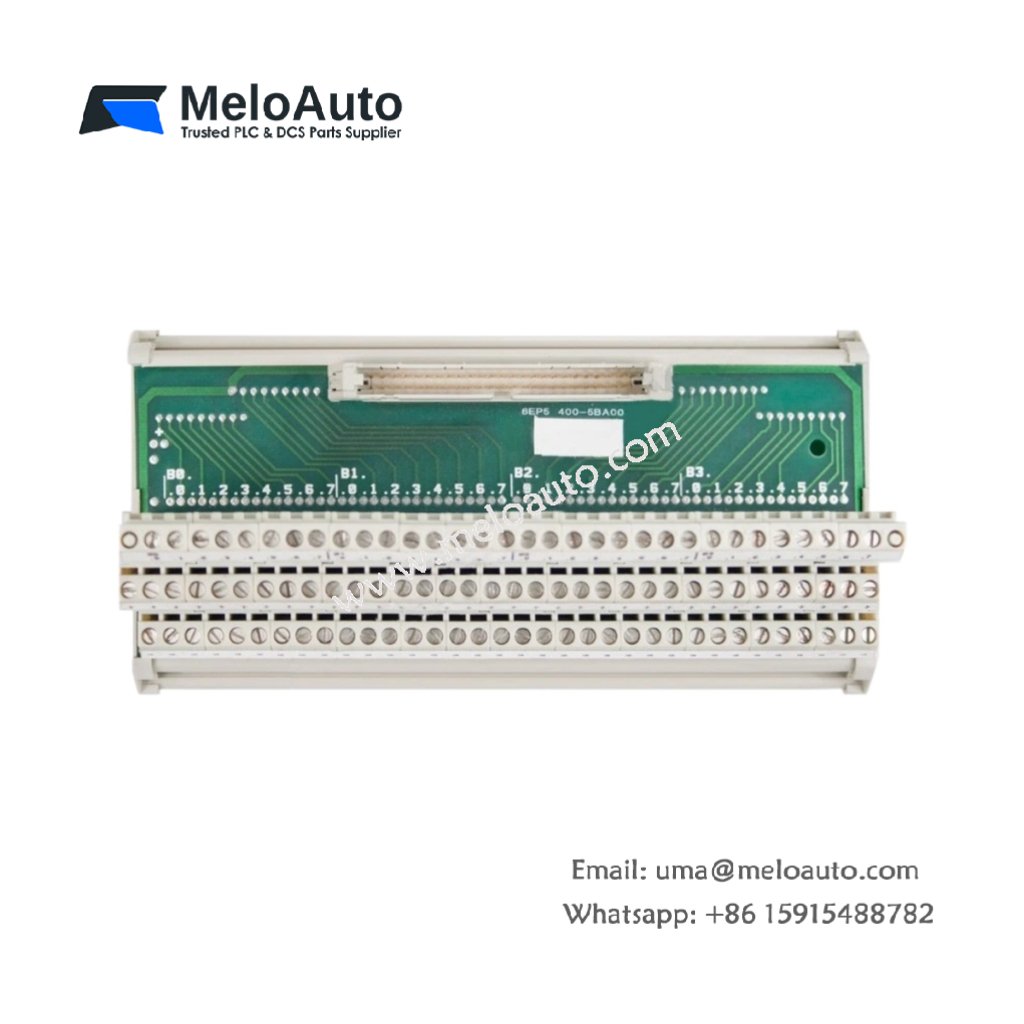

Siemens 6EP5400-5BA00 Terminal Module

This terminal module distributes power and signal connections for SIMATIC S7 systems. It provides a centralized wiring point for multiple I/O channels. Therefore, this component simplifies cabinet wiring and reduces installation time.

Physical Dimensions and Weight Specifications

The Siemens 6EP5400-5BA00 features a compact housing for DIN rail mounting. Its width measures 60 mm for standard industrial enclosures. The total depth reaches 80 mm including the terminal blocks. Consequently, technicians can install this module in tight cabinet spaces.

Interface Types and Connection Layout

The Siemens 6EP5400-5BA00 provides 20 spring-clamp terminals for field wiring. A 20-pin connector links to the main I/O module via ribbon cable. The housing includes labeling strips for channel identification. Hence, operators can trace wires quickly during troubleshooting.

Component Count and Signal Routing

This terminal module contains a passive PCB with no active electronics. The board holds 20 signal traces connecting the two connector types. You will also find a ground bar for commoning multiple sensor returns. An onboard jumper allows configuration for sourcing or sinking inputs.

Energy Storage and Power Distribution

The Siemens 6EP5400-5BA00 contains no active energy storage components. It simply passes signals and power from field to module. The unit handles up to 4A total across all terminals. Therefore, users should not exceed this limit for reliable operation.

Installation and Operational Benefits

Users can pre-wire this terminal module before mounting it on the rail. This practice reduces cabinet assembly time significantly. A locking lever secures the ribbon cable against vibration loosening. This design improves system reliability in high-vibration environments.
