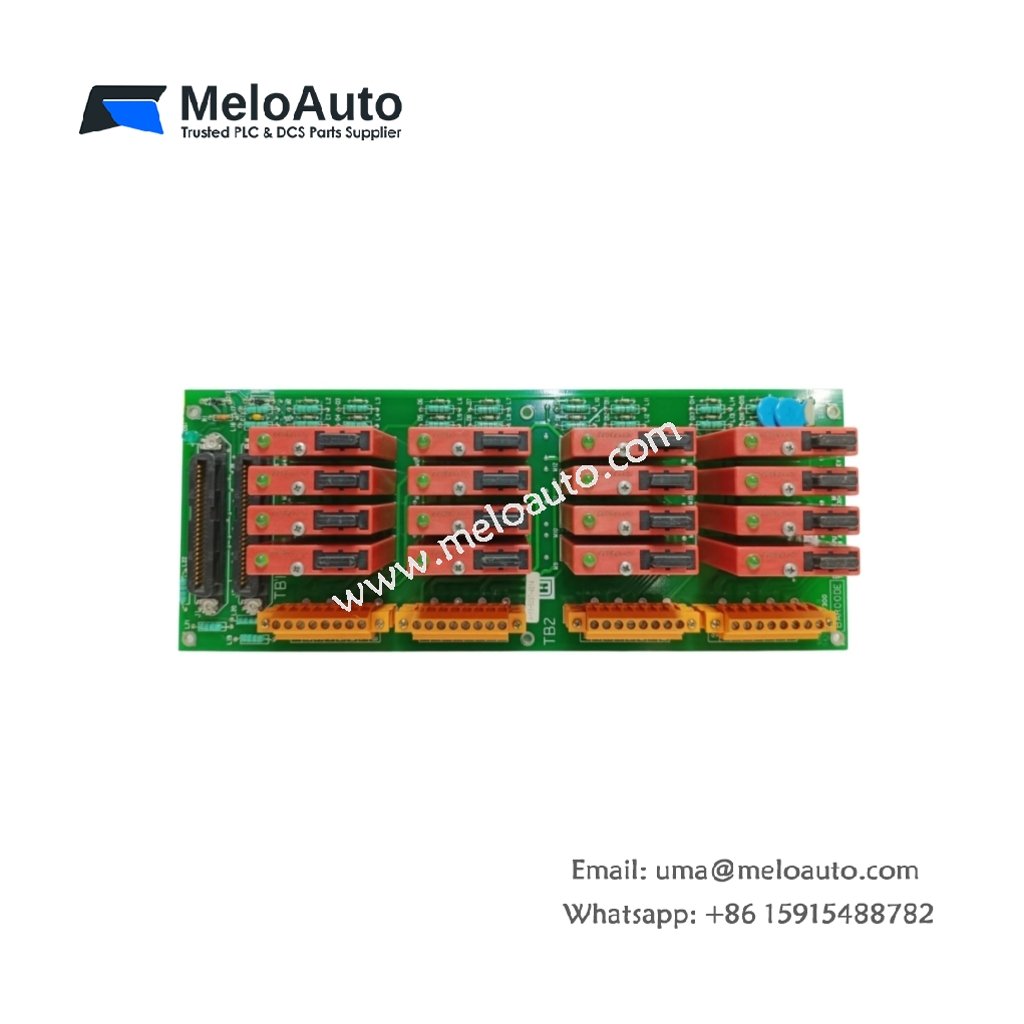

Honeywell MU-TDOD13 Output Termination Assembly

Core Technical Specifications

The MU-TDOD13 digital output termination assembly provides a convenient interface between control logic and field actuators. This unit measures 160 millimeters in height, 120 millimeters in width, and 60 millimeters in depth, with a total weight of approximately 0.55 kilograms. The assembly terminates sixteen discrete output signals using screw-type terminal blocks for secure field wiring. It incorporates built-in surge suppression components to protect against transient voltage spikes from inductive loads.

Parameter	Specification
Brand	Honeywell
Model	MU-TDOD13
Category	Output Termination Assembly
Dimensions (H x W x D)	160 x 120 x 60 mm
Weight	0.55 kg
Termination Points	16 (screw terminals)
Output Type	Digital (sourcing/sinking compatible)
Terminal Pitch	5.08 mm
Wire Gauge Range	14–22 AWG
Surge Suppression	Integrated MOV + RC snubber
Logic Interface	50-pin ribbon connector
LED Indicators	16 (per-channel status)
Operating Temperature	0 to 55 °C
Humidity	5% to 95% RH
Protection Rating	IP20
Standards	CE, UL 508

Termination and Wiring Features

The MU-TDOD13 accepts solid or stranded wires from 14 to 22 AWG for reliable field connections. Each terminal point features a rising-cage clamp mechanism that ensures secure wire retention over time. The assembly includes clearly numbered labels that match the corresponding output channel addresses. It also provides common return buses for simplified wiring of multiple outputs. This design reduces installation time and minimizes the risk of wiring errors during system commissioning.

Signal Conditioning and Protection

This termination assembly integrates MOVs and RC snubber circuits across each output terminal pair. These components suppress voltage transients generated by solenoids, relays, and motor contactors. The MU-TDOD13 also includes current-limiting resistors to protect the logic interface from overload conditions. It provides LED indicators for each channel that illuminate when the output command energizes. This visual feedback simplifies troubleshooting and verifies proper signal propagation.

Physical Installation and Connectivity

You can mount this assembly onto standard DIN rails using the integrated spring-clip mechanism. Its front face provides easy access to all sixteen screw terminals for field wiring connections. The unit interfaces with the host system through a 50-pin ribbon cable connector. This connector carries both output command signals and status feedback from each channel. The assembly’s compact 60-millimeter depth allows installation in shallow control cabinets.

Memory and Diagnostic Capabilities

The MU-TDOD13 does not include onboard memory but relies on the host processor for data storage. It provides diagnostic feedback through a dedicated status line for each output channel. The assembly detects open-wire conditions and reports them back to the main controller. It also monitors the field supply voltage and alerts the system to undervoltage conditions. These diagnostic features enable rapid identification of wiring or power issues.

Environmental Performance and Compliance

This termination assembly operates reliably across a temperature range of 0 to 55 degrees Celsius. It withstands humidity levels from 5% to 95% without condensation. The MU-TDOD13 meets IP20 protection standards for indoor industrial environments. Its flame-retardant housing complies with UL 94 V-0 requirements for safety. The assembly also meets CE and UL 508 certification standards for global deployment.
