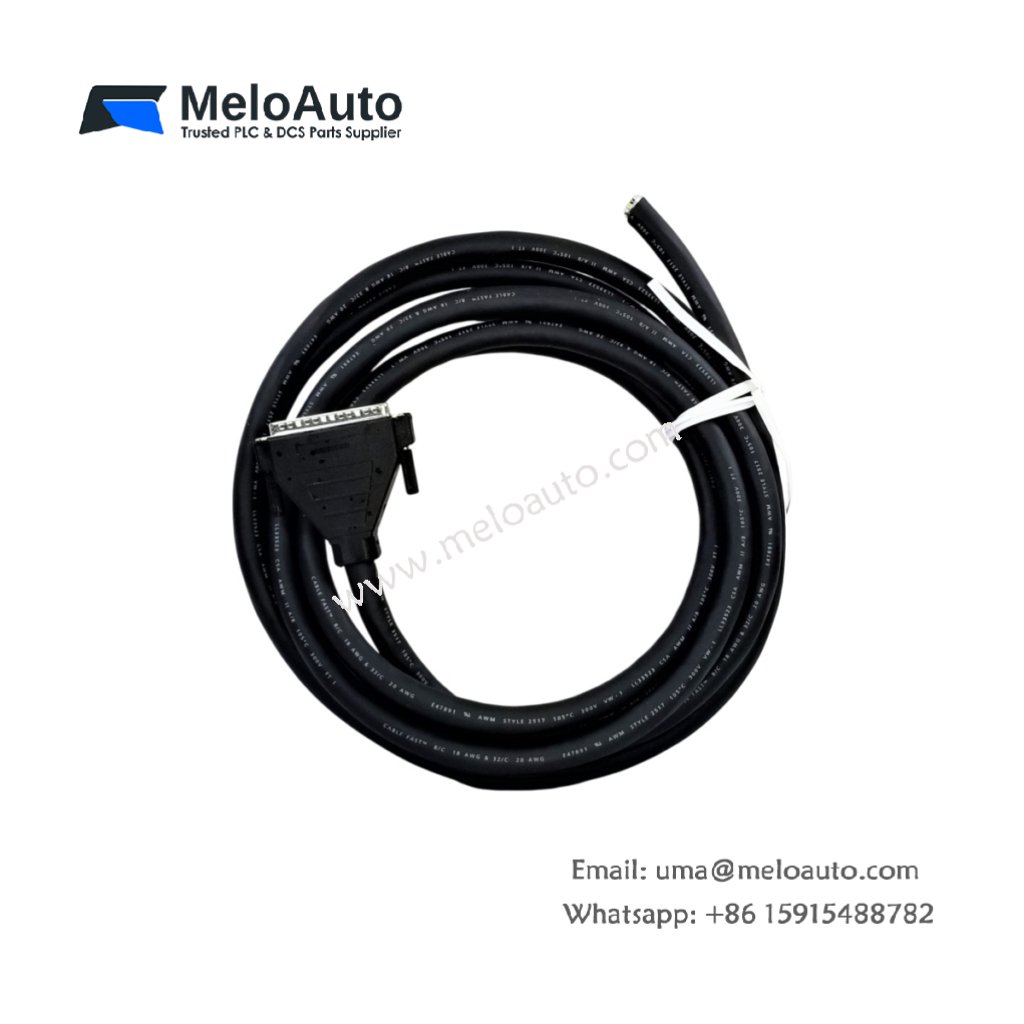

Schneider 140XCA10215 Cablefast Assembly

Technical Specifications

Parameter	Value
Brand	Schneider
Model	140XCA10215
Category	Cablefast Assembly
Weight	0.98 lbs (0.44 kg)
Dimensions	8.7 x 5.2 x 1.4 inches
Component Count	28 discrete components
Cable Type	Shielded ribbon
Cable Length	2.5 meters (8.2 feet)
Conductor Count	20 conductors
Connector Type 1	20-pin IDC at both ends
Connector Type 2	D-sub 9-pin (adapter)
Contact Plating	Gold over nickel
Conductor Gauge	28 AWG stranded
Voltage Rating	30V DC maximum
Current Rating	0.5A per conductor
Shielding	Foil with drain wire
Insulation Material	PVC, gray
Energy Storage	None (passive assembly)
Temperature Range	-10°C to 70°C

Physical Construction and Component Layout

This 140XCA10215 Cablefast assembly measures 8.7 inches at its widest point. The complete unit includes connectors and a 2.5-meter cable. Total weight comes to approximately 0.98 pounds. Manufacturers assembled 28 discrete components into this cable assembly. These components include two IDC connectors, one D-sub adapter, and a shielded ribbon cable. The foil shielding reduces electromagnetic interference in industrial environments.

Cable Specifications and Signal Integrity

140XCA10215 uses a 20-conductor shielded ribbon cable for signal transmission. The cable extends to 2.5 meters or approximately 8.2 feet in length. Each conductor uses 28 AWG stranded copper wire for flexibility. Foil shielding covers the entire conductor bundle for noise protection. A drain wire connects the shield to ground at both ends. Each conductor handles up to 0.5 amps at 30V DC maximum. The gray PVC jacket resists oil and mild chemical exposure.

Connector Types and Interface Compatibility

The Cablefast assembly provides two different connector types for flexibility. A 20-pin IDC connector terminates each end of the ribbon cable. These IDC connectors feature gold-over-nickel contact plating. One additional D-sub 9-pin adapter attaches to one IDC connector. This adapter converts the interface for different device compatibility. Polarized connectors prevent incorrect insertion during installation. Keyed housings ensure proper pin alignment every time.

Application Use and System Integration

You will use this assembly to connect Schneider Quantum PLC components. For example, it links I/O racks to processor modules or power supplies. The 140XCA10215 operates reliably from -10°C to 70°C ambient. The drain wire simplifies proper grounding for noise reduction. Therefore, this Cablefast assembly provides a reliable interconnection solution for Modicon Quantum systems.
