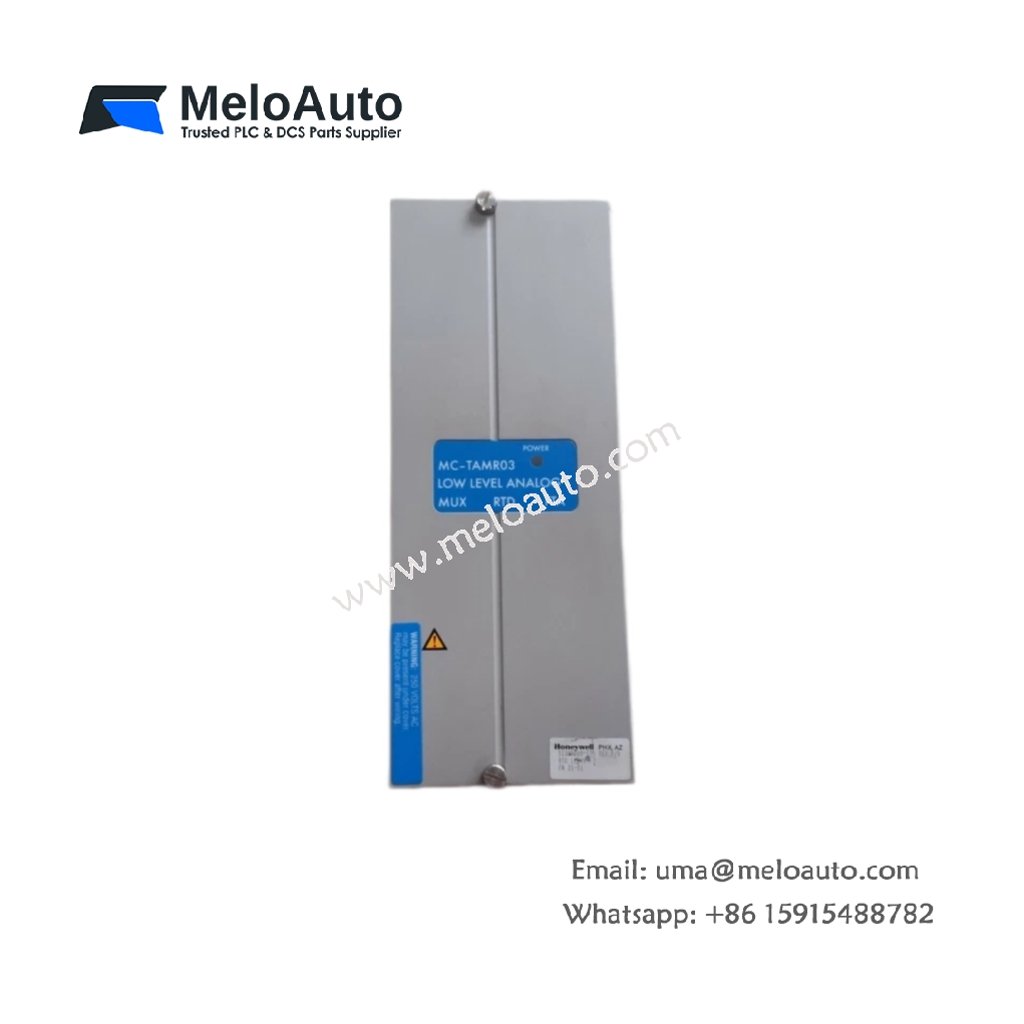

Honeywell MC-TAMR03 51309218-175 Analog Module

Product Overview

This analog module serves as a versatile signal conditioning unit for Honeywell TDC 3000 systems. It handles both analog input and output functions within a single compact housing. The MC-TAMR03 51309218-175 interfaces with field transmitters and actuators for complete loop control. Its multi-function design reduces the number of required modules in complex applications. This unit offers reliable signal processing for continuous process monitoring and control.

Technical Specifications

The MC-TAMR03 51309218-175 measures 27.9 cm in height, 17.8 cm in depth, and 2.5 cm in width. It weighs approximately 0.82 kg, including all terminal blocks and mounting hardware. This module draws 280 mA from the 24 VDC power supply during normal operation. It features four analog input channels and four analog output channels with 14-bit resolution. The input channels accept standard 4-20 mA signals from transmitters and sensors. The output channels provide 4-20 mA signals for driving field actuators and positioners. Each channel includes 1500 VAC optical isolation for circuit protection. The conversion time measures 80 ms for scanning all input channels sequentially. The output update rate reaches 60 ms for all output channels simultaneously. The front panel includes LED indicators for power and per-channel operational status.

Functional Configuration and Versatility

This module combines both measurement and control functions in a single device. It scales input signals and generates corresponding output signals for closed-loop applications. The MC-TAMR03 51309218-175 allows independent configuration of each channel through software. Users can set input ranges, output ranges, and alarm thresholds individually. The module also performs automatic self-calibration to maintain long-term stability.

Physical and Electrical Parameters

Installation and Configuration Steps

Install the MC-TAMR03 51309218-175 into any available slot within the TDC 3000 chassis. Secure the unit using the retaining screws positioned at both top and bottom ends. Connect field transmitters to the input channels and actuators to the output channels accordingly. The module powers up and initializes automatically when the system energizes. Configure input scaling and output ranges through the system configuration software. Monitor channel status through both software displays and front-panel LED indicators.

Typical Applications

This module serves process control loops in refineries, chemical plants, and power stations. It monitors temperature, pressure, and flow while controlling valves and dampers. The MC-TAMR03 51309218-175 also supports blending operations and batch processing applications. Its combined I/O capability makes it ideal for compact loop control installations.
