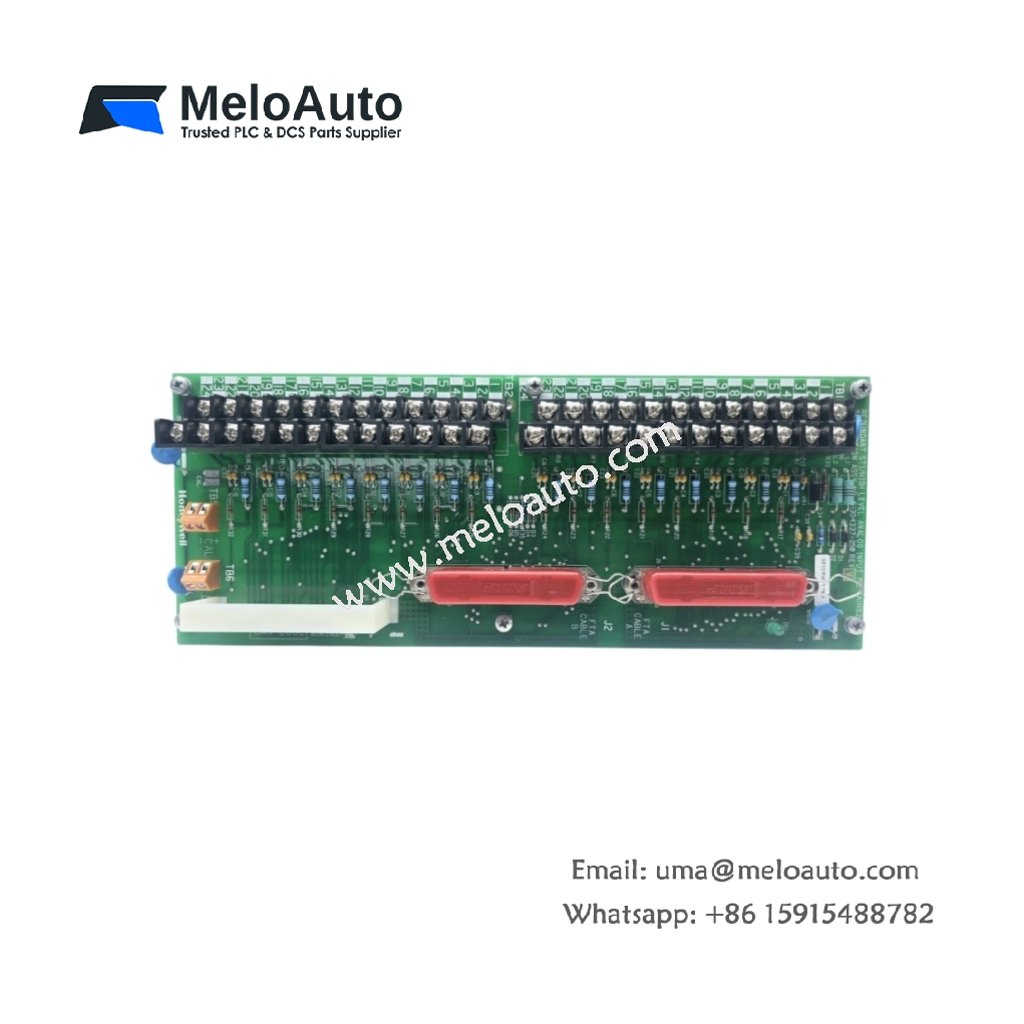

Honeywell MC-TAIH52 51304337-250 Analog Input Module

Input Architecture and Channel Design

This analog input module handles high-level signals from field transmitters and sensors with precision. It provides eight differential input channels with 16-bit resolution for accurate measurement. Each channel accepts 0–10 VDC or 0–20 mA signals through software selection. The module also offers programmable input filtering to eliminate noise on long cable runs. This filtering capability ensures stable readings even in electrically harsh environments.

Technical Specifications

Parameter	Specification
Model Number	MC-TAIH52 51304337-250
Input Channels	8 differential analog inputs
Resolution	16 bits (1 LSB = 0.003% of span)
Signal Types	0–10 VDC, 0–5 VDC, 0–20 mA, 4–20 mA
Input Impedance (Voltage)	10 MΩ minimum
Input Impedance (Current)	250 Ω (built-in shunt resistor)
Accuracy	±0.05% of full scale at 25°C
Accuracy Drift	±50 ppm/°C maximum
Common Mode Voltage	±10 VDC maximum
Common Mode Rejection	>100 dB at 60 Hz
Normal Mode Rejection	>60 dB at 60 Hz
Update Rate	10 ms per channel (80 ms full scan)
Input Filtering	Programmable 4-pole low-pass
Isolation	1500 VAC channel-to-backplane
Current Draw	200 mA from 5 VDC backplane
Power Dissipation	5.0 W maximum
Operating Temperature	0°C to +60°C
Storage Temperature	–40°C to +85°C
Dimensions (H x W x D)	130 mm x 32 mm x 155 mm
Weight	Approximately 0.44 kg
Field Termination	40-pin ribbon cable connector
Status Indicators	Channel activity and module health LEDs

Signal Conditioning and Measurement Accuracy

Each channel includes a built-in shunt resistor for current mode operation. The module performs automatic zero and gain calibration for each input. This calibration compensates for temperature drift and component aging effects. The 16-bit ADC delivers exceptional resolution for demanding process measurements. A programmable gain amplifier optimizes the input range for each channel.

Field Wiring and Connection Interface

The MC-TAIH52 51304337-250 connects to field signals via a 40-pin ribbon cable assembly. Each differential channel requires three connections: positive, negative, and shield. Connect the cable shield to the designated ground terminal for noise reduction. Use twisted-pair wiring for optimal common mode noise rejection. Maintain proper wire separation from high-voltage AC power cables.

Power Requirements and Energy Storage

This module draws 200 mA from the 5 VDC system backplane supply. Internal capacitors store charge to ride through brief power disturbances. The module retains calibration data in non-volatile memory permanently. Total power dissipation reaches 5.0 W at full rated operation. Proper spacing between modules ensures adequate airflow for cooling.

Installation and Mounting Instructions

Insert the module into any available Series T chassis slot. Push the module until the ejector tabs latch securely in place. Fasten the top and bottom retaining screws to secure the module. Connect the field wiring harness after completing mechanical installation. Verify the power LED illuminates upon system startup.

Environmental Operating Conditions

This module operates reliably within a 0°C to 60°C temperature range. It tolerates humidity levels from 5% to 95% non-condensing without performance degradation. The PCB features conformal coating for protection against moisture and dust. This construction suits applications in chemical processing and manufacturing facilities. Ensure adequate cabinet ventilation for sustained thermal performance.

Diagnostics and Maintenance Practices

Front-panel LEDs indicate each channel’s input signal status in real time. The system software provides detailed diagnostic information for troubleshooting. Replace the module promptly if the accuracy exceeds specification limits. Perform periodic verification using a precision calibrator. Keep calibration records for quality assurance and regulatory compliance.
