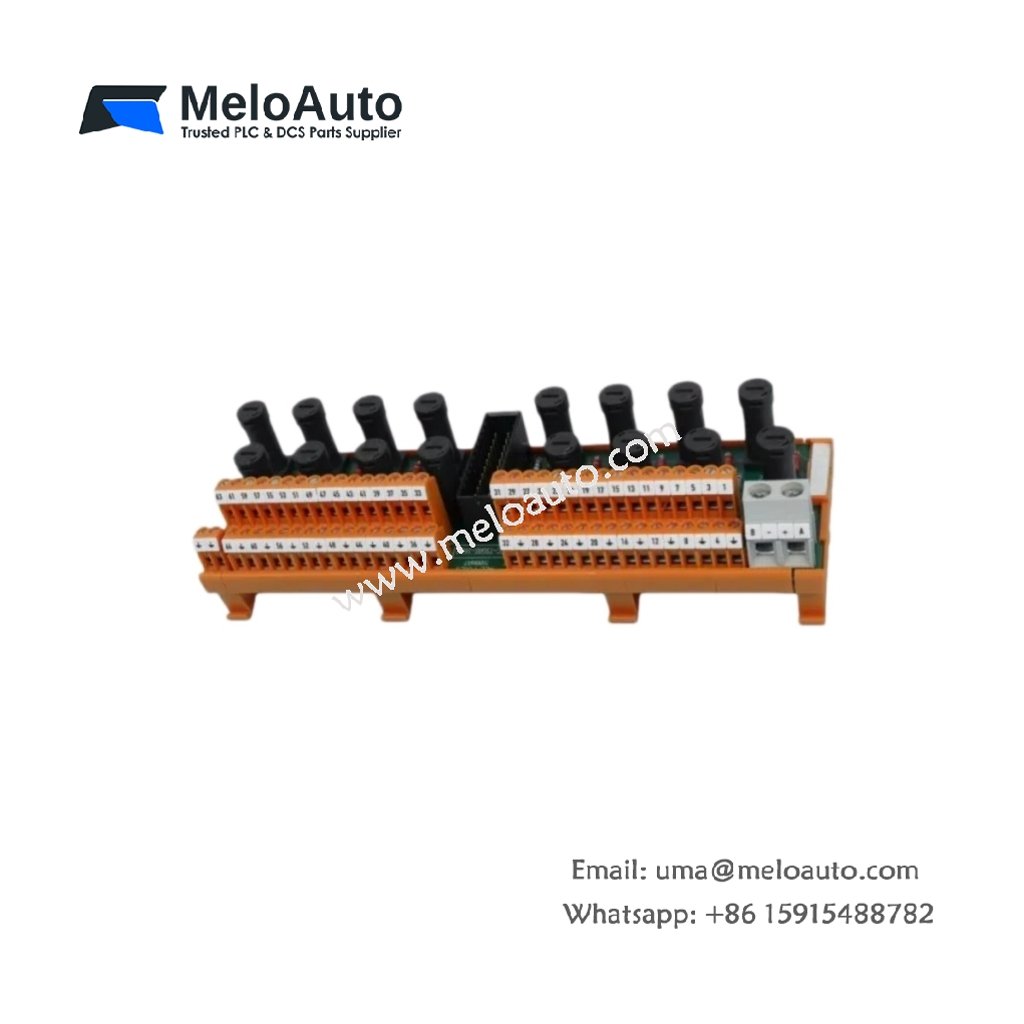

Honeywell FC-TSGAS-1624 Safe Digital Output Module

High-Density Outputs for Critical Shutdown Applications

The Honeywell FC-TSGAS-1624 provides sixteen fail‑safe digital output channels for driving field devices in safety instrumented systems. This module delivers 24 V DC outputs with diagnostic capabilities for each individual channel. It integrates seamlessly with Honeywell Safety Manager, FSC, and Experion PKS platforms . The FC-TSGAS-1624 supports both non‑redundant and redundant configurations for enhanced system availability. Its compact design and conformal coating ensure reliable performance in harsh industrial environments.

Output Specifications and Protection Features

Each output channel supplies up to 1 A current with a total current limit of 8 A across all channels . The module features integral short‑circuit protection and overcurrent shutdown for robust fault handling . Status LEDs for each channel provide immediate visual indication of output states and fault conditions . Additionally, the FC-TSGAS-1624 includes a read‑back feature that verifies actual output states against commanded values .

Technical Specifications

System Integration and Applications

This module connects to the controller via the system interconnection cable SICC-0001/Lx for reliable data exchange . The FC-TSGAS-1624 terminals accept wires up to 2.5 mm² (AWG 14) with a 7 mm strip length . You can install this module directly alongside other field termination assemblies within the same rack or cabinet . Typical applications include emergency shutdown (ESD) systems, fire and gas detection, burner management, and turbine control . Consequently, plant operators choose the FC-TSGAS-1624 for its robust output driving capability and comprehensive safety certifications .
