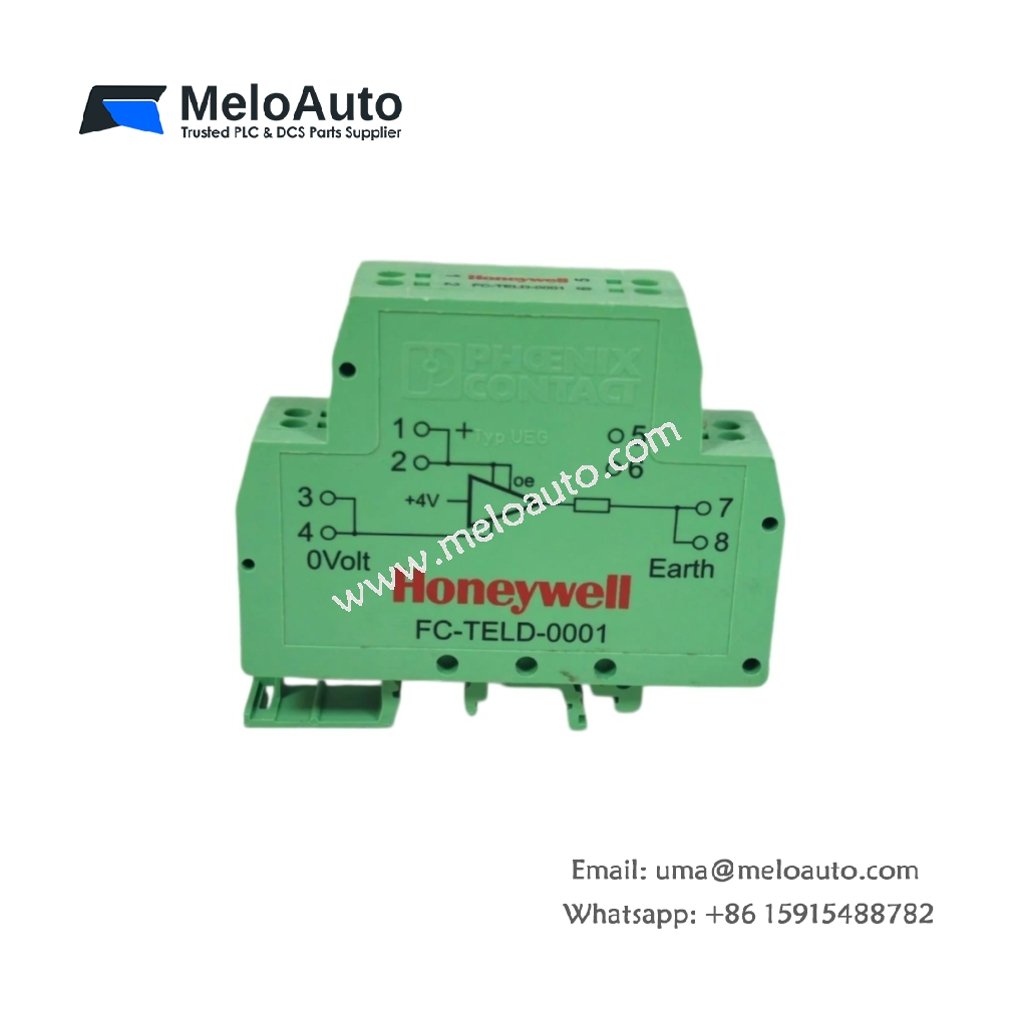

Honeywell FC-TELD-0001 Power Supply

High-Efficiency Power Conversion for Control Systems

The FC-TELD-0001 provides a regulated 24 VDC output for Honeywell Safety Manager and Experion PKS platforms. This power supply accepts a wide input range of 85–264 VAC or 110–370 VDC. It delivers up to 50 W of continuous output power with better than 87% efficiency. Consequently, this module ensures reliable power delivery for critical I/O and controller configurations.

Protection Features and Thermal Management

The FC-TELD-0001 includes comprehensive protection against overvoltage, overcurrent, and short-circuit conditions. A built-in active inrush current limiter prevents nuisance tripping of facility circuit breakers during startup. The module also features over-temperature protection that shuts down the output safely. The compact design utilizes natural convection cooling for silent operation in control rooms. The module also incorporates a DC OK status LED for quick visual confirmation.

Installation and Mounting Options

The FC-TELD-0001 mounts directly onto a 35 mm DIN rail for straightforward installation. The front-facing terminal block accepts solid or stranded wires from 14 to 26 AWG. This accessibility simplifies both field wiring and future maintenance activities. Additionally, the slim 45 mm width saves valuable space in control cabinets.

Technical Specifications

Parameter	Specification
Model	FC-TELD-0001
Category	Power Supply Module
Input Voltage	85–264 VAC, 110–370 VDC
Input Frequency	47–63 Hz
Output Voltage	24 VDC (±1%)
Output Current	2.1 A (50 W)
Efficiency	>87% at full load
Protection	OVP, OCP, SCP, OTP
Inrush Limiting	Active soft-start
Cooling	Natural convection
Status LED	DC OK indicator
Dimensions	90 x 75 x 45 mm
Weight	Approx. 0.3 kg
Mounting	35 mm DIN rail
Terminals	Screw blocks, 14–26 AWG
Operating Temp	–25°C to +70°C
Compliance	CE, UL, TÜV
