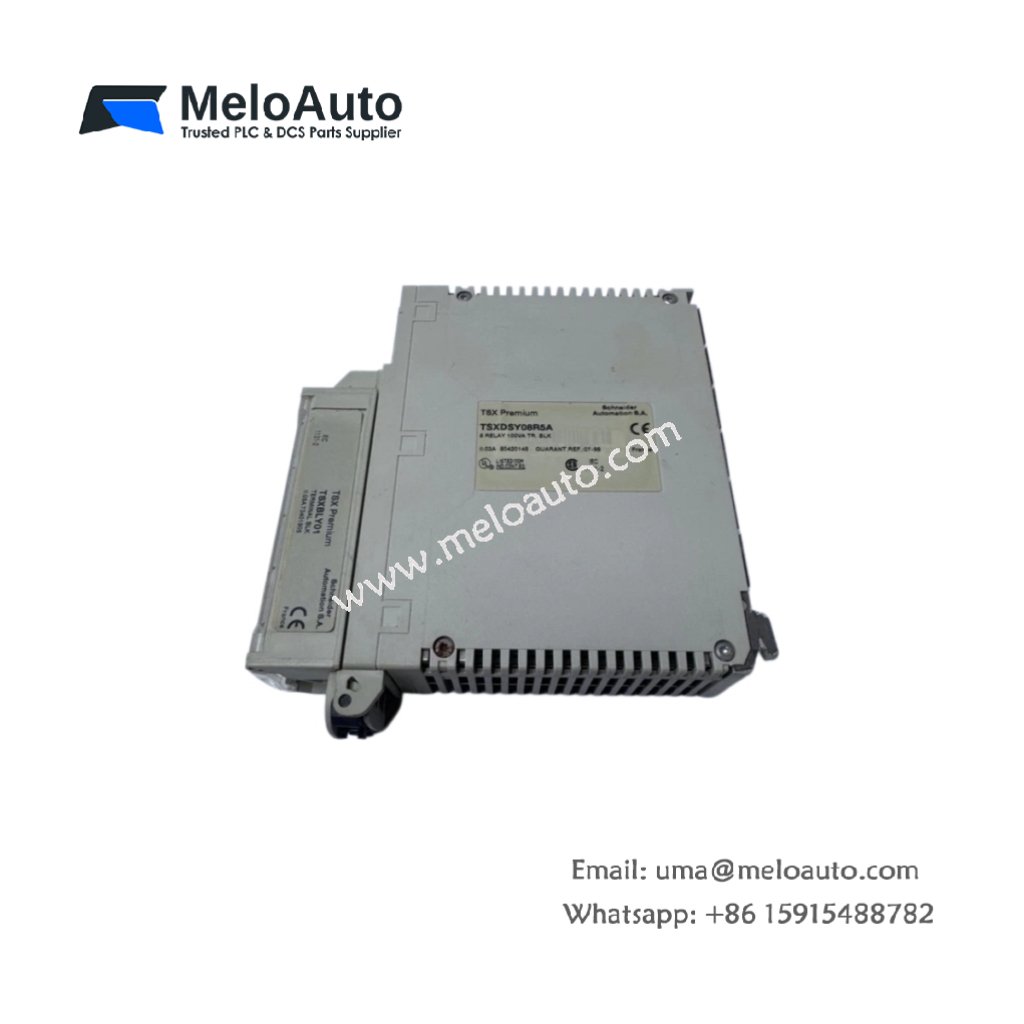

Schneider TSXDSY08R5A Discrete Output Module

Why This Output Module Fits Your TeSys U System

This discrete output module controls eight independent load channels. You get a reliable Schneider TSXDSY08R5A for Modicon TeSys U starters. It drives both AC and DC actuators directly from the controller. Therefore, you can eliminate external relay banks for many applications.

Technical Specifications and Physical Details

The Schneider TSXDSY08R5A provides eight solid-state output points. Each channel handles up to 0.5 amps of continuous current. The module fits neatly into a single TeSys U base slot. It measures approximately 75 mm in height and 30 mm in width. This lightweight unit weighs around 0.15 kg for easy mounting. The device stores no configuration energy internally. Instead, the master controller holds all output state settings. Consequently, you lose no critical data during a module swap.

Below is the detailed breakdown of the hardware specifications.

Installation and Wiring Notes

This module connects directly to solenoids, contactors, or indicator lamps. You must observe polarity for DC loads only. The TSXDSY08R5A features removable screw terminals for each channel. Therefore, field wiring becomes faster and more organized. Always verify the total load before powering the system. Overloading any single output will trigger the module’s thermal protection.
