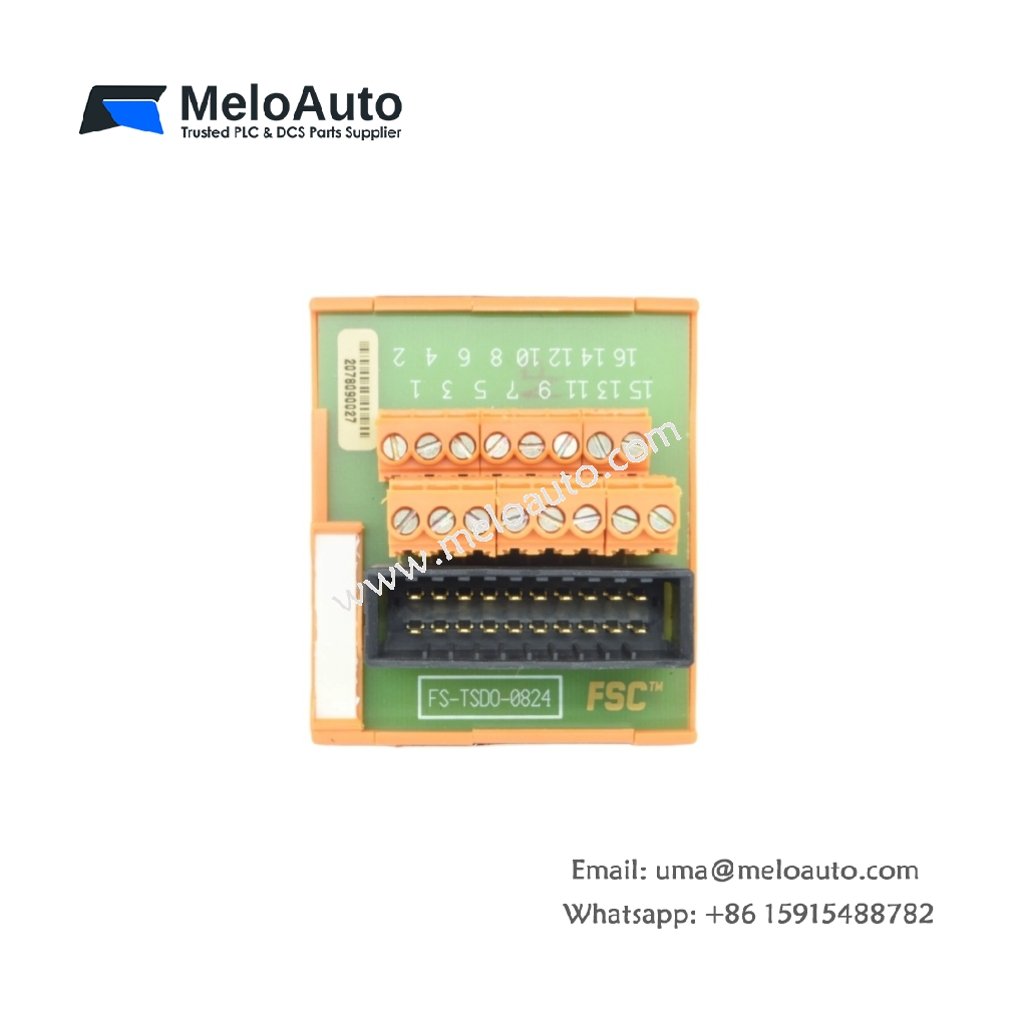

Honeywell FS-TSDO-0824 Safe Digital Output FTA

Technical Overview of the FS-TSDO-0824 Module

The FS-TSDO-0824 functions as a field termination assembly for Honeywell safety systems. This module creates the physical interface between system interconnection cables and external field wiring . It supports up to eight digital output channels and operates nominally at 24 VDC. Consequently, it is a crucial component for managing safe digital outputs in process automation.

Robust Design and Safety Compliance

This assembly features a universal snap-in mechanism for standard DIN EN rails, which simplifies installation . Additionally, its fail-safe design ensures that a fault condition forces outputs to a predetermined safe state. The FS-TSDO-0824 meets rigorous international standards and holds approvals including CE, TUV, UL, CSA, and FM . Therefore, it provides reliable performance even in demanding industrial environments.

Key Technical Specifications

Parameter	Specification
Model	FS-TSDO-0824
Category	Safe Digital Output FTA
Channels	8
Nominal Voltage	24 VDC
Max. Voltage	36 VDC (IEC 1010, Overvoltage Cat. 3)
Max. Current per Channel	1.5 A
Dimensions (D x W x H)	60 mm x 70 mm x 58 mm
Weight	Approx. 1.0 kg
Mounting	DIN EN Rail (TS32 / TS35 x 7.5)
Terminals	Screw terminals, 2.5 mm² (AWG 14)
Compliance	CE, TUV, UL, CSA, FM

Connectivity and Practical Application

The module connects to the host system via the SIC-C-12 or SICC-0001/Lx interconnection cables . Moreover, its screw terminals accommodate field conductors up to 2.5 mm² (AWG 14) with a tightening torque of 0.5 Nm . This straightforward termination process helps reduce wiring complexity and cabinet space. Ultimately, the FS-TSDO-0824 is ideal for critical applications such as Emergency Shutdown (ESD) and Fire & Gas (F&G) systems.
