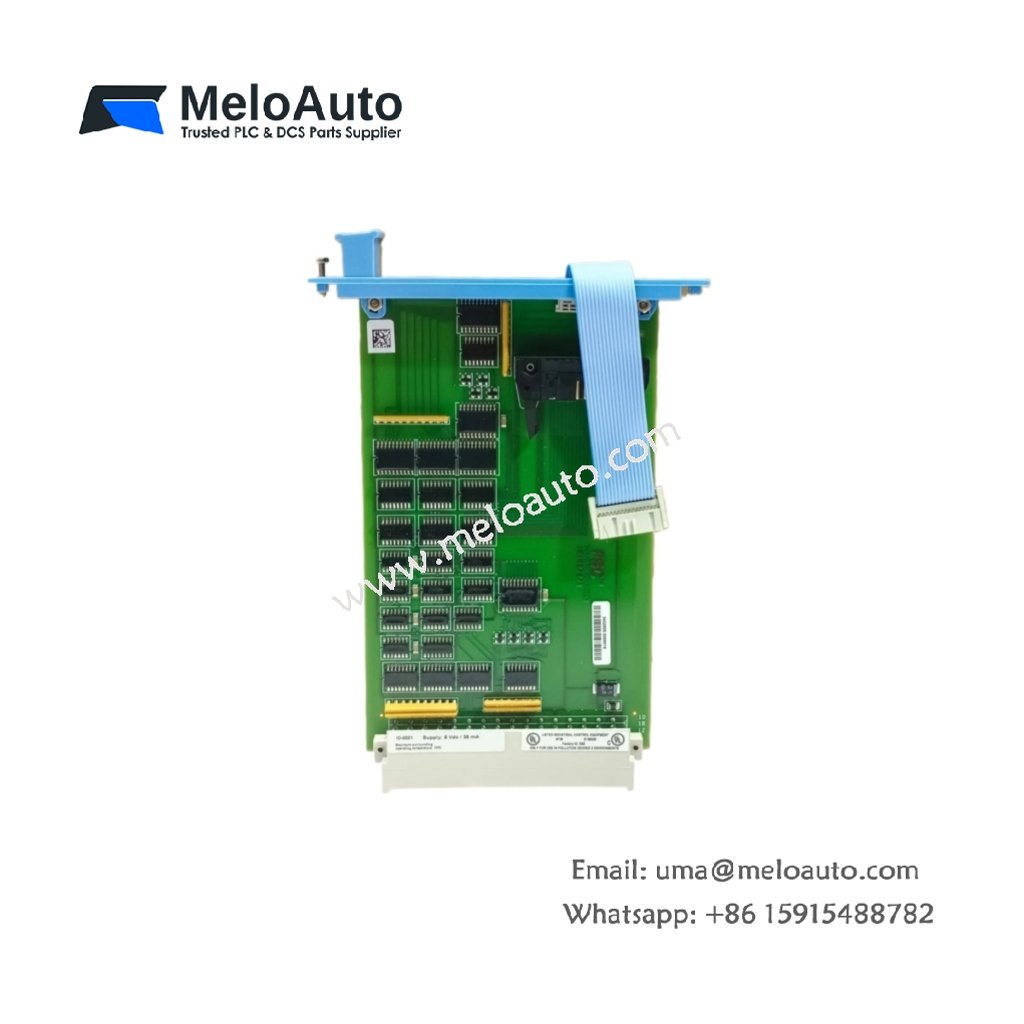

Honeywell FC-IO-0001 Digital Input Module

This digital input module provides a cost-effective solution for monitoring field contact status. The FC-IO-0001 accepts signals from a wide range of field devices, including switches, pushbuttons, and proximity sensors. Its versatile design supports both sink and source wiring configurations. This unit simplifies integration with Honeywell control platforms through standard backplane connections.

Input Characteristics and Electrical Specifications

The FC-IO-0001 offers sixteen digital input channels with individual LED status indicators. Each channel accepts 24V DC signals with a typical input current of 7mA. The module filters input signals to eliminate contact bounce and electrical noise. Additionally, the built-in input delay can be configured from 3ms to 20ms for flexible tuning.

Parameter	Specification
Model Number	FC-IO-0001
Product Type	Digital Input Module
Number of Channels	16 inputs
Nominal Voltage	24V DC (18-30V operating range)
Input Current	7mA typical
Input Type	Sink or source configurable
Signal Filtering	Configurable 3-20ms input delay
Isolation	1500V between field and backplane
Status Indicators	Green LEDs per channel
Power Dissipation	3.5W maximum
Mounting Type	Standard DIN rail

Physical Dimensions and Installation Details

The FC-IO-0001 measures 130mm wide, 100mm high, and 65mm deep. This input module weighs approximately 0.5 kilograms and mounts securely on standard DIN rails. The front panel provides a removable 18-pin terminal block for all field wiring connections. Each input terminal clearly marks its positive and negative connections. Furthermore, the housing features a compact design that maximizes available cabinet space.

Energy Storage and Power Consumption

This input module draws a maximum of 3.5 watts from the system backplane. The FC-IO-0001 does not contain any batteries or supercapacitors for energy storage. Instead, the module relies entirely on the control system power supply for its operation. The efficient design eliminates the need for active cooling mechanisms. Consequently, this module operates silently and requires minimal maintenance over its service life.

System Integration and Diagnostic Features

The FC-IO-0001 integrates seamlessly with Honeywell S300, Experion, and Safety Manager platforms. You can configure this module using standard Honeywell engineering tools for fast deployment. The module supports hot-swapping for easy replacement without system shutdown. Therefore, this digital input module provides a dependable solution for general-purpose discrete monitoring applications.
