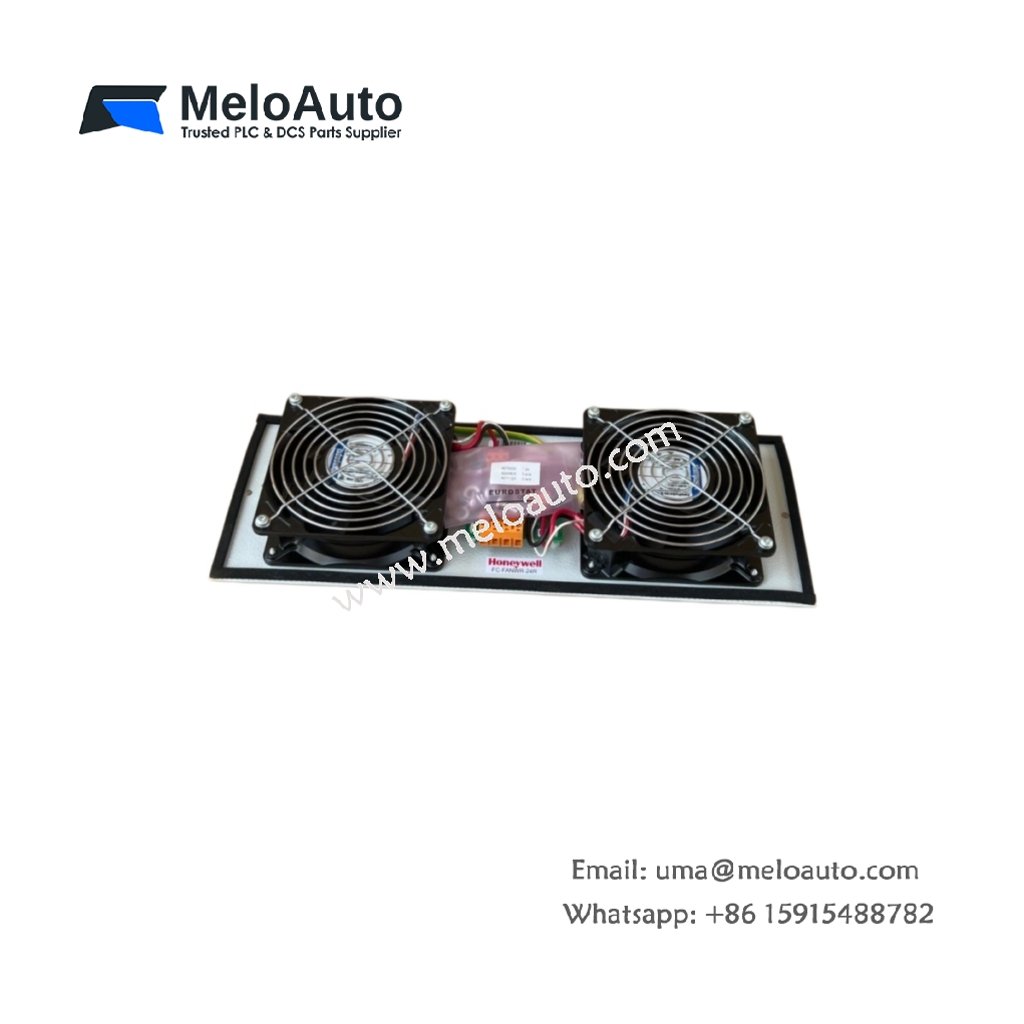

Honeywell FC-FANWR-24R Fan Assembly Kit

This fan assembly kit provides active cooling for Honeywell control cabinets and enclosures. The FC-FANWR-24R delivers consistent airflow to maintain optimal operating temperatures for sensitive electronics. Its compact design fits seamlessly into existing rack systems without requiring extensive modifications. This unit effectively prevents thermal-related failures and extends the service life of critical components.

Airflow Performance and Electrical Ratings

The FC-FANWR-24R generates an airflow rate of 85 cubic feet per minute at maximum speed. This fan assembly operates on a 24V DC power supply with a current draw of 0.65 amps. The unit uses a brushless DC motor, which significantly reduces mechanical wear over time. Moreover, the integrated speed control allows you to adjust airflow based on actual thermal demands.

Parameter	Specification
Model Number	FC-FANWR-24R
Product Type	Fan Assembly Kit
Power Supply	24V DC nominal (18-30V range)
Current Draw	0.65A maximum
Airflow Rate	85 CFM (cubic feet per minute)
Fan Speed	3200 RPM adjustable
Motor Type	Brushless DC
Noise Level	42 dBA typical
Bearing Type	Dual ball bearings
Connector	4-pin Molex with tachometer output

Physical Dimensions and Kit Contents

The FC-FANWR-24R measures 120mm by 120mm by 38mm, making it compatible with standard 4U rack spaces. This fan weighs approximately 0.8 kilograms and comes with all necessary mounting hardware. The kit includes the main fan unit, four mounting screws, and a wiring harness with pre-crimped terminals. Additionally, you will find a finger guard and foam gasket for vibration dampening. The package also contains an installation guide with clear step-by-step instructions.

Energy Consumption and Thermal Management

This fan assembly consumes a maximum of 15.6 watts under full-speed operation. It does not incorporate any batteries or energy storage components for backup power. Instead, the FC-FANWR-24R relies entirely on the system power supply for continuous operation. The dual ball bearing design ensures reliable performance even in high-temperature environments. Consequently, this unit maintains consistent cooling throughout its extended operational lifespan.

Installation and System Compatibility

The FC-FANWR-24R fits most Honeywell cabinets that use standard fan mounting patterns. You can install this kit in either exhaust or intake orientation, depending on your enclosure’s airflow requirements. The tachometer output provides real-time speed monitoring for predictive maintenance purposes. Therefore, this fan assembly serves as an ideal replacement unit for existing cooling systems or as an upgrade for enhanced thermal performance.
