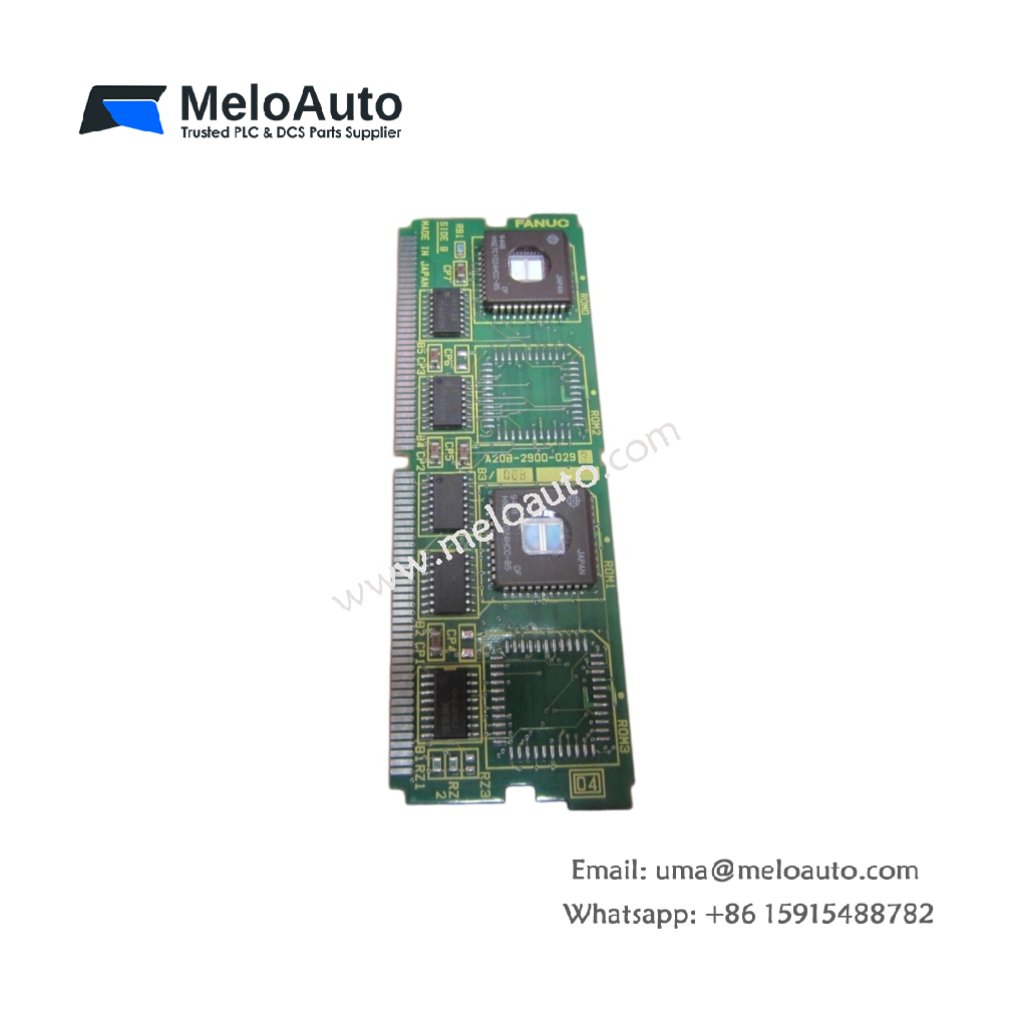

GE A20B-2900-0293/06B Memory Module

This memory module stores part programs, tool offsets, and system parameters. It expands the non-volatile storage capacity of your GE CNC controller. You can install this board directly into a dedicated memory slot. The unit retains all data even after a complete power loss.

Technical Specifications & Key Parameters

Parameter	Detail
Product Model	GE A20B-2900-0293/06B
Category	Memory Module
Dimensions (L x W)	170 mm x 120 mm
Weight	0.21 kg (0.46 lbs)
Memory Type	Static RAM (SRAM) with battery backup
Storage Capacity	512 kB (expands CNC part program storage)
Number of ICs	8 memory chips, 2 address decoders, 4 capacitors
Energy Storage	Lithium battery (BR-2/3A, 3V, 1200 mAh)
Battery Life	5 years typical under normal operation
Energy Capacitors	Four 100 µF capacitors (filtering and hold-up)
Operating Voltage	5V DC from backplane
Current Draw	120 mA at 5V DC
Data Retention	Unlimited with battery, 10 seconds without battery
Connector Type	One 50-pin edge connector
Write Protection	Hardware jumper (prevents accidental overwrites)

Detailed Feature Overview

GE A20B-2900-0293/06B adds 512 kB of non-volatile storage to your CNC system. This capacity holds hundreds of part programs and macro routines. The module uses static RAM technology for fast read and write access. A lithium battery preserves all data when the CNC powers down. Consequently, you never lose programs or offsets during shutdowns.

Eight memory chips provide the 512 kB storage array. Two address decoder ICs manage memory mapping within the CNC address space. Four 100 µF capacitors filter electrical noise from the power supply. These capacitors also provide 10 seconds of hold-up time during battery changes. Therefore, you can replace the battery without losing stored data.

Write Protection and Data Security

A hardware jumper prevents accidental program overwrites or deletions. Install the jumper to enable write protection for critical data. Remove the jumper to allow normal program saving and editing. The module also includes a low-battery warning LED. This amber light alerts you when battery voltage drops below 2.7 V.

Installation and Physical Details

The module weighs only 0.21 kg for simple handling. Insert the edge connector firmly into the dedicated memory slot. Secure the board with two retaining screws. No external wiring or configuration switches are necessary. Operating temperature ranges from 0°C to 55°C reliably. Store the module between -20°C and 65°C for long-term preservation. Keep humidity below 90% without condensation to prevent corrosion.
