Core Functionality and System Role

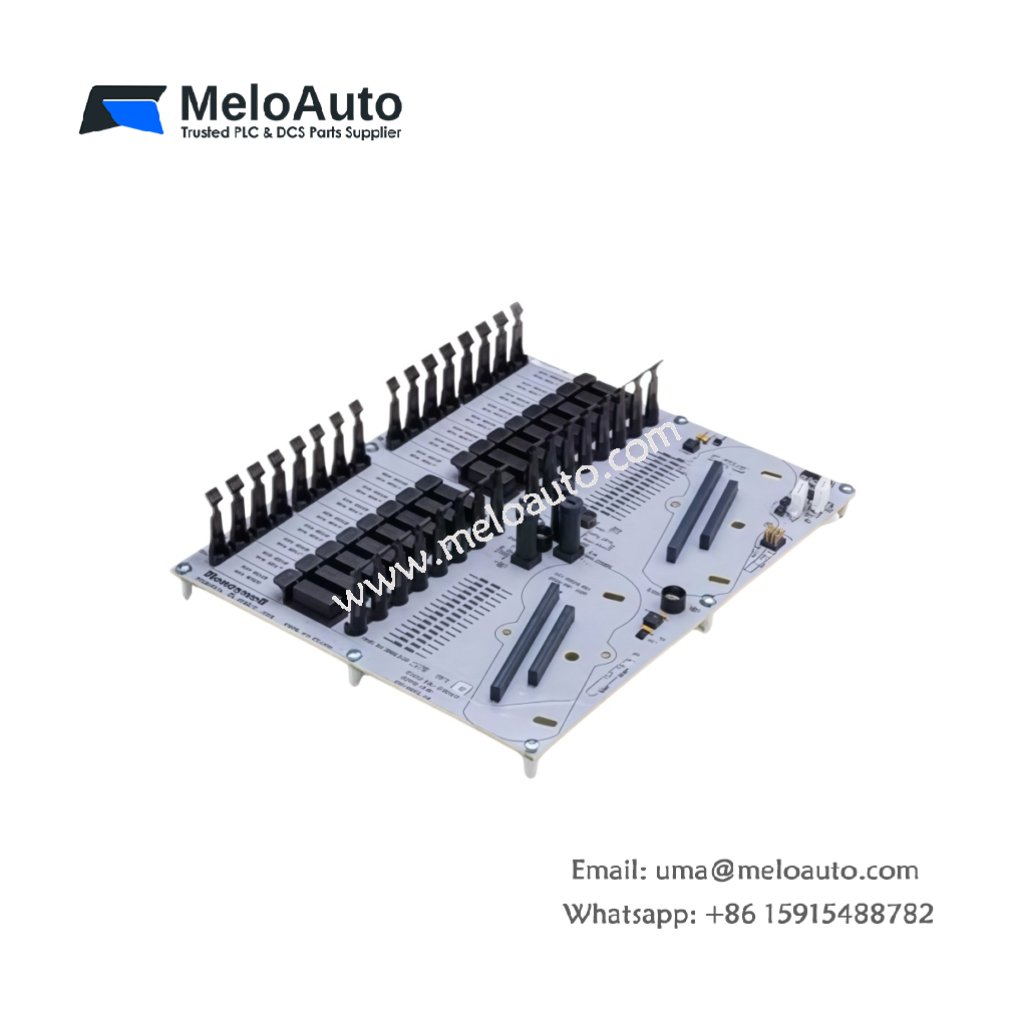

The Honeywell CC-GDIL11 digital input module acquires discrete 24 VDC field signals for the Experion PKS and C300 control systems. This module provides 16 isolated channels for monitoring switches, sensors, and relay contacts reliably. Its Galvanically Isolated and Intrinsically Safe design makes it suitable for hazardous area installations. Furthermore, the module supports redundant configurations for mission-critical applications.
Technical Specifications
The following table details the core technical parameters for the Honeywell CC-GDIL11:
| Parameter | Specification |
|---|---|
| Model Number | CC-GDIL11 |
| Product Type | Digital Input GI/IS IOTA Module |
| System Compatibility | Experion PKS, C300 Controller |
| Input Channels | 16 isolated digital points |
| Nominal Input Voltage | 24 VDC (18-30 VDC range) |
| ON Threshold | ≥ 15 VDC |
| OFF Threshold | ≤ 5 VDC |
| Input Impedance | 4.7 kΩ |
| Input Current | 7-10 mA per channel @ 24VDC |
| Response Time | 1 ms to 100 ms (configurable) |
| Isolation Voltage | 1500 VDC |
| Power Consumption | 1.2 W typical (full load) |
| Dimensions (W × H × D) | 3.2 × 12.7 × 12.7 cm |
| Weight | 0.2 kg |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Communication Interface | RS-485 with Modbus RTU |
| Certifications | UL, CSA, CE, ATEX, IECEx |
Design and Protection Features
The Honeywell CC-GDIL11 features galvanic isolation that protects the control system from field-side electrical surges. Its on-board excitation power eliminates the need for external marshalling power. The module supports hot-swap capability, which allows replacement without system shutdown. Per-channel LED indicators provide real-time status for quick diagnostics. The rugged design also withstands vibration and temperature extremes in harsh industrial environments.
System Compatibility and Use Cases
The Honeywell CC-GDIL11 integrates with Experion PKS C300 controllers and Series C I/O architecture. It supports SIL2 and SIL3 safety configurations for critical Fire and Gas systems. Typical applications include process interlocks, safety monitoring, and discrete signal detection in oil and gas, chemical processing, and power generation facilities. Users should pair this module with compatible IOTA for proper installation.
