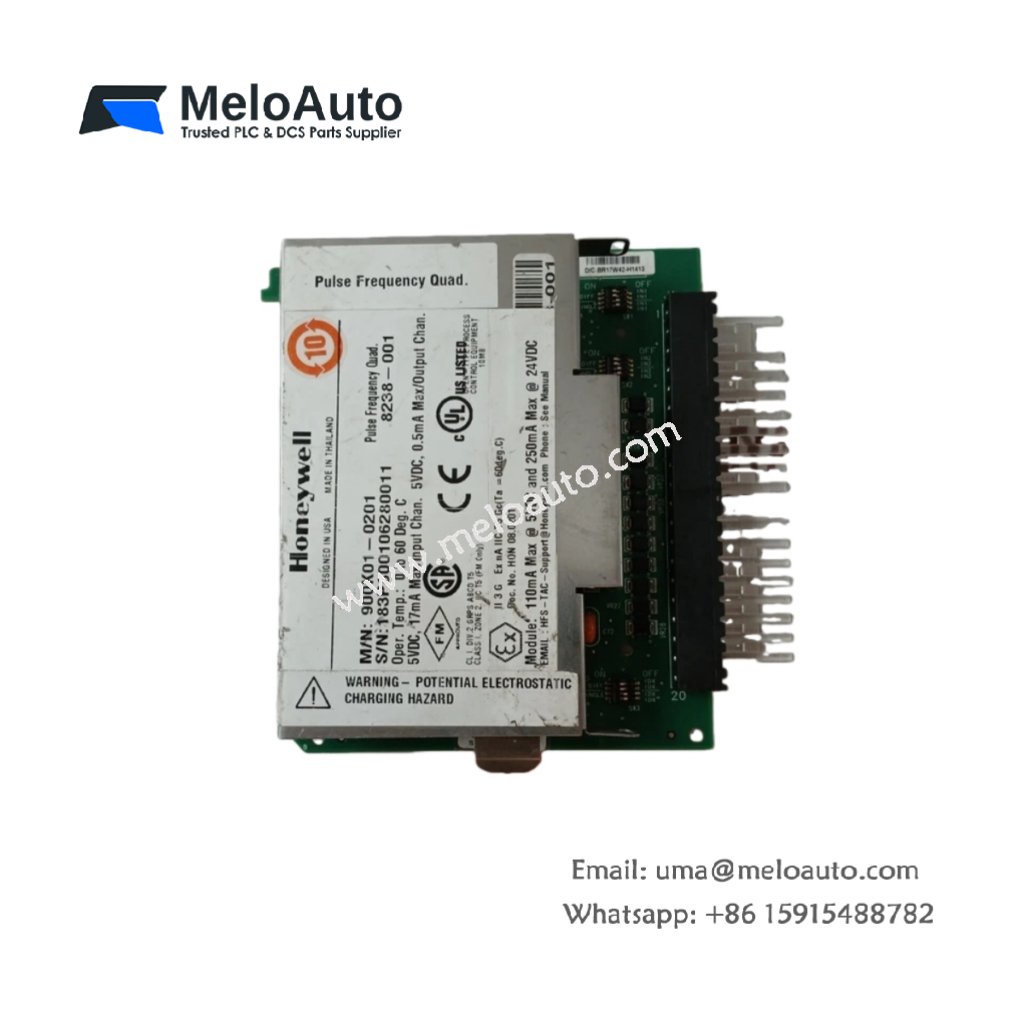

Honeywell 900K01-0201 Quadrature Module

The Honeywell 900K01-0201 Quadrature Module is a high-performance card designed to handle pulse and frequency signals efficiently. This module is perfect for applications requiring precise quadrature encoding and control, offering excellent versatility for industrial automation.

Key Features of the Honeywell 900K01-0201 Quadrature Module

4-Channel Operation: It supports up to four channels, enabling simultaneous signal processing for more complex tasks.
High Accuracy: Provides a reliable response with 10 ms timing and a maximum current of 30 mA.
Wide Voltage Range: Operates effectively across a 0-24 VDC input voltage range for various industrial setups.
Compact Design: Designed as a quad card, the 900K01-0201 fits easily into control systems with limited space.
Seamless Integration: Ideal for ControlEdge applications, ensuring smooth integration into Honeywell automation systems.

Technical Specifications for Honeywell 900K01-0201

Parameter	Specification
Manufacturer	Honeywell
Model Number	900K01-0201
Product Type	Quadrature Module
Product Series	ControlEdge
Channels	4 channels
Input Voltage	0-24 VDC
Current	Maximum 30 mA
Response Time	10 ms
Dimensions (in.)	3.5 in. x 5.5 in. x 1 in.
Dimensions (mm)	89 mm x 140 mm x 25.4 mm
Weight	0.5 lb (0.23 kg)
Mounting Type	Quad Card
Approval	CE Compliant

Description

The Honeywell 900K01-0201 Quadrature Module is designed to manage pulse and frequency signals in industrial control systems. Its four channels allow for efficient processing of multiple signals at once, ideal for complex automation processes.

With a 10 ms response time, this module ensures that your systems run with high accuracy and minimal delay. The maximum current output of 30 mA further enhances the 900K01-0201’s ability to perform under demanding conditions.

This ControlEdge-compatible module operates within a 0-24 VDC voltage range, providing flexibility for a variety of industrial setups. Its compact quad card design makes it a suitable choice for applications with space constraints.

Application Benefits

Improved System Efficiency: The 900K01-0201 ensures precise quadrature encoding and signal control, optimizing your system’s performance.
Flexible Voltage Range: Works within a 0-24 VDC range, making it adaptable to different voltage setups.
Compact and Reliable: The small yet powerful design delivers superior performance without compromising space or reliability.

Conclusion

For industrial applications requiring precise signal management, the Honeywell 900K01-0201 Quadrature Module is an essential component. Its 4-channel design, fast response time, and wide voltage compatibility ensure that it meets the rigorous demands of modern control systems. Whether for pulse frequency control or quadrature encoding, this module offers reliability and flexibility.
