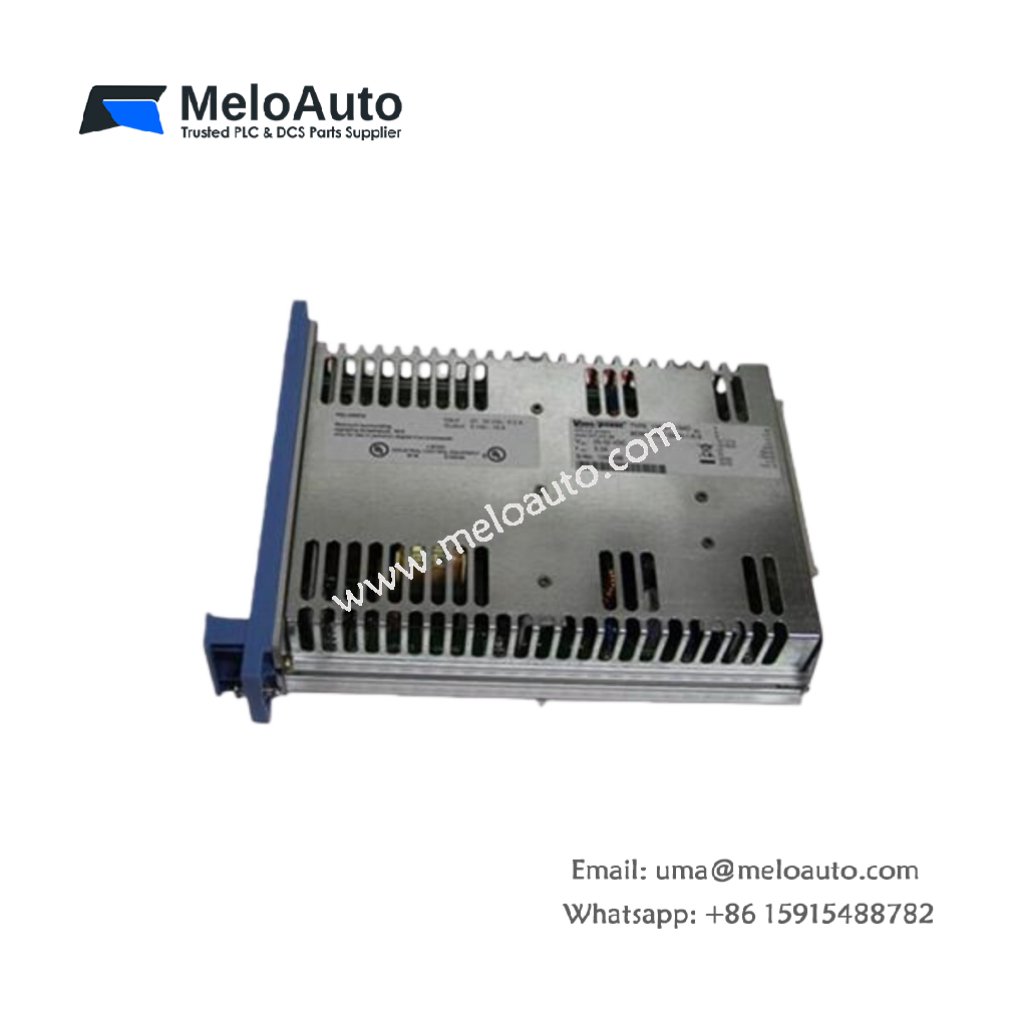

Honeywell 10310/1/1 Earth Leakage Detector

The Honeywell 10310/1/1 Earth Leakage Detector (ELD) efficiently monitors earth leakage in 24 VDC systems. It includes essential features like a manually operated self-test and an earth connection monitor. Additionally, it supports 48 VDC and 60 VDC supplies with a common 0 V rail, making it highly adaptable for various industrial needs.

Key Features of the Honeywell 10310/1/1 Earth Leakage Detector

Self-Test Capability: The ELD has an easy-to-activate self-test feature, ensuring constant system reliability.
Earth Fault Monitoring: It continuously monitors earth voltage and detects any fault thresholds, providing real-time alerts when leakage occurs.
Multiple Connection Modes: The module allows selection between continuous or interrupting modes, ensuring flexibility across applications.
Fault Location: By using the 1/4 Hz mode, the module enables accurate fault location with a current clamp and voltmeter.
LED Indicators: When in interrupting mode, the green “MODE” LED flashes to indicate the active frequency, simplifying monitoring.

Applications of the Honeywell 10310/1/1

Industrial Automation: This ELD is perfect for systems requiring constant monitoring of earth leakage in 24 VDC and 48 VDC control setups.
Power Supply Monitoring: It detects earth faults in power supplies, helping prevent equipment damage and maintaining safety.
Fault Detection: The module immediately identifies and locates earth faults, ensuring system integrity and avoiding operational risks.

Technical Specifications

Specification	Value
Model	10310/1/1
Type Number	10310/1/1 09700
Approvals	CE
Power Supply Voltage	24 VDC (maximum 30 VDC)
Supply Current	Maximum 6 mA
Reset Input Voltage	18 VDC to 70 VDC
Reset Input Current	1.1 mA at 24 VDC
Earth Voltage	-12 VDC (no earth fault)
	-30 to +70 VDC (earth fault detected)
Earth Fault Threshold	5.5 mA (+1 mA)
Maximum Earth Current	25.0 mA (+5 mA)
Tightening Torque of Earth Connections	1 Nm (0.74 ft-lb)
Dimensions	70 x 45 x 110 mm (L x W x H)
	2.76 x 1.77 x 4.33 in (L x W x H)
DIN EN Rails	TS35 x 7.5
Maximum Rail Length	46 mm (1.81 in)
Maximum Output Voltage	115 VDC
Maximum Output Current	2 A
Relay Contact Initial Resistance	30 mΩ
Maximum Current (Relay Contact)	5 A
Maximum Switched Voltage	250 VDC / 250 VAC
Maximum Switched Load	100 W / 1000 VA
Expected Life (Electrical)	100,000 switch operations
Expected Life (Mechanical)	200,000,000 switch operations
Operating Temperature	-55°C to +65°C (-67°F to +149°F)

Ambient Conditions

Operating Temperature: -55°C to +65°C (-67°F to +149°F)
Humidity: Operates efficiently in varying environmental conditions, providing long-term reliability.

Operating Modes and Features

Self-Test: The self-test function can be activated by simply flipping the switch to the “TEST” position, allowing you to check the system’s integrity.
Connection Modes: Select between continuous or interrupting modes depending on your operational requirements.
- Interrupting Modes: Use the 1 Hz or 1/4 Hz modes for specific fault detection scenarios.
LED Indicators: The green “MODE” LED flashes to indicate the active frequency during interrupting mode, simplifying the operation process.

With its robust design and versatile features, the Honeywell 10310/1/1 Earth Leakage Detector ensures continuous and reliable earth fault monitoring. Its self-test, fault detection, and earth fault locating functions make it an essential tool for maintaining safe and efficient industrial operations.
