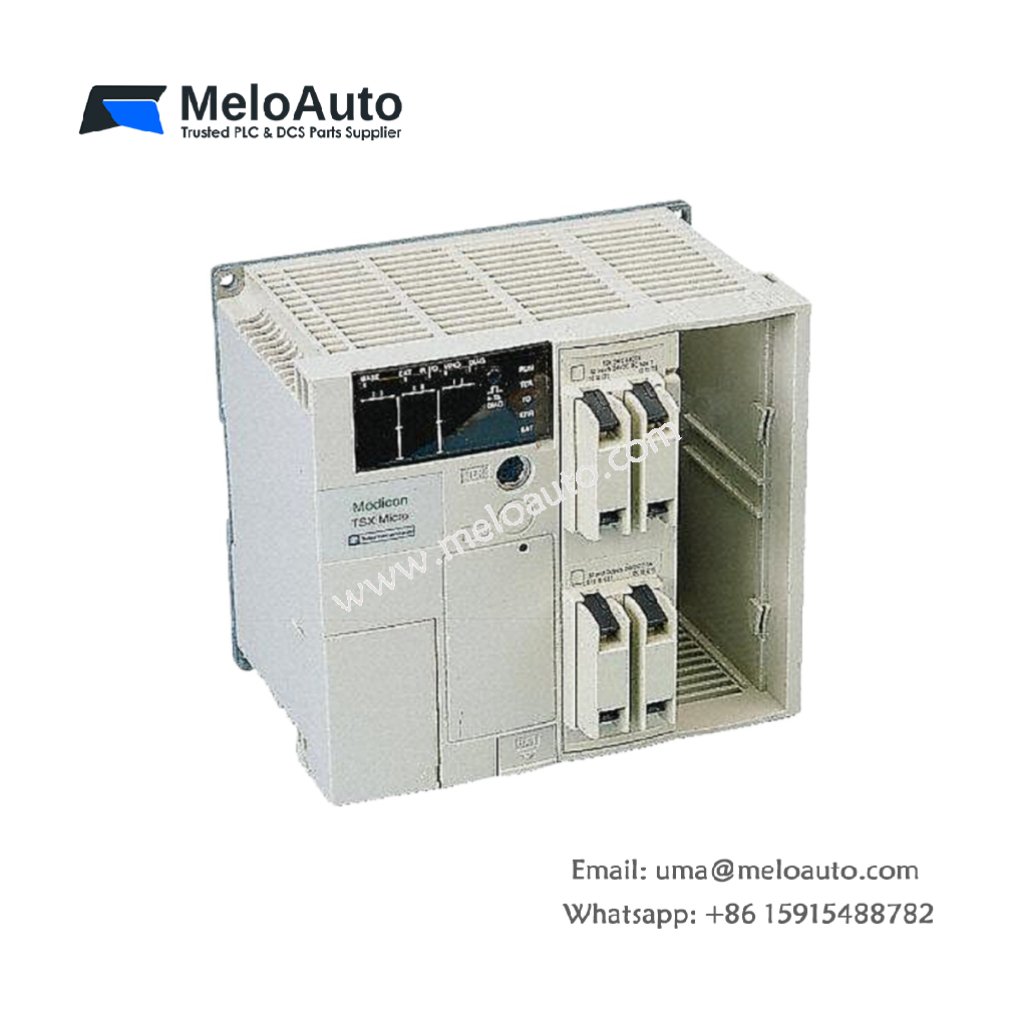

Schneider TSX3710028AR1 Modicon TSX Micro 37 10 PLC

The Schneider TSX3710028AR1 is a programmable logic controller (PLC) designed for the Modicon TSX Micro 37 10 series. Manufactured by Schneider Electric, this compact yet powerful controller is ideal for a wide range of automation applications. Its advanced features and flexible specifications ensure reliable performance in both simple and complex control systems.

Key Features of Schneider TSX3710028AR1

• Number of Slots: 2
• Module Type: Screw terminal discrete I/O
• Discrete Inputs: 16 inputs at 115V AC
• Discrete Outputs: 12 relay outputs
• Communication Ports:
  • 1 serial link (Uni-Telway, 19.2 kbit/s)
  • 1 Modbus RTU (19.2 kbit/s)
• Memory:
  • 14 Kwords internal RAM (data)
  • 15 Kwords flash memory (data)
• Execution Time:
  • 0.25 μs for Boolean instructions (without PCMClA card)
  • 4.81 μs for arithmetic REAL floating-point instructions (without PCMClA card)
• Application Structure:
  • 8 event tasks
  • 1 master task
  • 1 fast task
• Operating Temperature Range: 0°C to 60°C
• Mounting Type: DIN Rail Mountable

Technical Specifications for Schneider TSX3710028AR1

Product Description

The Schneider TSX3710028AR1 is a highly efficient programmable logic controller (PLC) designed for precise control in automation systems. The unit features 2 slots, allowing for the integration of multiple modules to extend its functionality. It supports 16 discrete inputs at 115V AC, enabling reliable signal acquisition, and offers 12 discrete relay outputs for controlling connected devices.

Equipped with memory capabilities, the TSX3710028AR1 has 14 Kwords of internal RAM and 15 Kwords of flash memory for storing data. Its fast execution time—as quick as 0.25 μs for Boolean instructions and 4.81 μs for arithmetic instructions—ensures rapid processing, which is crucial for time-sensitive applications.

In terms of communication, the TSX3710028AR1 supports 1 serial link (Uni-Telway) and 1 Modbus RTU, both operating at 19.2 kbit/s, making it highly compatible with a wide range of industrial communication networks.

This controller is designed to handle complex tasks with its robust application structure, featuring 8 event tasks, 1 master task, and 1 fast task. It also operates reliably within a wide temperature range, from 0°C to 60°C, ensuring stable performance in diverse environments.

The compact design of the TSX3710028AR1 (measuring 282.7 mm x 151 mm x 152 mm) makes it easy to integrate into systems using DIN rail mounting. With a weight of 1.91 kg, it is both lightweight and durable, providing optimal flexibility and efficiency for industrial control applications.
