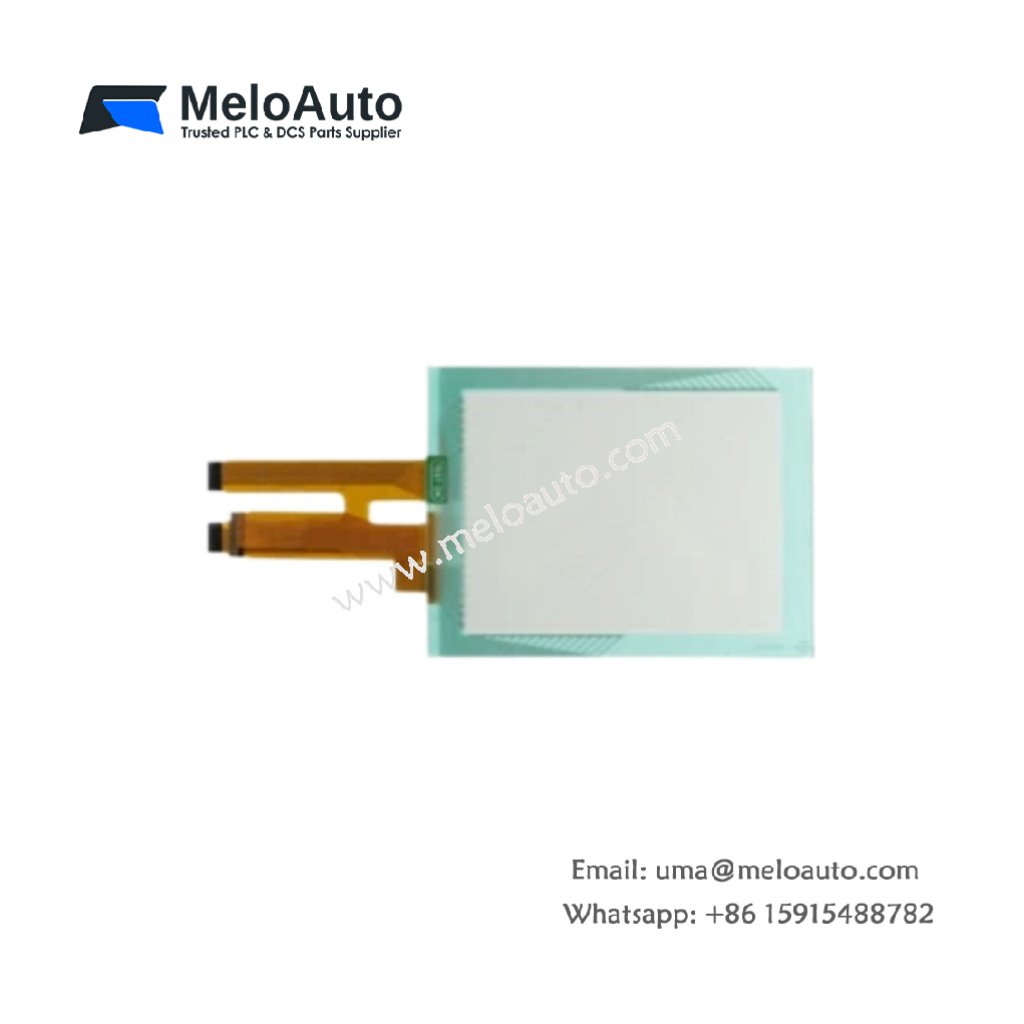

GE QPI-CTDE-0000 Touch Screen | 7" PCAP HMI

The QPI-CTDE-0000 operates as a high-performance touch screen for GE industrial HMI systems. This unit displays real-time process data on its vibrant color LCD panel. It accepts operator inputs through a responsive projected capacitive touch sensor. Therefore, this touch screen enables intuitive machine control without physical buttons.

Technical Specifications

We engineered this touch screen for demanding industrial environments. Its slim bezel design fits into standard panel cutouts with minimal clearance. Moreover, the unit includes multiple communication ports for seamless PLC connectivity.

Parameter	Specification
Dimensions (W x H x D)	9.8 x 7.6 x 1.9 inches (249 x 193 x 48 mm)
Panel Cutout (W x H)	9.2 x 7.0 inches (234 x 178 mm)
Weight	1.1 kg (2.4 lbs)
Display Size	7.0 inches diagonal (178 mm)
Display Type	TFT LCD with LED backlight
Resolution	800 x 480 pixels (WVGA)
Color Depth	16.7 million colors (24-bit)
Touch Technology	Projected capacitive (PCAP)
Touch Points	2-finger gesture support
Communication Ports	2x Ethernet, 2x USB, 1x RS-232
Input Voltage	24V DC nominal (18-32V DC)
Power Consumption	12 W typical
Operating Temperature	-10°C to 55°C (14°F to 131°F)

Display Characteristics and Visibility

The QPI-CTDE-0000 features a 7-inch TFT LCD with wide viewing angles. LED backlighting provides 400 cd/m² brightness for clear visibility. The display resists glare and remains readable under direct shop lighting. Consequently, operators can monitor process values without straining their eyes.

Touch Sensor Design and Responsiveness

This touch screen uses projected capacitive technology for superior touch detection. The sensor responds to light touches even through protective gloves. Two-finger gestures allow pinch-to-zoom and rotate functions on supported screens. Therefore, operators can interact with complex graphics as easily as a tablet device.

Communication Capabilities

The QPI-CTDE-0000 features two independent Ethernet ports for network redundancy. USB ports support firmware updates and data logging to external drives. The RS-232 port connects to legacy PLC systems without additional converters. Consequently, this touch screen integrates easily into both new and existing automation networks.

Memory and Data Storage

This touch screen includes 512 MB of non-volatile flash memory for application storage. It provides 256 MB of RAM for runtime operation and caching. The unit retains all screen data during complete power loss automatically. No battery backup is necessary for application or configuration retention.

Energy Storage and Power Interruption

The QPI-CTDE-0000 contains internal capacitors for brief power ride-through. These capacitors maintain operation for up to 50 milliseconds during voltage dips. The unit performs an orderly shutdown during extended power interruptions. No lithium battery exists on this device for real-time clock or data retention.

Installation and Mounting

Mount the QPI-CTDE-0000 into a standard panel cutout using the included clips. Apply the supplied gasket to achieve NEMA 4X water resistance at the front. Connect 24V DC power to the rear terminal block with 18 AWG wire. Download your application via Ethernet or USB before placing the unit into service. Calibrate the touch sensor during initial commissioning for optimal accuracy.
