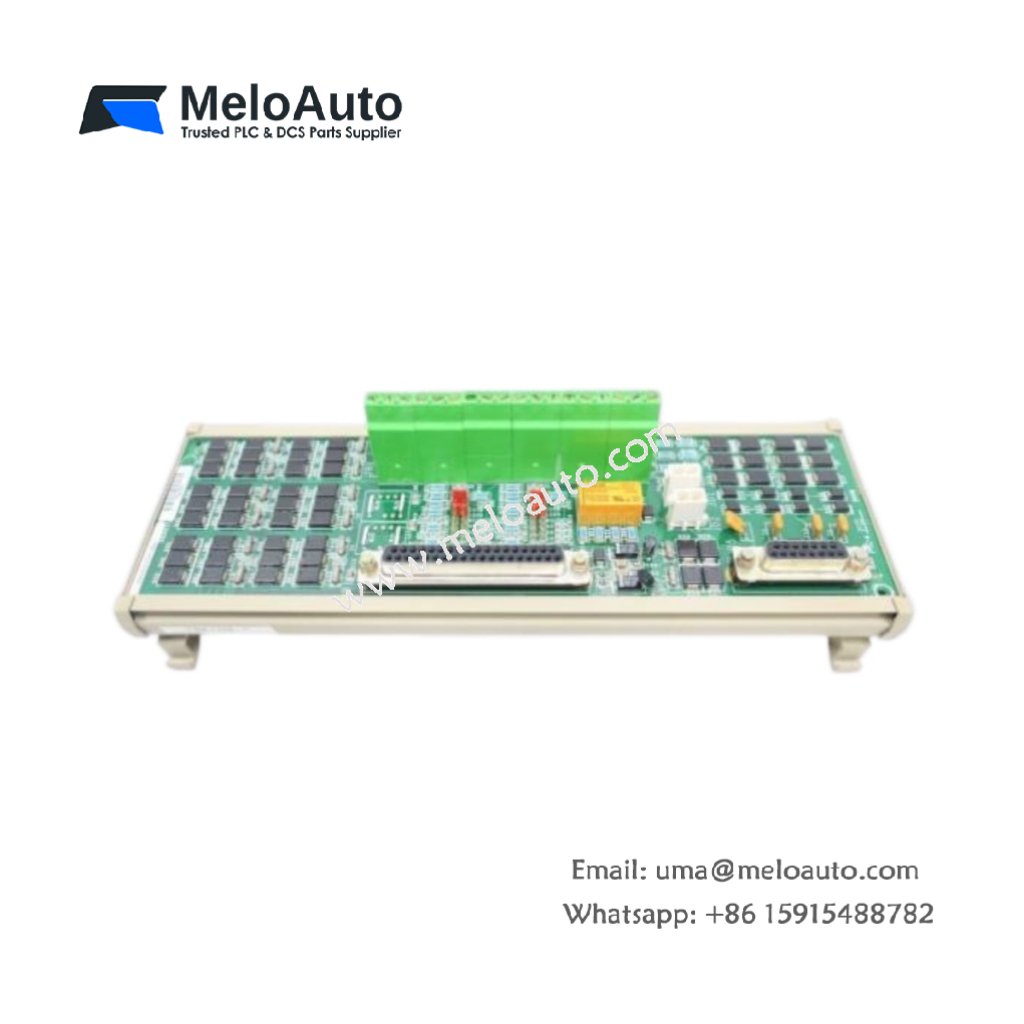

GE IS200BICLH1A IS200BICLH1AED Printed Circuit Board

Technical Specifications

The GE IS200BICLH1A (also IS200BICLH1AED) functions as a bridge interface control board. This board measures 25.4 cm in length and 20.3 cm in width. It weighs approximately 0.9 kg. The unit contains one main connector with 50 pins for backplane interface. Additionally, it features two 20-pin ribbon cable headers for auxiliary signal routing. The GE IS200BICLH1A IS200BICLH1AED stores no firmware or configuration data locally. It also holds zero battery-based energy storage. Instead, this board performs passive signal conditioning and routing.

Parameter	Specification
Brand	General Electric (GE)
Model	GE IS200BICLH1A IS200BICLH1AED
Category	Printed Circuit Board
Length	25.4 cm
Width	20.3 cm
Weight	~0.9 kg
Main Connector	One 50-pin backplane connector
Auxiliary Headers	Two 20-pin ribbon cable headers
Onboard Memory	None
Energy Storage	None (passive design)

Design and Integration

This GE IS200BICLH1A IS200BICLH1AED routes signals between control modules in Mark VI systems. The 50-pin backplane connector carries digital I/O and power. Meanwhile, the two ribbon headers link to remote termination boards. Therefore, the board eliminates complex point-to-point wiring inside cabinets. The passive design requires no external power for signal transmission. Consequently, you achieve reliable operation without firmware updates. For a different interface component, see the RMS-TSG-TZ-C on Alibaba. However, that static trip relay handles protection functions rather than signal routing.

Reliability and Installation

The GE IS200BICLH1A IS200BICLH1AED operates from -40°C to +70°C. Its passive nature eliminates any maintenance for batteries or software. Therefore, you achieve decades of trouble-free service. The board mounts directly onto the Mark VI backplane. Each unit meets GE’s contact resistance standards below 10 mΩ.
