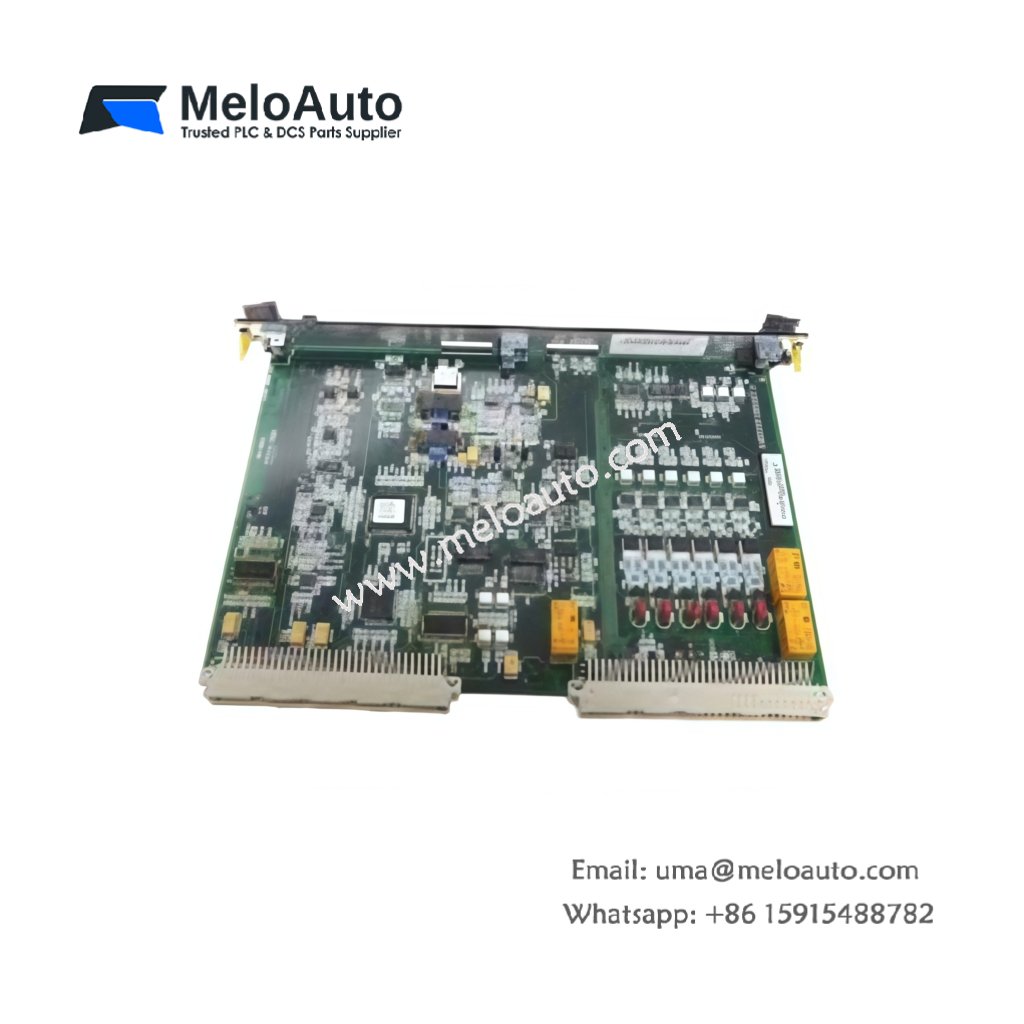

GE IS200BAIAH1B IS200BAIAH1BEE Printed Circuit Board

The GE IS200BAIAH1B IS200BAIAH1BEE serves as a dedicated PCB for the Mark VI series. This board manages analog input and output signals within the control assembly. You will find this unit in many industrial turbine automation systems. General Electric designed this board for the Speedtronic turbine control platform. Its robust construction ensures reliable operation in harsh environments.

Technical Specifications

This board integrates over 115 discrete components onto a multi-layer PCB. Its dimensions measure roughly 8.0 inches wide by 6.8 inches high. The total weight reaches about 0.58 kilograms including the protective coating. Six 16-pin headers handle low-level analog signals from field sensors. Two analog input terminals bring reference voltages into the board. One backplane connector provides power and data paths to the main rack. The design stores up to 260 joules of capacitive energy for stable analog conversion.

Functional Layout and Analog Processing

The GE IS200BAIAH1B IS200BAIAH1BEE converts incoming analog signals with high precision. Each analog converter changes sensor voltages into digital values for the controller. Moreover, the board filters noise from external signal sources before conversion. This variant includes upgraded capacitors for better transient response and stability. General Electric specifically designed this PCB for the Mark VI Speedtronic system. You can replace an older board with this unit without changing the rack configuration.

Installation Guidelines and Compatibility

This printed circuit board mounts directly into a standard Mark VI rack slot. Always disconnect system power before handling the GE IS200BAIAH1B IS200BAIAH1BEE. The board works with existing GE Mark VI backplanes and analog sensors. Verify your firmware revision supports this variant. This board maintains backward compatibility with earlier Mark VI versions. Proper installation ensures reliable analog signal processing and system integrity.
