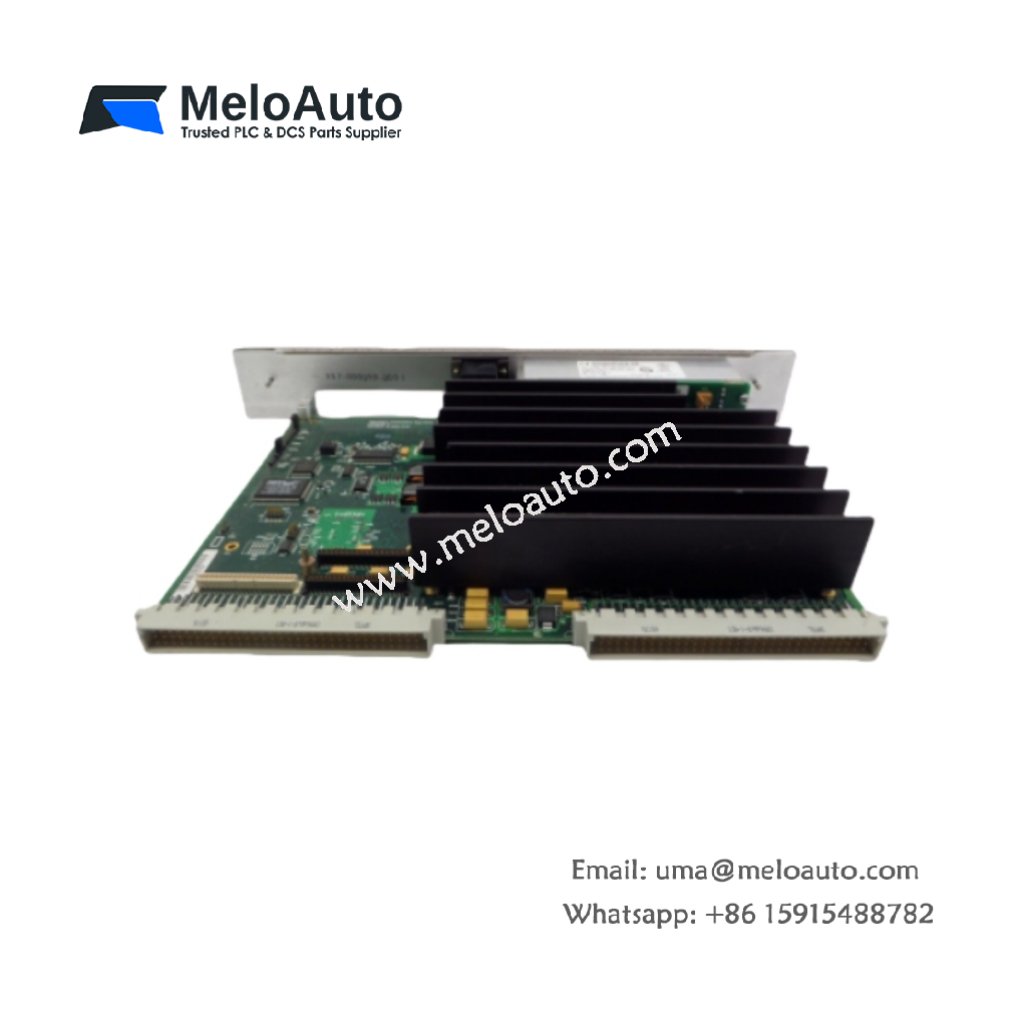

GE IC698CRE040 RX7i Processor Module

The IC698CRE040 is a high-performance Central Processing Unit (CPU) from GE Fanuc (now part of Emerson Automation Solutions). It is designed for the PACSystem RX7i platform, providing reliable and scalable control for industrial automation applications. This processor boasts a 1.8 GHz Pentium M microprocessor and offers 64 MB RAM and 64 MB non-volatile user memory to ensure efficient data handling.

With two serial communication ports, one station manager port, and two Ethernet RJ45 ports, the IC698CRE040 offers flexible connectivity. It supports Ethernet transmission speeds of up to 100 Mbps, along with various communication protocols such as Modbus RTU Slave, Modbus/TCP, and SNP. The processor’s scan rate of 0.024 ms per 1000 Boolean contacts/coils ensures fast and accurate processing for complex industrial systems.

Key Features & Specifications:

Feature	Specification
Model	IC698CRE040
Manufacturer	GE Fanuc (Emerson Automation Solutions)
Product Line	RX7i PACSystem
Type	Central Processing Unit (CPU)
Processor Speed	1.8 GHz
Memory	64 MB RAM, 64 MB Non-volatile Memory
Weight	1.50 lbs (0.68 kg)
Serial Communication Ports	Two (2) RS232 and RS485
Ethernet Ports	Two (2) RJ45 ports
Ethernet Transmission Rate	10/100 Mbps (Auto-sensing)
Web and FTP Support	Up to 16 web server and FTP connections (combined)
Time of Day Clock Accuracy	±2 seconds maximum drift per day
Elapsed Time Clock Accuracy	±0.01% maximum
Power Requirements	+5 VDC: 6.8 Amps, +12 VDC: 0.003 Amps, -12 VDC: 0.003 Amps
Voltage	5 VDC
Current	6.8 Amperes
Communication Protocols	Modbus RTU, Modbus/TCP, SNP, SRTP, TCP/IP
Programming Languages Supported	Ladder Diagram, C, Structured Text, Function Block Diagram
Block Download Capacity	Up to 512 blocks, 128 KB per block
Station Manager Port	One (1) Station Manager Port

Dimensions and Weight:

Attribute	Specification
Weight	1.50 lbs (0.68 kg)
Dimensions (HxWxD)	5.9″ x 7.0″ x 2.3″ (150 mm x 178 mm x 58 mm)

Application and Usage:

The IC698CRE040 is an essential component for PACSystem RX7i, providing powerful data processing and seamless connectivity. Its high-speed processor and ample memory enable smooth control in demanding industrial applications. The 64 MB RAM ensures efficient program execution, while the 64 MB non-volatile memory retains critical data, even during power loss.

This CPU also excels in communication capabilities. It features Ethernet ports with support for Ethernet Global Data (EGD), Modbus/TCP, and SRTP. These features allow for reliable data exchange and real-time monitoring of control systems. The CPU can support up to 16 web server and FTP connections, making it an excellent choice for applications requiring remote access or real-time updates.

The IC698CRE040 supports various programming languages, including Ladder Diagram and Function Block Diagram, offering flexibility for different system requirements. Furthermore, it can download up to 512 blocks, making it suitable for large, complex automation projects.

Compatibility:

The IC698CRE040 CPU integrates seamlessly with the PACSystem RX7i platform and supports full compatibility with various industrial protocols. It is designed to handle complex tasks and offers an efficient, scalable solution for industrial automation systems.
