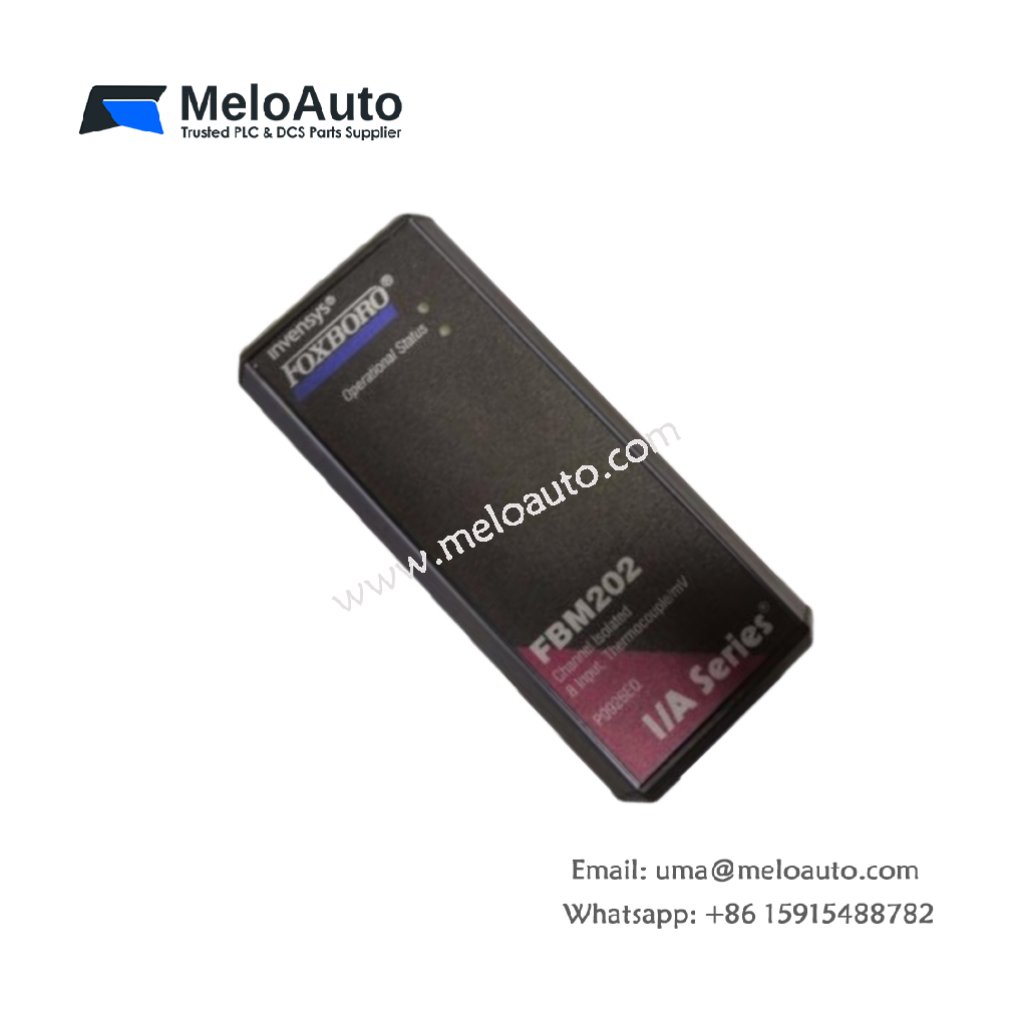

Foxboro FBM202 Thermocouple/mV Input Interface Module

Overview

The Foxboro FBM202 is a high-performance Thermocouple/mV Input Interface Module designed for use within the Foxboro I/A Series control systems. This module offers precise temperature measurement capabilities by providing eight thermocouple input channels and one isolated RTD reference junction compensation channel. Each thermocouple/mV input channel supports a wide range of thermocouple types, ensuring compatibility with various temperature ranges.

The Foxboro FBM202 also includes thermocouple burnout detection, which helps identify faulty or disconnected thermocouples. Each input channel is galvanically isolated, protecting the system from electrical noise or ground loops and ensuring reliable signal conversion and communication.

Key Features

Multiple Input Channels: Supports 8 thermocouple input channels and 1 RTD reference junction compensation channel for flexible configurations.
Wide Temperature Compatibility: Accepts standard thermocouples for diverse temperature ranges, making it suitable for a variety of industrial applications.
Thermocouple Burnout Detection: Ensures continuous monitoring and fault detection by alerting the system to thermocouple failures (up-scale burnout detection).
Galvanic Isolation: Provides electrical isolation between channels and ground, minimizing noise interference and ensuring high signal integrity.
Durable Design: Built to withstand harsh industrial environments, offering reliable performance even in challenging conditions.

Technical Specifications

Parameter	Foxboro FBM202
Manufacturer	Foxboro (now part of Schneider Electric)
Part Number	FBM202
Product Type	Thermocouple/mV Input Interface Module
Platform	Foxboro I/A Series
Input Channels	8 thermocouple input channels
	1 isolated RTD reference junction channel
Input Signals	Standard thermocouples for various temperature ranges
Burnout Detection	Thermocouple burnout detection (up-scale)
Galvanic Isolation	Isolated from other channels and ground
Operating Voltage	24 VDC
Operating Temperature	-40°C to +85°C
Dimensions (WxDxH)	4.5 cm x 11 cm x 11.5 cm
Weight	2.93 lbs (1.33 kg)

Applications

The Foxboro FBM202 module is ideal for applications requiring accurate temperature measurement and monitoring. Its versatile input capabilities make it suitable for various industries, including:

Industrial Process Control: For temperature monitoring in critical process applications such as chemical processing, petrochemical, and power plants.
Manufacturing and Automation: Ensuring precision in automated systems, including machinery temperature regulation.
HVAC Systems: Used to maintain temperature control within large-scale heating, ventilation, and air conditioning systems.
Energy Management: Ideal for temperature measurement in energy production and distribution systems.
