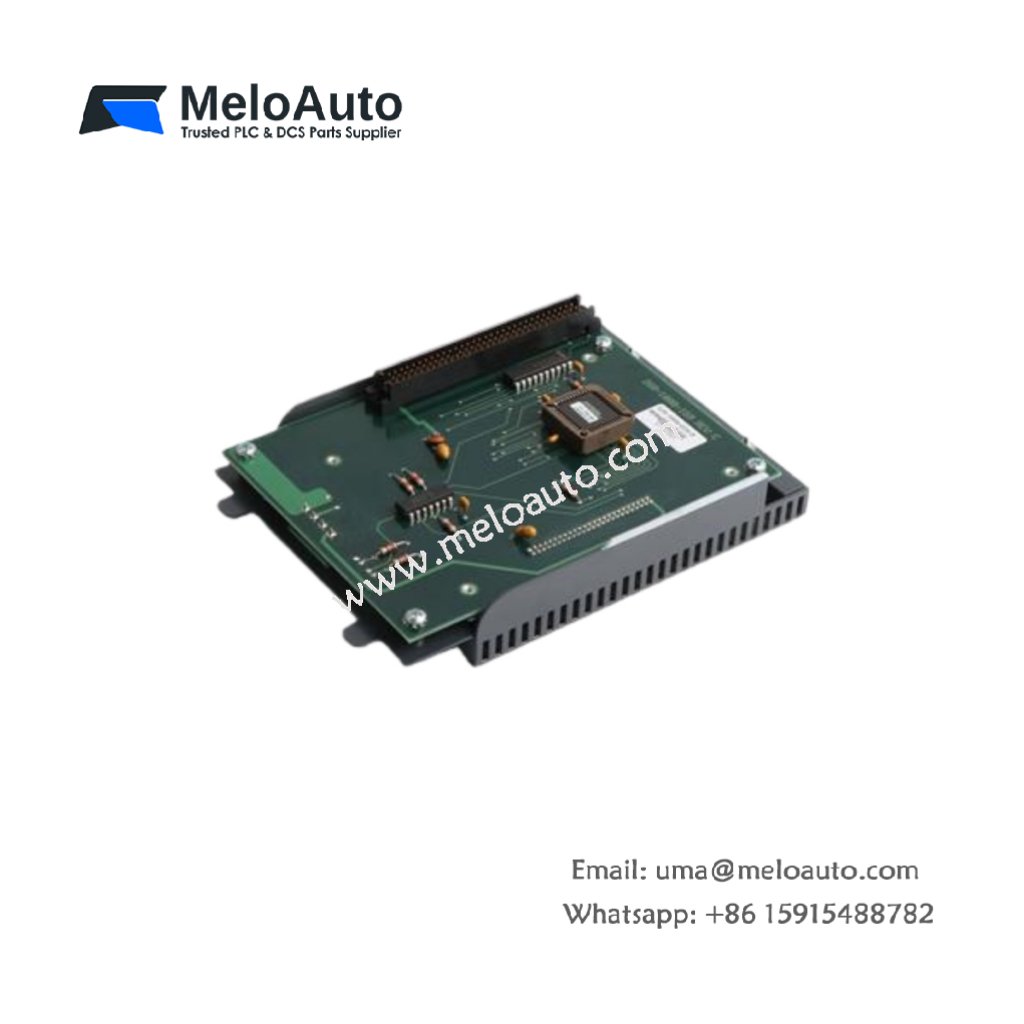

GE IC697MDL750 Discrete Output Module

The GE IC697MDL750 is a high-performance discrete output module designed for use with the Series 90-70 programmable logic controller (PLC). Now under Emerson Automation after GE Fanuc’s acquisition, this module offers advanced features for reliable industrial automation. It provides 32 discrete output channels, arranged in four groups, each capable of delivering high voltage and current for various industrial applications.

Key Features

Model: IC697MDL750
Category: Discrete Output Module
Manufacturer: GE Fanuc (now Emerson Automation)
Series: Series 90-70
Compatibility: Fully compatible with GE Series 90-70 PLC systems.

Technical Specifications

Parameter	Specification
Rated Voltage	24V to 48V DC
Output Channels	32 discrete output channels
Output Groups	4 groups (8 channels per group)
Output Current	0.5A per point, 2A per group
Output Voltage Range	20V to 60V DC
Required Current	0.25A
Isolation	1500V between field and logic sides; 50V between groups
Maximum Inrush Current	10A for 20ms
Leakage Current	1mA per channel
Response Time	1ms maximum delay per channel
Wiring Configuration	Positive Logic
Terminal Block	High-density removable terminal block
Wiring Size	#22 AWG to #14 AWG (0.36mm² to 2.10mm²)

The IC697MDL750 module is a versatile solution for controlling a wide range of industrial equipment. It supports 32 discrete output channels, grouped into four sets of eight channels. Each channel delivers 0.5A of current, while each group provides a total of 2A, making it ideal for energizing devices such as motor starters, solenoids, and pilot lamps.

This module is designed to provide high isolation with a backplane isolation of 1500V and group isolation of 5000V. The IC697MDL750 operates at a rated voltage of 24V or 48V DC, with a voltage range of 20-60V DC. Its positive logic wiring configuration ensures easy installation, and it supports local or distributed I/O architecture in larger systems.

The module comes with a removable terminal block that can accommodate wire bundles, allowing easy installation and maintenance. Each terminal supports wire sizes from #22 AWG to #14 AWG, providing flexibility for different industrial wiring needs.

GE IC697MDL750 Features Overview

High power output: 32 channels with 0.5A per channel and 2A per group.
Robust isolation: Offers 1500V isolation between the field and logic sides, with 50V isolation between groups.
Compact and efficient: Designed for Series 90-70 PLC systems with simple installation and operation.
Wide voltage range: Operates efficiently within a 20V to 60V DC output voltage range.
Durability: Built to handle industrial environments with high inrush current tolerance (10A for 20ms).

This discrete output module is perfect for a wide range of automation tasks. Its compact design and reliable performance make it an excellent choice for powering electrical loads and controlling industrial operations.
