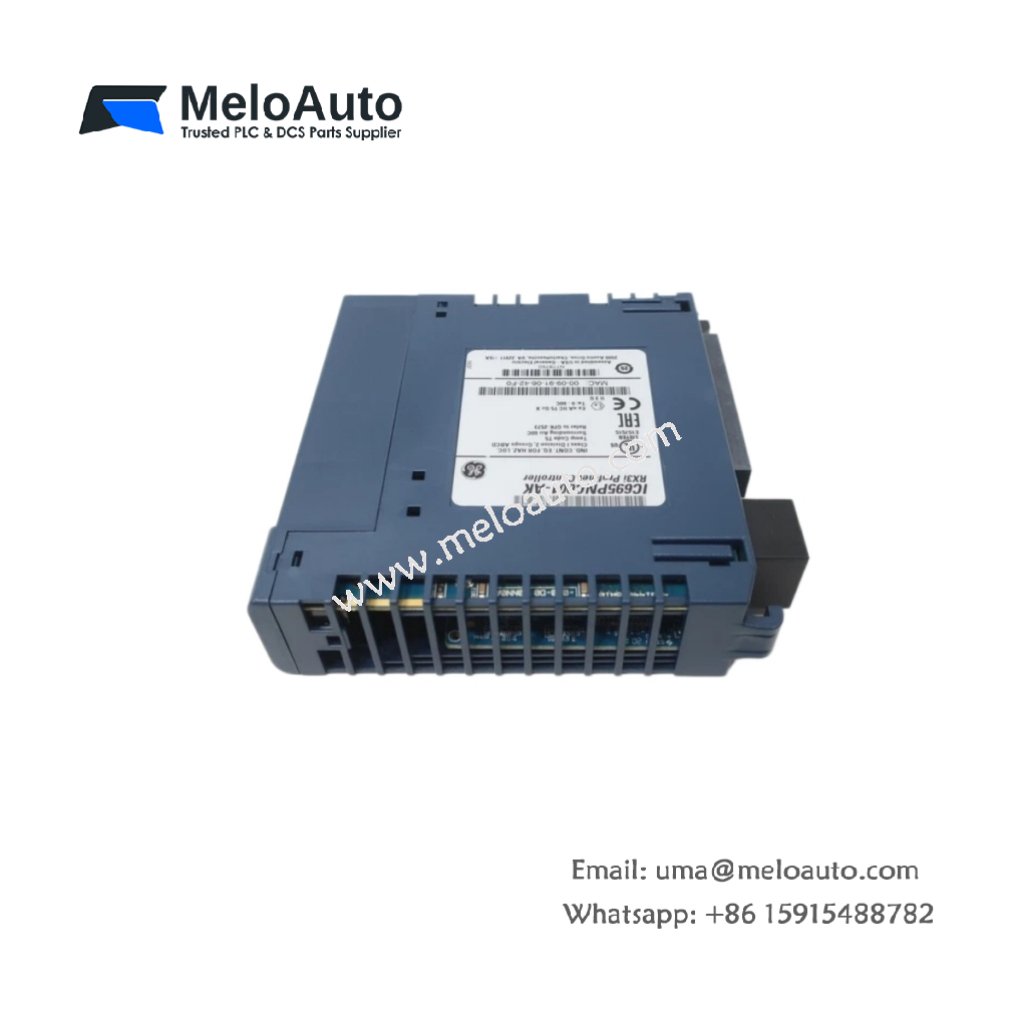

The GE IC695PNC001 is a high-performance PROFINET controller module designed for seamless communication within the PACSystems RX3i series. Manufactured by Emerson Automation (formerly GE Intelligent Platforms), this module connects RX3i systems to a PROFINET network, enabling efficient and reliable data exchange. It supports PROFINET Version 2.2 with General Class A IO-Controller and integrates easily with CPU315 or CPU320 CPUs with firmware versions 7.0 or higher.

Product Overview

The GE IC695PNC001 PROFINET Controller Module facilitates communication between RX3i systems and the PROFINET network. It offers scalable connectivity with support for up to 64 devices per PROFINET controller and can accommodate up to 8 I/O controllers per network. This module supports a maximum of 2048 I/O devices or 128 devices per network, making it ideal for large-scale industrial automation setups.

With multiple ports for flexible connectivity, including two RJ-45, two SFP slots, and a micro USB connector, the IC695PNC001 ensures robust communication and future-proof compatibility.

Key Features

Model: GE IC695PNC001
Category: PROFINET Controller Module
Manufacturer: GE Fanuc Emerson
Series: PACSystems RX3i
Protocol Support: PROFINET Version 2.2, General Class A IO-Controller
Device Compatibility: Compatible with CPU315 or CPU320 with firmware version 7.0 or higher
I/O Capacity: Up to 2048 I/O devices, or 128 devices per network
Communication Interfaces: Two RJ-45, two SFP slots, one micro USB connector
Installation: Installed in the main rack only
Mounting Location: Main rack
Weight: 1.00 lbs (0.45 kg)

Technical Specifications

Specification	Details
Model	GE IC695PNC001
Category	PROFINET Controller Module
Manufacturer	GE Fanuc Emerson
Series	PACSystems RX3i
Protocol Support	PROFINET Version 2.2, General Class A IO-Controller
I/O Devices Supported	Up to 2048 I/O devices or 128 per network
I/O Controllers	Up to 8 I/O controllers per network
Compatibility	CPU315 and CPU320 with firmware version 7.0 or higher
Ports	Two RJ-45, Two SFP slots, One micro USB connector
Installation Location	Main rack only
Weight	1.00 lbs (0.45 kg)
Temperature Range	0°C to 60°C
Storage Temperature Range	-40°C to 85°C
Humidity Range	5% to 95%, non-condensing

Advantages

High Device Support: The GE IC695PNC001 supports up to 2048 I/O devices, making it suitable for large-scale automation systems with extensive I/O needs.
Scalable Communication: With the ability to connect up to 64 devices per controller and 8 I/O controllers per network, it supports scalable system configurations.
Flexible Connectivity: Equipped with RJ-45 ports, SFP slots, and a micro USB connector, this module provides versatile options for communication and integration.
Reliable Performance: The module ensures seamless communication, supporting PROFINET Version 2.2 for efficient data exchange with minimal latency.
Easy Installation: This module is designed to fit easily into the main rack, simplifying the setup process.

Applications

The GE IC695PNC001 is ideal for applications that require fast and reliable communication within PACSystems RX3i networks. It is particularly suited for large-scale automation systems in industries such as manufacturing, process control, and facility management. Whether used for I/O devices or I/O controllers, it ensures that all connected devices can operate efficiently in an integrated automation environment.

Conclusion

The GE IC695PNC001 PROFINET Controller Module is a powerful communication solution for PACSystems RX3i systems. With its robust PROFINET Version 2.2 support, flexible connectivity options, and high scalability, it ensures reliable and efficient communication for large automation systems. This module is a critical component for improving connectivity and performance in complex industrial environments.
