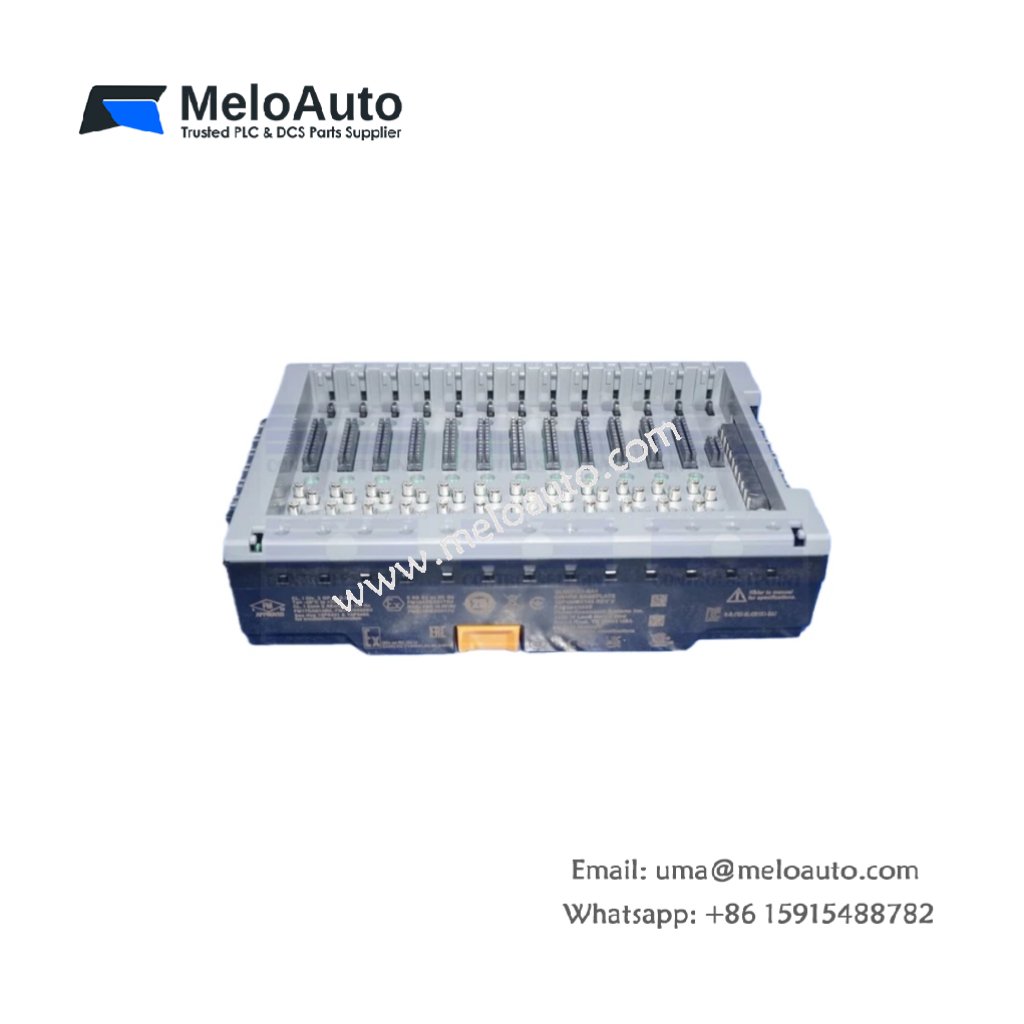

Emerson SE4601T07 KL4201X1-BA1 Charm Baseplate for DeltaV System

The Emerson SE4601T07 KL4201X1-BA1 Charm Baseplate is an essential component of the Emerson DeltaV DCS (Distributed Control System). This high-quality baseplate serves as a robust mounting platform for various DeltaV modules, offering flexibility and reliability in industrial automation applications.

Key Features and Specifications

1. Efficient Mounting Platform
   The SE4601T07 KL4201X1-BA1 Charm Baseplate efficiently supports multiple DeltaV modules, ensuring smooth integration into your system. It provides a secure base for module installation, enhancing operational stability.
2. Compatibility with DeltaV Modules
   This baseplate is designed for compatibility with a wide range of DeltaV modules. It enables seamless expansion and system upgrades, adapting to the growing needs of your industrial control systems.
3. Power Specifications
   • CHARM Bus Power Rating: +6.3 VDC at 7.6 A
   • Field Circuit Power Rating: +24 VDC at 8.4 A
     These power specifications ensure stable and efficient operation of connected modules.
4. Wide Environmental Tolerance
   The SE4601T07 KL4201X1-BA1 Charm Baseplate performs well across various environmental conditions:
   • Temperature Range: -40°C to +70°C
   • Shock Resistance: 10g ½ Sinewave for 11 milliseconds
   • Vibration Resistance: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
   • Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
   • Relative Humidity: 5% to 95% Non-Condensing

Technical Specifications

Applications

The SE4601T07 KL4201X1-BA1 Charm Baseplate is integral to industrial automation systems, especially in process control and manufacturing environments. It provides a reliable foundation for connecting various DeltaV modules, ensuring system stability and flexibility.
