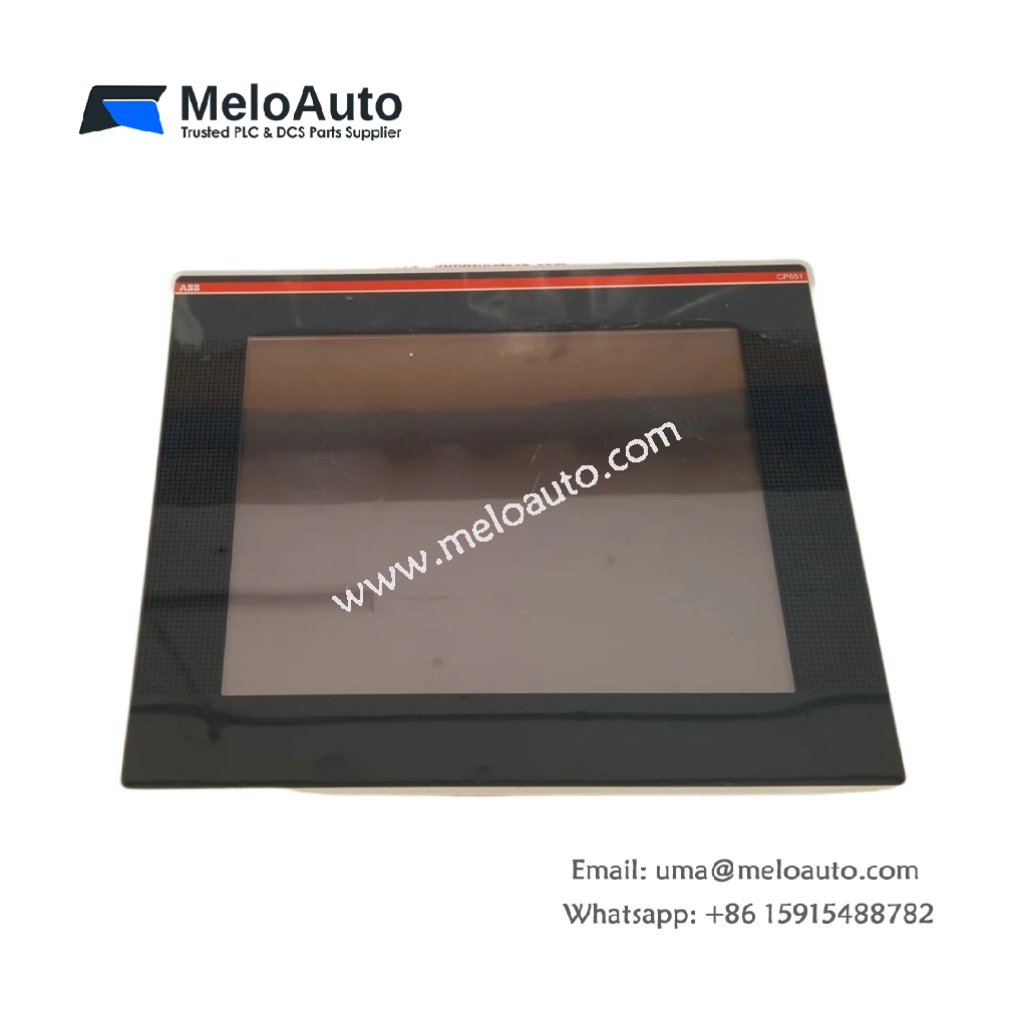

ABB CP651 1SAP551100R0001 10.4" TFT Touch Screen HMI

The ABB CP651 1SAP551100R0001 belongs to the CP600 series and is designed for demanding automation environments. This 10.4-inch TFT panel offers 64K colors with an 800 × 600 resolution, delivering clear visualization and responsive touch control. Its compact design combines durability with efficient performance for industrial use.

Key Features of ABB CP651 1SAP551100R0001

Screen Size: 10.4″ TFT with LED backlight and 4:3 aspect ratio.
Resolution: 800 × 600 pixels with 64K color display.
Processor & Memory: 256 MB Flash Disk for user data and 256 MB DDR RAM for programs.
Interfaces: Dual Ethernet 10/100Mbit, RS232/RS422/RS485, two USB 2.0 host ports, SD-card slot, and expansion slots.
Power Supply: 24 VDC (18 … 30 VDC) with 24 W consumption.
Protection: Front IP66 and housing IP20 according to IEC 60529.
Durability: Designed for 40,000 hours of service life with hardware real-time clock and battery backup.
Software: Compatible with PB610 Panel Builder 600 runtime license.
Security: Multi-level password protection with up to eight user levels.

Technical Specifications

Specification	Details
Model	CP651 1SAP551100R0001
Product Type	PLC-CP600 Control Panel
Display	10.4″ TFT, LED backlight
Resolution	800 × 600 pixels, 64K colors
Memory	256 MB Flash (user data), 256 MB DDR RAM (programs)
Interfaces	2× Ethernet, 1× RS232/422/485, 2× USB 2.0 Host, 1× SD slot
Power Supply	24 VDC (18 … 30 VDC), 24 W consumption
Protection	IP66 (front), IP20 (housing)
Dimensions	287 mm (W) × 232 mm (H) × 60 mm (D)
Weight	Net: 2.05 kg, Gross: 2.9 kg
Material	Aluminium front and rear housing
Operating Temperature	0 … +50 °C
Storage Temperature	−20 … +70 °C
Service Life	40,000 hours
Certificate	GL Certificate 1SAA960004-0304
