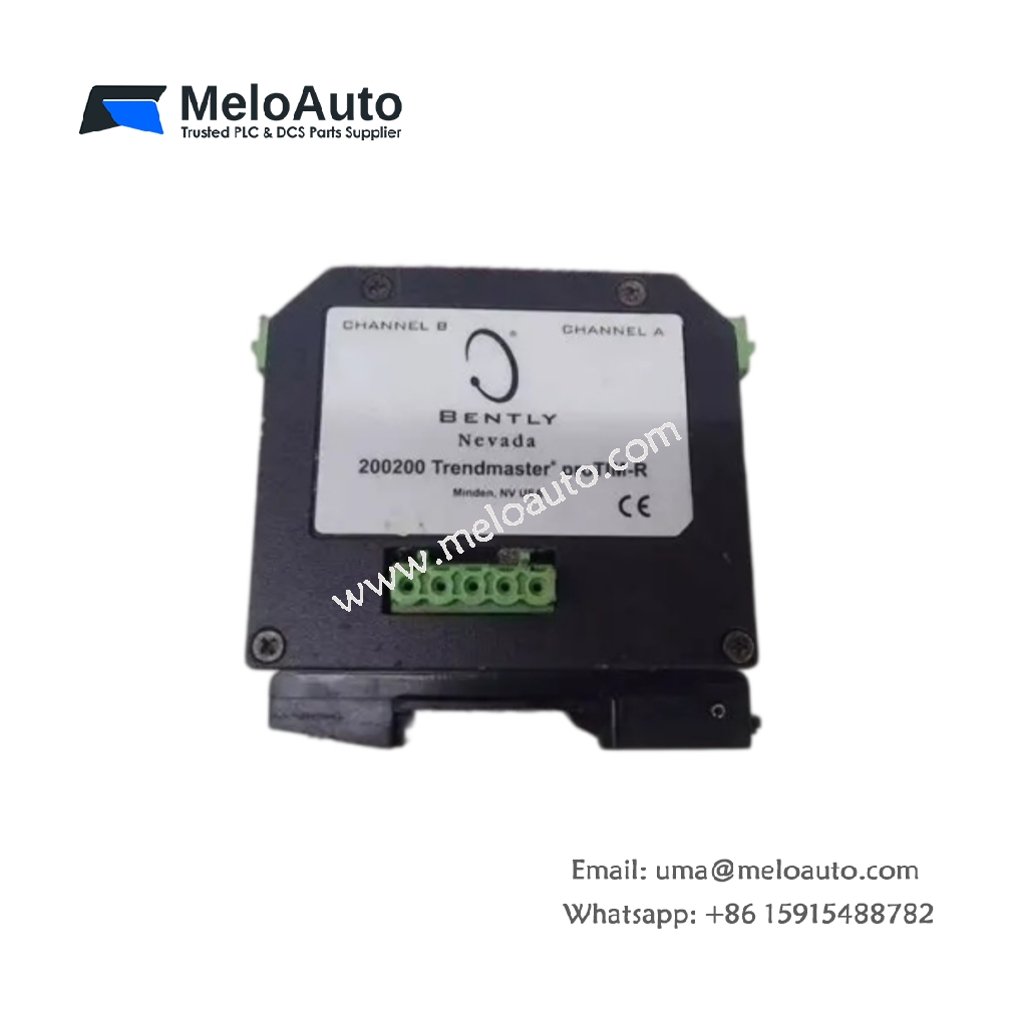

Bently Nevada 200200-02-02-CN Dual-Input Module

The 200200-02-02-CN dual-input condition monitoring module from Bently Nevada captures vibration signals inside machinery protection systems. Plant engineers install this module whenever two sensors must share one monitor position. Consequently, it delivers conditioned data for both channels without expanding the rack footprint.

Key Technical Specifications

The table below outlines the main physical and electrical parameters of the 200200-02-02-CN module.

Parameter	Specification
Product Type	Dual-Input Condition Monitoring Module
Compatibility	Bently Nevada machinery protection systems
Dimensions	Approximately 254 mm x 127 mm x 51 mm
Weight	Approximately 1.0 kg (2.2 lbs)
Mounting	Rack frame or panel mounting base
Interface	Backplane bus and dual transducer input terminals
Connectors	Multi-pin connector and coaxial input ports
Component Count	Multiple signal conditioners, filters, and driver circuits
Energy Storage	On-board capacitors for signal and voltage stabilization
Input Channels	Two independent transducer input channels
Signal Type	Proximity probe and accelerometer input support
Operating Temperature	0 degrees C to 60 degrees C
Storage Temperature	-40 degrees C to 85 degrees C
Humidity	5% to 95% non-condensing

Functional Overview

This module receives signals from two transducers and conditions them for monitor processing. Therefore, it supplies clean vibration and position data from a single card slot. The 200200-02-02-CN also filters electrical noise that would otherwise distort readings. Meanwhile, its onboard energy storage stabilizes signals during transient voltage fluctuations.

Installation and Handling Notes

Always verify transducer gap voltages before connecting sensors to the 200200-02-02-CN. In addition, use low-noise coaxial cable to protect signal integrity. Tighten all connectors fully to prevent intermittent data loss. Finally, confirm both channel readings during commissioning.
