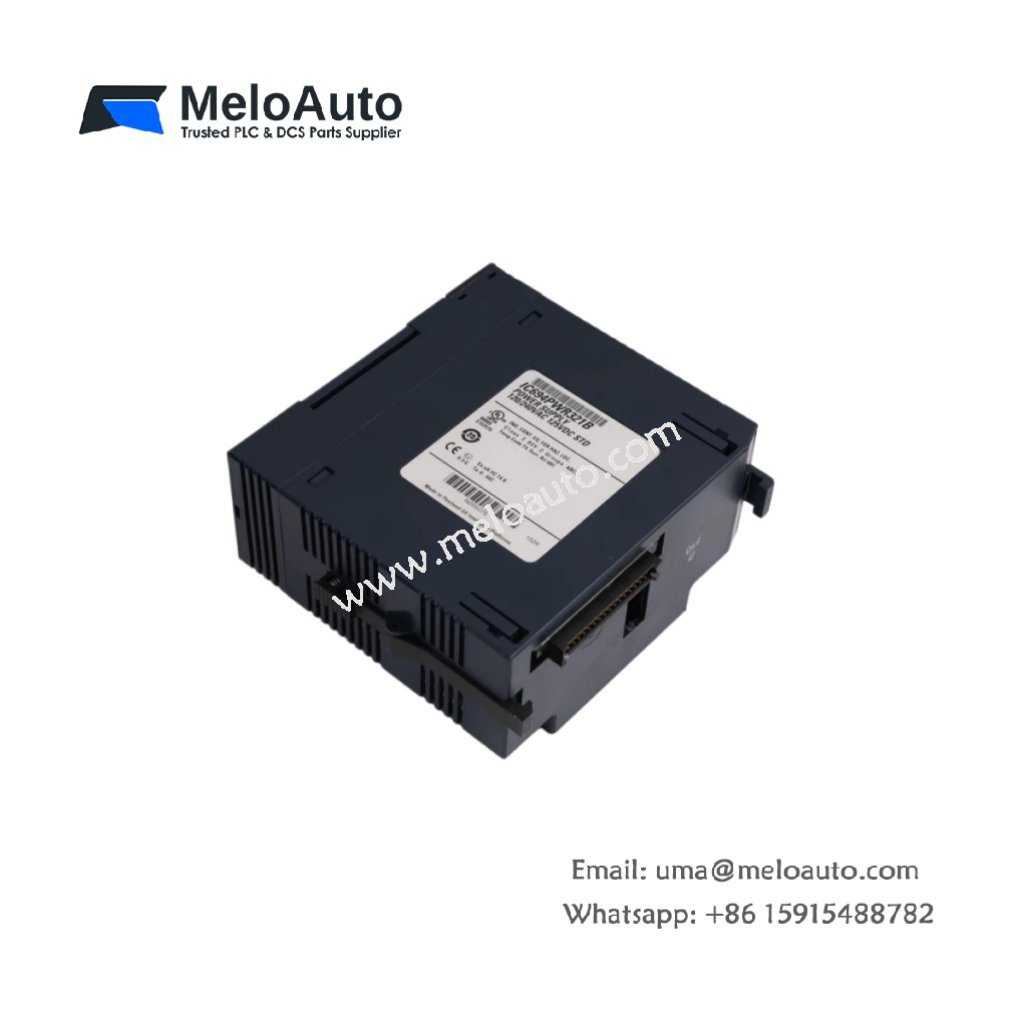

GE IC694PWR321B Power Supply Module

The GE IC694PWR321B power supply module is designed to deliver reliable voltage to industrial control systems, ensuring optimal performance in various automation environments. It supports both 120/240 VAC and 125 VDC input voltages, offering flexibility for a wide range of setups. This module is part of GE Fanuc’s Series 90-30, providing consistent power output for control systems, even under demanding conditions.

Key Features and Specifications

Model: GE IC694PWR321B
Type: Power Supply Module
Manufacturer: GE Fanuc
Nominal Input Voltage: 120/240 VAC or 125 VDC
AC Input Range: 85-264 VAC
DC Input Range: 100-300 VDC
Total Output Power: 30 Watts
5V DC Output Power: 15 Watts max.
Isolated +24VDC Output Power: 20 Watts max.
Relay +24VDC Output Power: 15 Watts max.
Input Isolation: 1500 VAC, 1 minute
Input Fuse: 2A (2 units)

Detailed Technical Specifications

Parameter	Value
Model	IC694PWR321B
Manufacturer	GE Fanuc
Nominal Input Voltage	120/240 VAC or 125 VDC
AC Input Range	85-264 VAC
DC Input Range	100-300 VDC
Total Output Power	30 Watts
5V DC Output Power	15 Watts max.
Isolated +24VDC Output Power	20 Watts max.
Relay +24VDC Output Power	15 Watts max.
5V DC Output Voltage	5.0-5.2 VDC
Relay +24VDC Output Voltage	24-28 VDC
Isolated +24VDC Output Voltage	21.5-28 VDC
Input Isolation	1500 VAC, 1 minute
Ride-Through Time	20 ms minimum
Input Fuse	2A (2 units)

Reliable Power Distribution

The GE IC694PWR321B provides 30 Watts of total output power, ensuring that all connected systems receive stable and reliable voltage. It features both 5V DC and +24VDC outputs, each capable of supporting a variety of connected devices in industrial control systems.

High-Performance Output and Versatility

This module includes a 5V DC output voltage ranging from 5.0 to 5.2 VDC and a +24VDC output voltage with two different outputs: isolated (21.5-28 VDC) and relay (24-28 VDC). These versatile outputs make it suitable for powering diverse industrial components.

Superior Isolation and Protection

With an input isolation rating of 1500 VAC for one minute, the GE IC694PWR321B ensures protection against electrical surges and other transient issues. The module also includes a 2A fuse for additional protection, making it a reliable choice for critical applications.

Quick Response Time for Uninterrupted Operation

The ride-through time of the GE IC694PWR321B is 20 ms minimum, ensuring that the system continues to operate without interruptions, even during brief power fluctuations.
