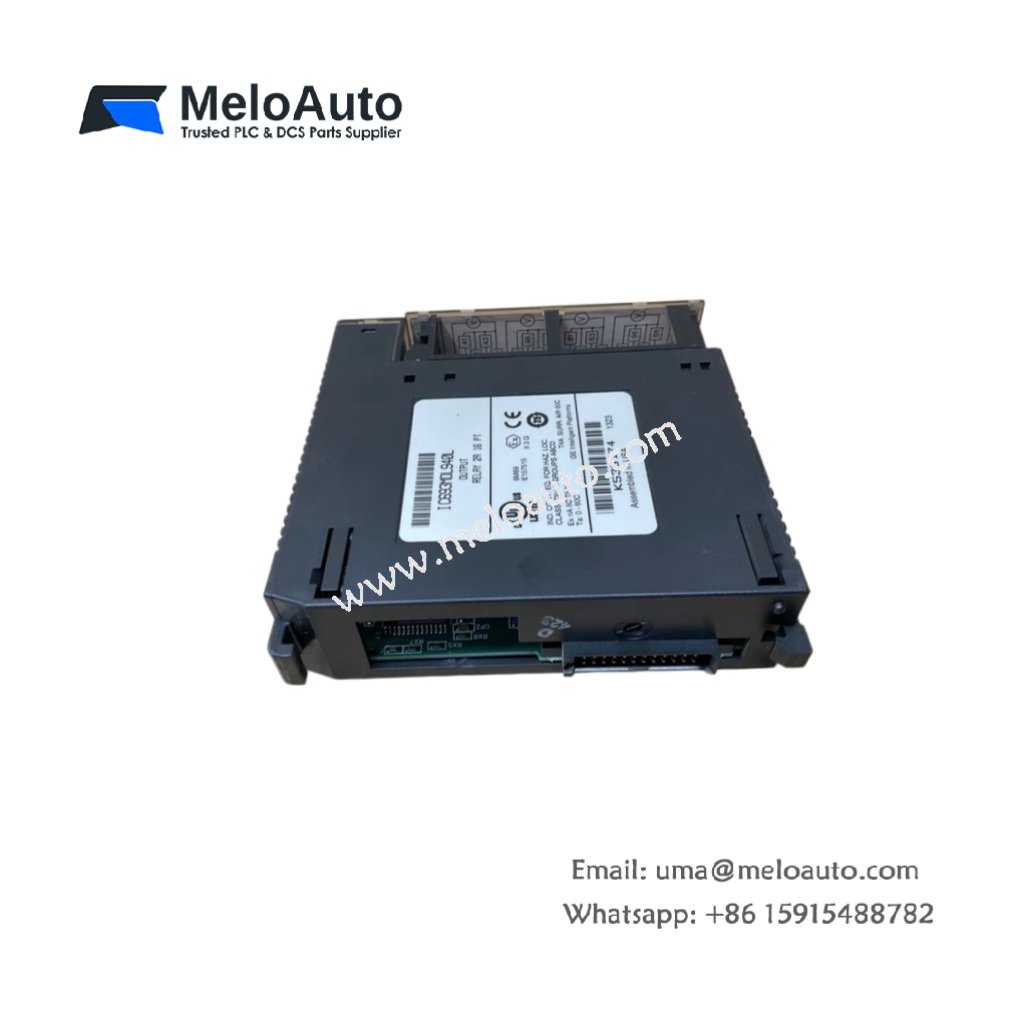

GE IC693MDL940L Relay Output Module

This output relay module switches isolated AC or DC loads for Series 90-30 systems. It provides six independent relay contacts for mixed-voltage applications. You will install this module in any I/O slot of the main rack.

Key Technical Specifications

The IC693MDL940L delivers six form C (SPDT) relay outputs. Each relay switches up to 2A at 120/240V AC or 24V DC. The module also includes individual LED indicators for each channel.

Parameter	Technical Data
Product Type	Series 90-30 Relay Output Module
Output Channels	6 form C (SPDT) relays
Contact Rating (Resistive)	2A at 120/240V AC, 2A at 24V DC
Contact Rating (Inductive)	0.5A at 120V AC (PF 0.4)
Maximum Switching Voltage	250V AC or 30V DC
Maximum Switching Current	2A per relay
Response Time	10 ms (operate), 10 ms (release)
Mechanical Life	20 million operations
Electrical Life	100,000 operations at rated load
Dimensions (W x H x D)	2.5 cm x 13.6 cm x 12.7 cm
Total Weight	0.32 kg (0.71 lbs)
Terminal Block	1 x 20-position removable
Backplane Connector	24-pin Series 90-30 interface
LED Indicators	6 green (one per channel)
Onboard Relays	6 miniature (sealed)
Energy Storage	100 µF decoupling capacitance
Coil Voltage	5V DC from backplane
Operating Temperature	0°C to 60°C

Hardware Architecture and Relay Construction

The IC693MDL940L contains six miniature sealed relays on a single PCB. Each relay features a form C contact set with common, NO, and NC terminals. Sealed construction prevents dust and moisture contamination. Six green LEDs illuminate when the corresponding relay coil energizes.

Interface and Connectivity

One 20-position removable terminal block connects relay contacts to field wiring. Each channel provides three terminals (C, NO, NC) for flexible wiring. A 24-pin backplane interface receives control commands from the CPU. The module requires no external power supply for relay coils.

Practical Installation Notes

Install this output module in any I/O slot of a Series 90-30 rack. The IC693MDL940L can switch mixed AC and DC loads on different relays. Always use an external fuse or breaker for load protection. Verify the contact current does not exceed 2A per relay for long life.
