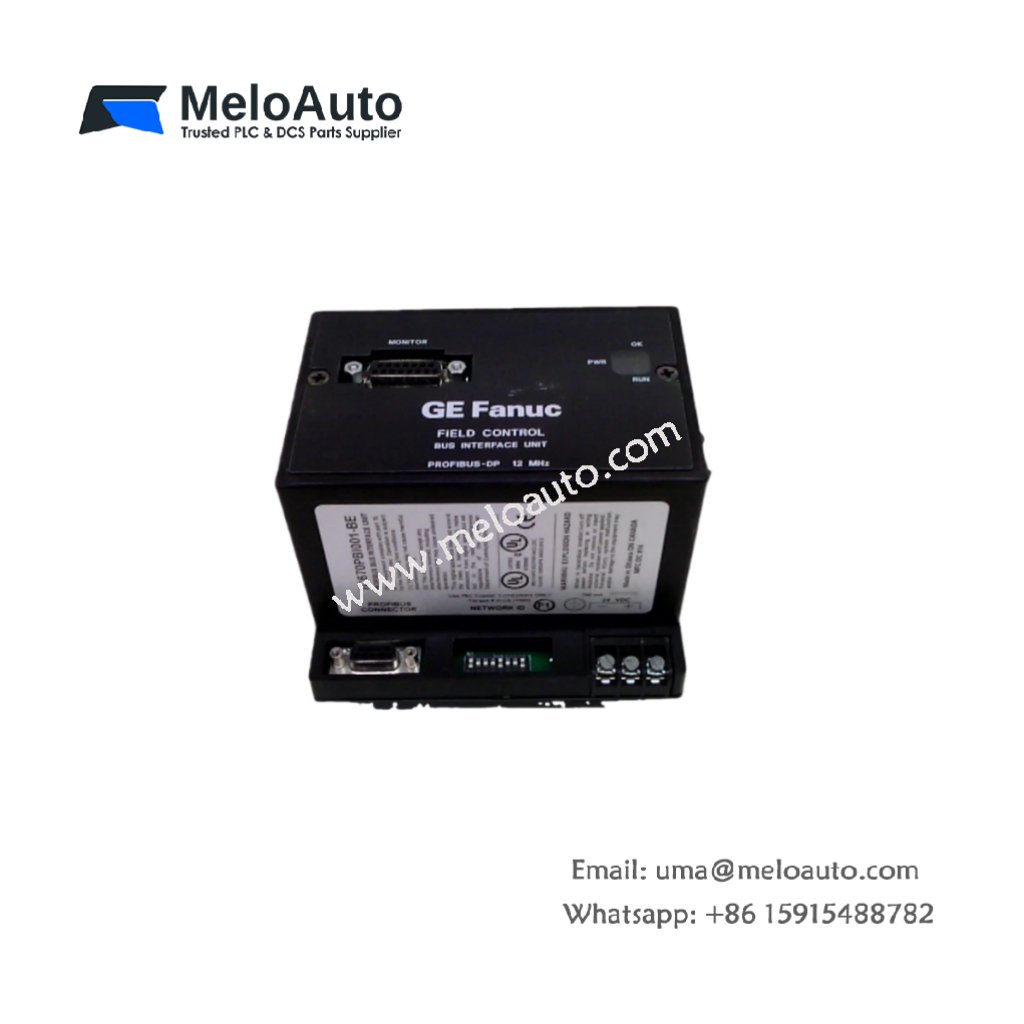

GE IC670PBI001-BE Profibus Interface Module

Product Overview

The IC670PBI001-BE is a Profibus Interface Module from GE Fanuc, designed as part of the Field Control series. This module connects Field Control I/O modules to a GE CPU via a Profibus network, enabling distributed I/O architecture in industrial automation systems. By facilitating high-speed communication, the IC670PBI001-BE ensures seamless data exchange and can support up to eight I/O modules.

The module features two 9-pin D-shell connectors. One connects to the Profibus network, while the other provides a port for the Hand-Held Programmer (HHP), allowing for easy programming and monitoring. Additionally, the module supports several transmission speeds, making it adaptable to different industrial environments.

Technical Specifications

Specification	Details
Part Number	IC670PBI001-BE
Manufacturer	GE Fanuc Emerson
Product Type	Profibus Bus Interface
Product Line	Field Control
Weight	0.62 kg (1.38 lbs)
Input Voltage	24 VDC
Voltage Range	18–30 VDC
Input Power	7.7 Watts
Power Dissipation	4.45 Watts
Transmission Speed	9.6, 19.2, 93.75, 187.5, 500, 1500 Kbits, 3 Mbits, 6 Mbits, 12 Mbits
No. of Ports	2 (1 x 9-pin D-sub Profibus port, 1 x 9-pin D-sub HHP port)
Addressing	Embedded DIP switches (0–32)
Number of Supported I/O Modules	Up to 8 modules
Profibus Topology	Linear bus topology
Network Medium	Shielded twisted pair cable (e.g., Belden #9463)
Reliability (MTBF)	180,000 hours
Mounting	DIN Rail or Panel mount via Bus Interface Unit (BIU) terminal block
Ambient Operating Temperature	0–55°C
Noise Resistance	Yes
Power Supply	24 VDC
Programming	Hand-Held Programmer (HHP)
Supported Functions	I/O forcing, Diagnostic display, Program upload/download
Status LEDs	PWR, RUN, OK

Key Features & Benefits

The IC670PBI001-BE enables robust communication between Field Control I/O modules and GE CPUs. It supports a range of Profibus transmission speeds, offering flexibility across various industrial applications. Moreover, it can host up to eight Field Control I/O modules, providing scalability for large automation systems.

With two 9-pin D-shell connectors, this module provides a simple and reliable way to connect to the Profibus network and a Hand-Held Programmer (HHP) for easy configuration and monitoring. The module’s embedded DIP switches allow for easy address setting, which can range from 00 to 32.

The IC670PBI001-BE operates in a linear bus topology, ensuring stable communication. It is designed for easy mounting on a DIN rail or panel mount using the provided Bus Interface Unit (BIU) terminal block. Its noise resistance allows the module to function effectively in challenging industrial environments.

Installation Guidelines

First, ensure that the system is powered off to prevent electrical hazards during installation.
Next, mount the IC670PBI001-BE on the DIN rail or use the terminal block for panel mounting.
After securing the module, connect it to the Profibus network using the appropriate shielded twisted pair cable.
Finally, configure the DIP switches to set the node address from 00 to 32, depending on your system’s configuration.

Conclusion

The IC670PBI001-BE Profibus Interface Module provides a reliable and flexible solution for connecting Field Control I/O modules to GE CPUs. With its support for up to eight I/O modules, high-speed communication, and easy configuration, it is ideal for implementing distributed I/O systems in industrial automation applications. The module’s flexible mounting options, noise resistance, and robust performance ensure it can meet the demands of even the most challenging environments.
