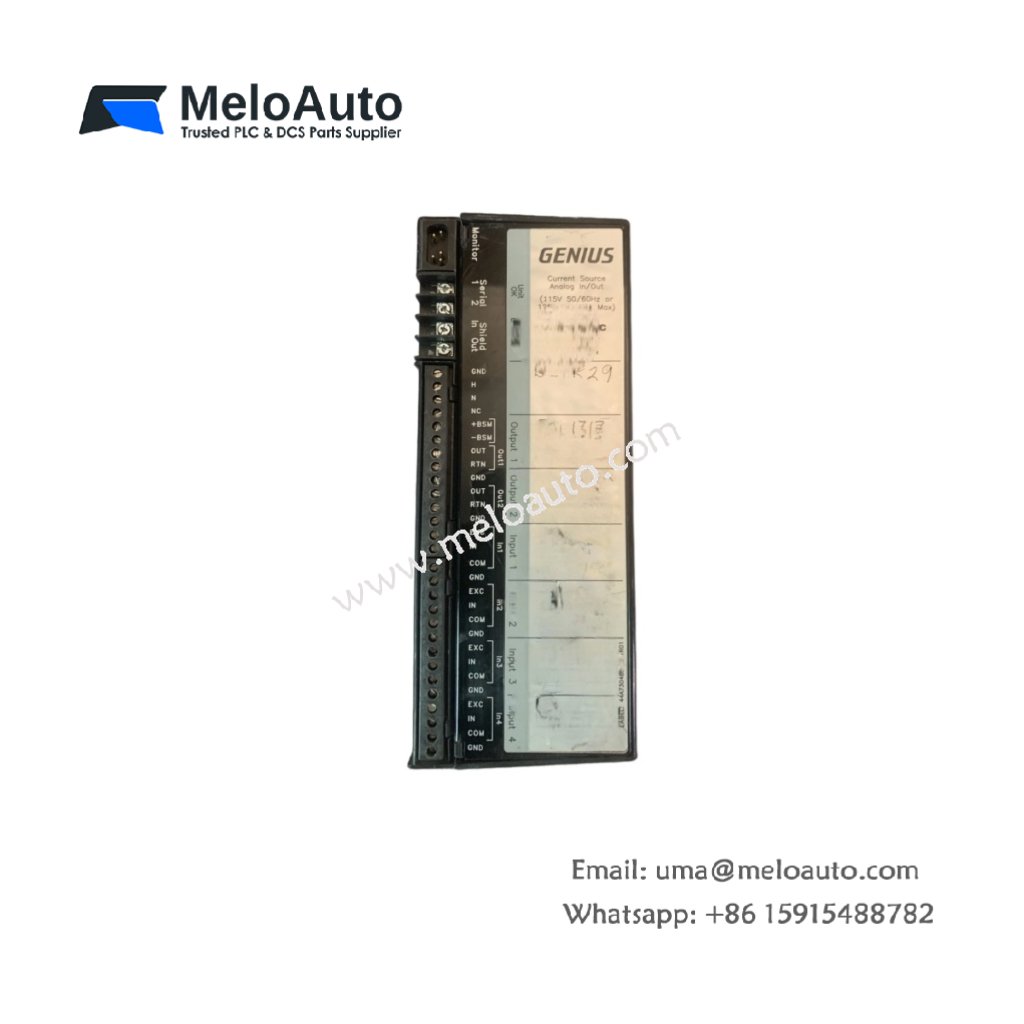

GE IC660EBA104 Electronic Assembly

This electronic assembly provides discrete I/O processing for Genius network blocks. The GE IC660EBA104 mounts inside a Genius I/O housing for field device interface. It measures 180 mm in width and 120 mm in height. This unit weighs approximately 0.35 kg for panel mounting.

Technical Specifications Table

Parameter	Value
Product Model	GE IC660EBA104
Brand	GE Fanuc / Emerson
Category	Electronic Assembly / Genius I/O Block
Compatible Series	Genius I/O (IC660)
Digital Inputs	16 channels (24 V DC, sink/source)
Digital Outputs	16 channels (24 V DC, 0.5 A)
Total I/O Points	32 points
Genius Bus Interface	1 x 2-wire (RS485)
Dimensions (W x H x D)	180 mm x 120 mm x 35 mm
Weight	0.35 kg
Connector Types	1 x 2-pin (Genius bus), 1 x 40-pin (I/O)
Internal Components	1 x 16-bit CPU, 1 x bus transceiver, 1 x power regulator
User Memory	32 KB flash for configuration
Energy Storage	2 x 470 µF filtering capacitors
Electrical Isolation	1500 V RMS between I/O and Genius bus
Operating Voltage	24 V DC external supply
Power Consumption	150 mA maximum
LED Indicators	4 x status (Power, OK, Bus, Fault)
Operating Temperature	-20°C to 65°C

Internal Design and I/O Processing

This electronic assembly uses a 16-bit CPU for I/O scanning and bus communication. The GE IC660EBA104 scans 16 inputs and 16 outputs every 1 millisecond. A bus transceiver manages communication on the Genius serial network. The assembly transmits I/O data to the bus controller automatically. Two 470 µF capacitors filter power supply ripple for clean operation. Consequently, this device provides reliable distributed I/O on Genius networks.

Installation and Wiring Guide

First, mount this electronic assembly inside a Genius I/O housing enclosure. Next, connect a 24 V DC field supply to the power terminals. Then, wire your field devices to the 40-pin I/O connector via terminal assembly. Connect the Genius bus wires to the 2-pin bus terminal. Use shielded twisted-pair cable for the Genius bus connection. The assembly automatically configures its I/O mapping when connected to the bus. Four LED indicators show power, OK status, bus activity, and fault conditions. This electronic assembly works with Genius terminal assemblies like IC660TBR100 and IC660TBR101. Always terminate both ends of the Genius bus line with the proper resistor.
