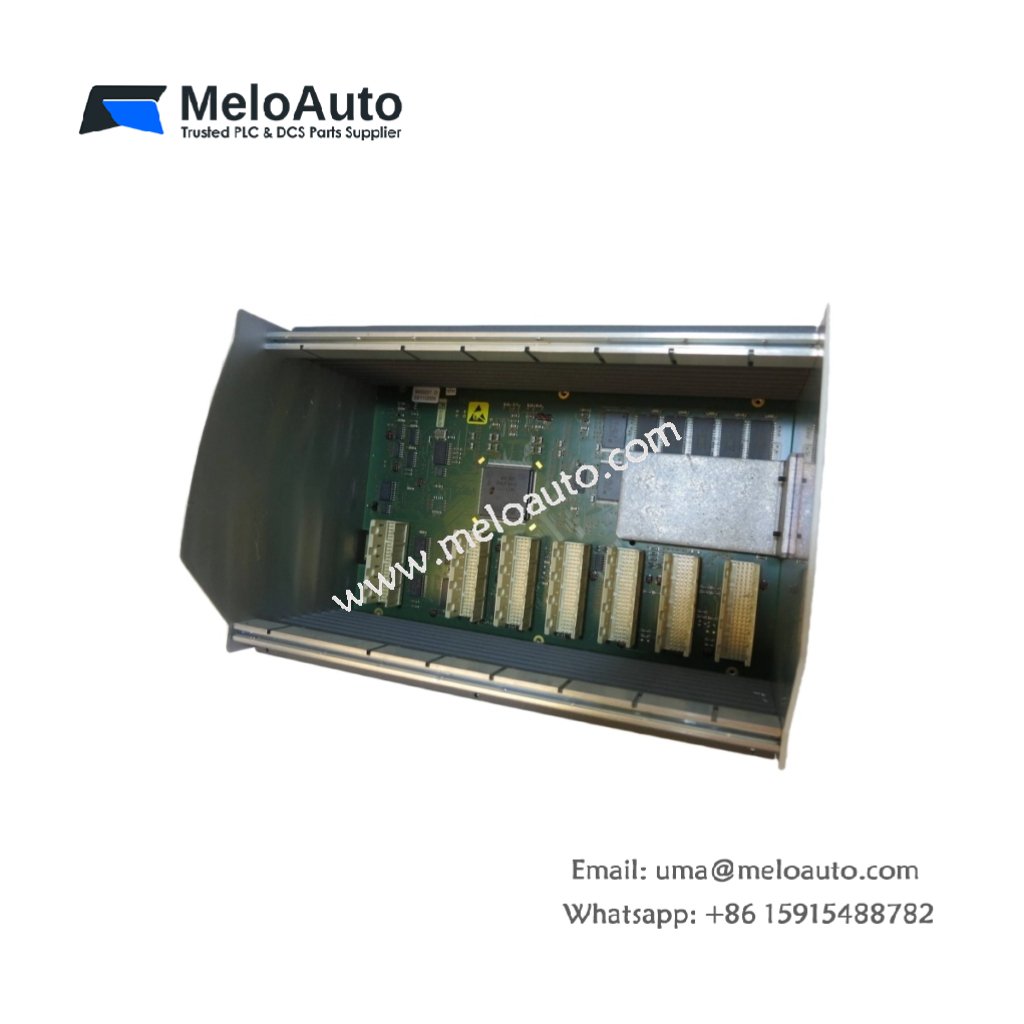

ABB AC800F 3BDH000002R1 PM802F 3BDH000002R1 Controller

Overview

The ABB PM802F (Part number: 3BDH000002R1) is a versatile and high-performance controller unit designed for the AC800F in ABB’s Freelance Distributed Control System (DCS). This module delivers exceptional real-time control, making it ideal for industrial automation environments that demand reliability and precision. It ensures seamless integration into complex control systems, providing robust performance in a variety of industries.

Key Features

CPU: Equipped with a Super Scalar RISC microprocessor, capable of delivering up to 150 MIPS for fast, efficient processing.
Memory: Contains 4 MB RAM and an additional 16K internal CPU cache, ensuring optimal processing and storage capabilities.
Fieldbus Support: Supports multiple communication protocols including PROFIBUS-DPV1, FOUNDATION Fieldbus HSE, MODBUS (master/slave, RTU, ASCII), and IEC 60870-5-101/104, offering flexibility in network integration.
Redundancy: Fully supports redundancy at all levels, enhancing system reliability and minimizing downtime.
I/O Capacity: Supports up to 1,000 I/Os, making it suitable for large-scale industrial control systems.
Temperature Monitoring: Integrated temperature monitoring ensures the unit performs optimally, even in harsh conditions.
Watchdog: Includes a built-in watchdog feature, further ensuring system stability and reducing the risk of failure.

Technical Specifications

Parameter	Details
Model	PM802F
Part Number	3BDH000002R1
CPU	Super Scalar RISC microprocessor (up to 150 MIPS)
Memory	4 MB RAM, 16K internal CPU cache
Flash EPROM	4 MB (PM802F), 8 MB (PM803F)
I/O Support	Compatible with digital and analog I/O modules
Fieldbus Modules	4 slots available for fieldbus modules
Ethernet Communication	2 slots with 32-bit data bus, 100 MBytes/s
Power Supply	Configuration-dependent options available
Operating Temperature Range	-20°C to +60°C
Dimensions (L x W x H)	20.3 cm x 17.8 cm x 25.4 cm (8.0″ x 7.0″ x 10.0″)
Weight	2.0 kg (4 lbs 6.1 oz)
Watchdog Feature	Yes
Battery Backup	Yes, with battery watchdog
Temperature Monitoring	Integrated temperature monitoring
Redundancy	Full redundancy support at all levels

Configuration and Setup

Configuring the ABB PM802F is simple and efficient. Using the Freelance Engineering Tool, the unit can be fully parameterized and set up for optimal performance. This tool simplifies system deployment, ensuring seamless integration into industrial environments.

Applications

The ABB PM802F plays a pivotal role as the heart of the AC800F system. It is essential for distributed control systems (DCS) where reliable real-time processing and communication are paramount. Whether used for process control, data acquisition, or system monitoring, the PM802F guarantees high performance in diverse industrial applications.

Certifications

The ABB PM802F complies with global industry standards. It is certified by CE, RoHS, and other relevant approvals, ensuring its safe and compliant operation in various international markets.
