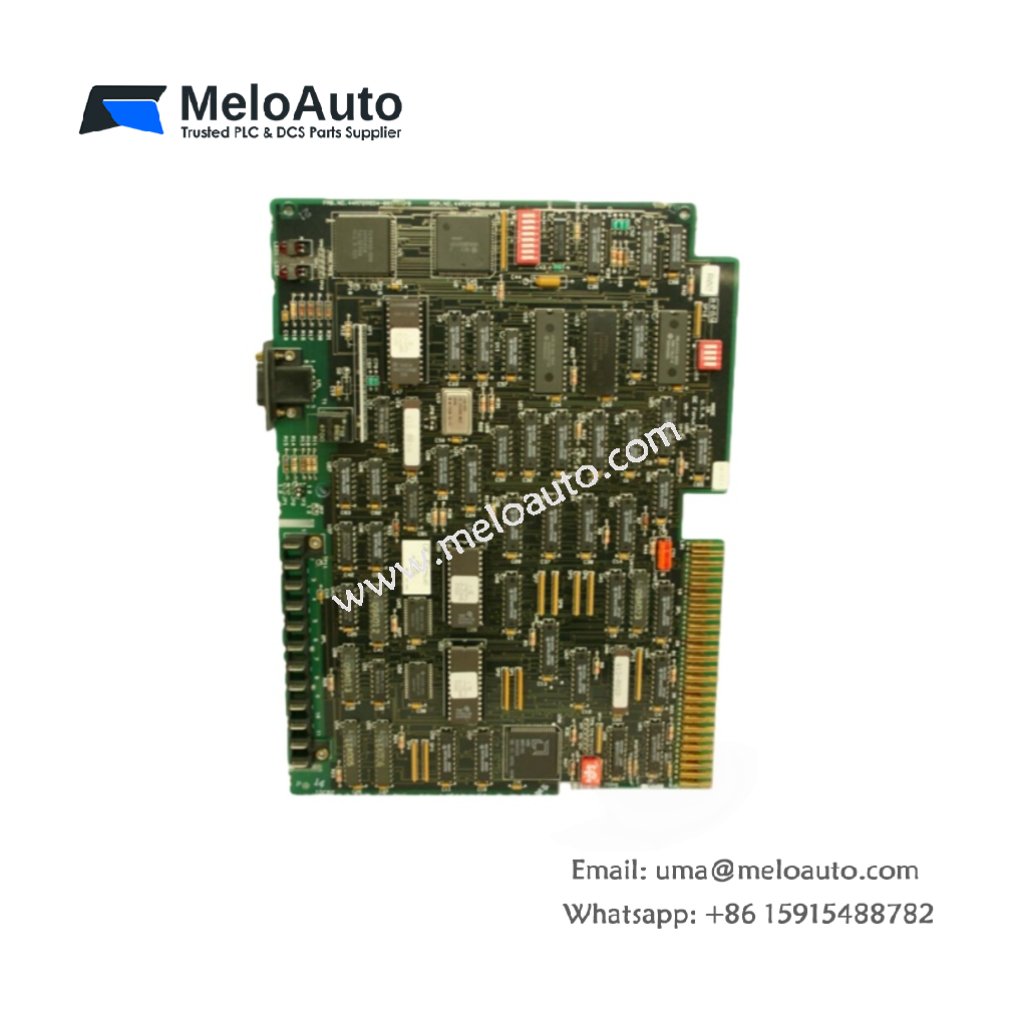

GE IC660CBB902 Series 6 PLC Bus Controller

Overview

The GE 5136CBB902 Series 6 PLC Bus Controller plays a crucial role in integrating Series 6 PLC systems with Genius I/O devices. This versatile controller fits into CPU slots, high-capacity I/O racks, or remote I/O racks. It supports up to 31 I/O devices, including Genius I/O blocks, handheld monitors, and interface devices.

With its Phase B enhancement, this bus controller is compatible with baud rates other than the 153.6 Kilobaud standard. It also supports a maximum connection distance of 2000 feet, ensuring flexibility in large-scale installations.

Key Features

• Bus Integration: Interfaces Series 6 PLC systems with Genius I/O devices.
• I/O Device Capacity: Supports up to 31 I/O devices.
• Baud Rate Compatibility: Selectable baud rates, excluding 153.6 Kilobaud.
• Maximum Distance: Supports a connection distance of up to 2000 feet.
• Built-in Diagnostics: Provides enhanced diagnostics for ease of troubleshooting.
• Phase B: Part of the Phase B enhanced bus controller family, designed for advanced systems.

Technical Specifications

Description

The GE IC660CBB902 Series 6 PLC Bus Controller enables seamless communication between the Series 6 PLC and Genius I/O devices. It supports up to 31 I/O devices, including Genius I/O blocks, interface devices, and handheld monitors. This module is designed for use in both CPU slots and remote I/O racks, providing flexibility in system configuration.

Operating as part of the Phase B enhanced bus controller family, the IC660CBB902 supports a wide range of baud rates (excluding the 153.6 Kilobaud standard rate) and can manage long-distance connections up to 2000 feet. It is ideal for applications where large I/O capacities are required, especially in systems with more than 64 I/O bits or where RTD blocks are used.

The built-in diagnostics feature offers real-time system monitoring, making troubleshooting more efficient. It is also compatible with Series 6 PLC systems supporting CPU-to-CPU communication and bus redundancy configurations, further enhancing system reliability.
