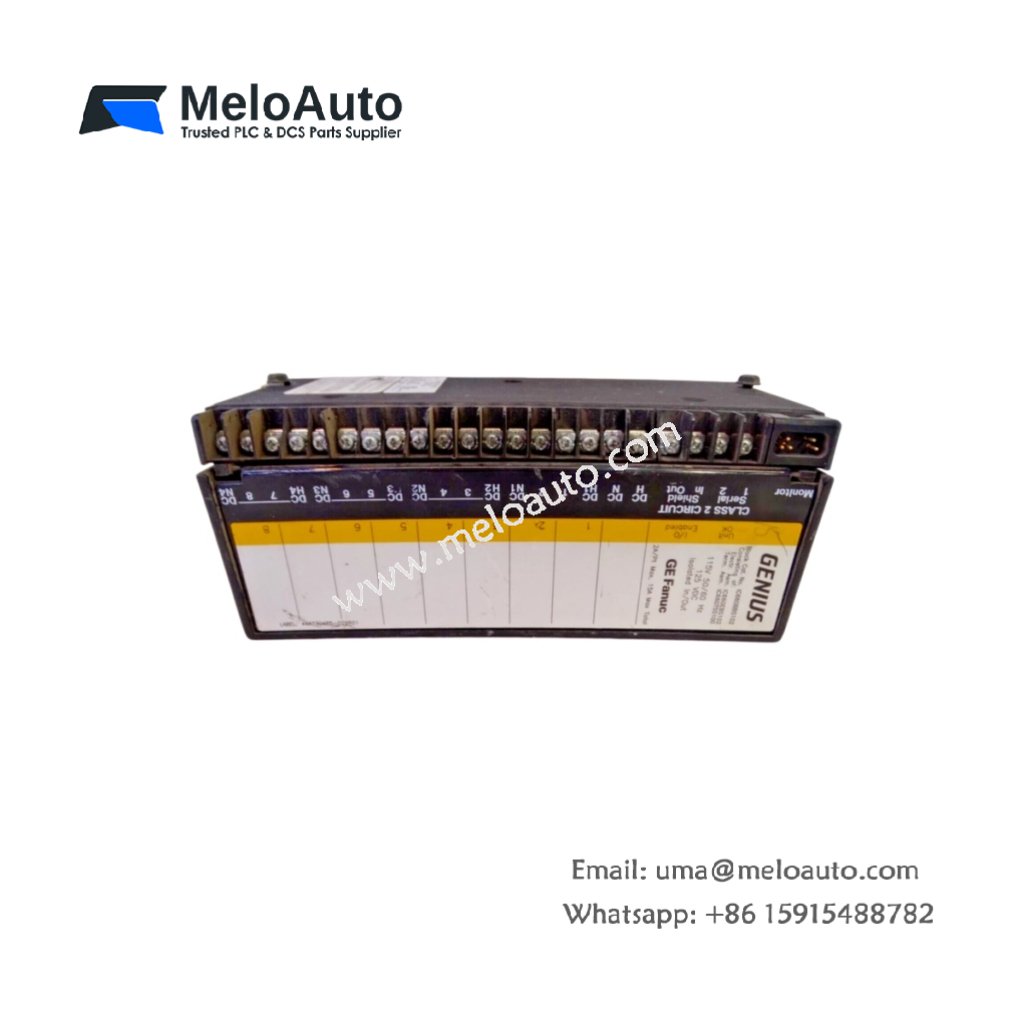

GE IC660BBS102 Isolated I/O Block

This isolated I/O block connects high-voltage field devices to a Genius network. It handles 115 V AC or 125 V DC signals for industrial control systems. You can mount this unit directly on a DIN rail or panel. The block serves solenoids, motor starters, and indicator lamps reliably.

Technical Specifications & Key Parameters

Parameter	Detail
Product Model	GE IC660BBS102
Category	Isolated I/O Block (Genius Series)
Dimensions (H x W x D)	178 mm x 112 mm x 87 mm
Weight	0.82 kg (1.81 lbs)
Input Points	8 isolated AC/DC inputs
Output Points	8 isolated AC/DC outputs
Input Voltage Range	85–132 V AC or 100–150 V DC
Output Voltage Range	85–132 V AC or 100–150 V DC
Output Current	1.0 A per point, 4.0 A total per block
Input Current	10 mA typical at 115 V AC
Isolation Voltage	1500 V RMS between field and logic
Energy Storage	1000 µF capacitor (holds output states for 15 ms)
Communication Bus	Genius LAN (via built-in bus interface)
Terminal Type	Two removable 20-pin screw blocks
Wire Size	14–18 AWG copper stranded
Status LEDs	16 indicators (one per I/O point)

Detailed Feature Overview

GE IC660BBS102 provides 8 isolated inputs and 8 isolated outputs in one block. This design handles both AC and DC voltages without configuration changes. The unit accepts 115 V AC or 125 V DC on any channel. Consequently, you can mix AC sensors and DC actuators on the same block.

Each channel features 1500 V RMS optical isolation for safety. This isolation protects the Genius network from field wiring surges. The outputs handle 1.0 A continuously for small motors or valves. A 1000 µF capacitor stores energy for brief power interruptions. It holds output states steady for 15 milliseconds during dips.

Genius Network Integration

This block includes a built-in bus interface for direct Genius LAN connection. It communicates with the PLC without any separate adapter module. The unit transmits input status updates every 8 milliseconds. It receives output commands from the processor within 4 milliseconds. Dual bus ports support redundant cable connections for fault tolerance.

Installation and Wiring Guidelines

Mount the block on standard 35 mm DIN rail or use four M4 screws. The unit weighs 0.82 kg for secure mounting. Two removable terminal blocks simplify wiring replacements. Use 14–18 AWG stranded copper wire for all field connections. Strip wires to 8 mm before inserting into terminals. Operating temperature ranges from 0°C to 60°C reliably. Keep humidity below 95% without condensation for long life.
