GE IC610MDL152A Output Module

Technical Specifications

Parameter	Value
Model	IC610MDL152A
Category	Output Module
Weight	1.05 lbs (0.48 kg)
Dimensions	6.1 x 4.5 x 1.7 inches
Output Channels	8 discrete outputs
Output Type	Relay, normally open
Contact Rating	2A at 120V AC or 24V DC
Output Response Time	10 ms maximum
Onboard Components	72 discrete parts
Energy Storage	2 x 220µF capacitors
Operating Voltage	5V DC from backplane
Power Consumption	120 mA from 5V bus
Isolation Voltage	1500V AC (field to logic)

Physical Construction and Component Layout

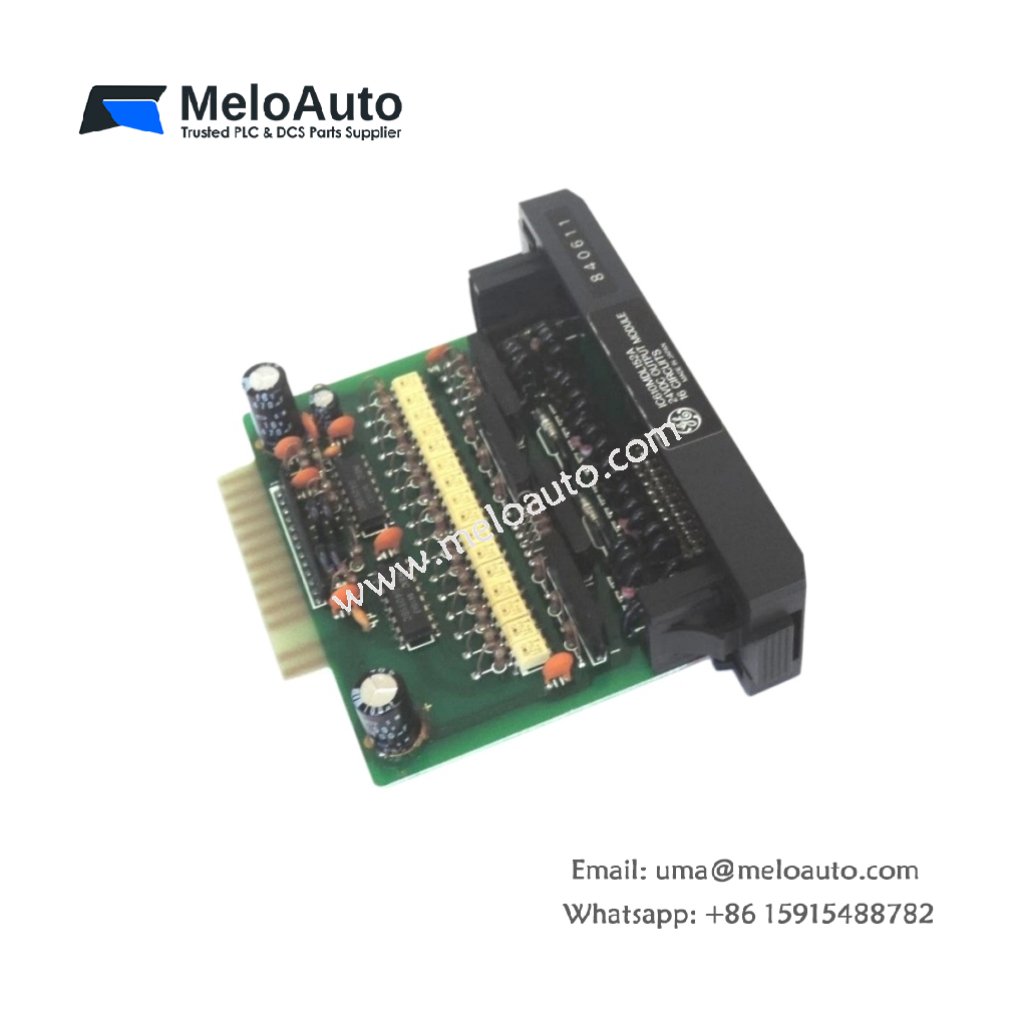

This IC610MDL152A output module measures 6.1 inches in height. Its width reaches 4.5 inches with a depth of 1.7 inches. The total weight comes to approximately 1.05 pounds. Manufacturers placed 72 discrete components on this PCB. These components include relays, resistors, diodes, and optocouplers. The board uses a sturdy two-layer design with wide copper traces.

Output Channels and Relay Specifications

IC610MDL152A provides eight discrete relay output channels. Each channel uses a normally open contact configuration. The relay contacts handle up to 2 amps of continuous current. You can switch either 120V AC or 24V DC loads safely. Maximum output response time stays within 10 milliseconds. Therefore, this module suits moderate-speed switching applications like solenoid control.

Energy Storage and Power Requirements

The output module integrates two 220µF electrolytic capacitors. These capacitors suppress back-EMF from inductive load switching. For backplane connection, the module draws 120 milliamps from the 5V DC bus. Optical isolation separates field wiring from the logic side circuitry. This isolation withstands 1500V AC for enhanced safety. Consequently, you get reliable operation even in noisy industrial environments.

Field Wiring and Typical Applications

You can connect indicator lights, relays, or small solenoids directly. This module also drives contactors through intermediate relays. The IC610MDL152A operates reliably from 0°C to 55°C ambient. Many factory automation systems use this card for discrete output control. For example, you will find it in packaging lines and conveyor systems. Additionally, it suits small machine control panels and test fixtures.
