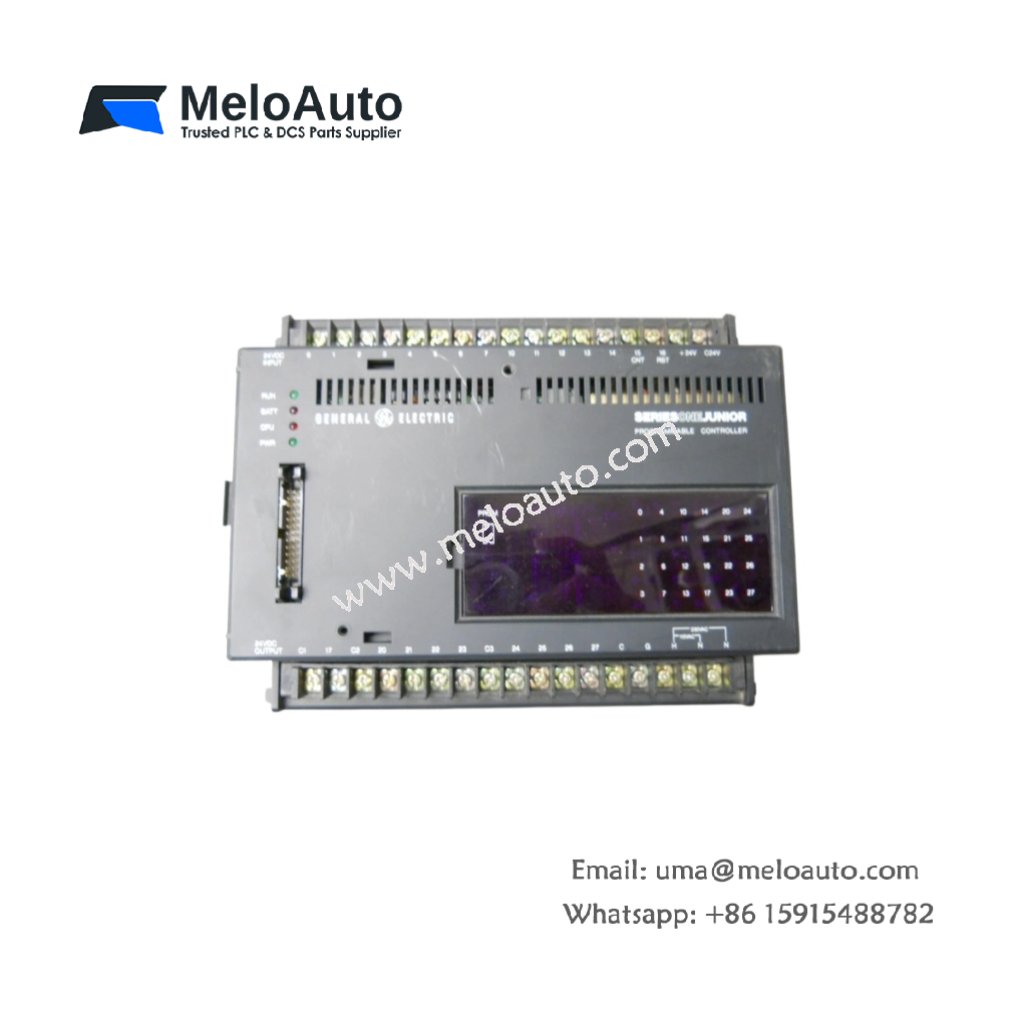

GE IC609SJR110A Programmable Controller for Logic Control

The IC609SJR110A operates as a compact programmable controller for small automation tasks. This unit handles discrete logic control for conveyors, sorters, and packaging machines. It provides reliable performance for standalone equipment control applications. Therefore, this controller suits original equipment manufacturers and panel builders.

Technical Specifications

We engineered this programmable controller for simple yet dependable machine control. Its compact housing saves valuable space inside control panels. Moreover, the unit includes built-in I/O for immediate field device connection.

I/O Configuration and Signal Processing

The IC609SJR110A provides six discrete inputs for sensor and switch connections. These inputs accept either AC or DC signals without any hardware changes. Four relay outputs directly control contactors, solenoids, or indicator lights. Each relay switches loads up to 2A at 120V AC or 24V DC.

Memory Architecture and Program Storage

This programmable controller stores user logic in non-volatile EEPROM memory. The memory retains your ladder program during complete power loss indefinitely. You do not need any battery backup for program retention. Consequently, the controller starts immediately when you restore power to the unit.

Energy Storage and Power Interruption

The IC609SJR110A contains internal capacitors for brief power ride-through. These capacitors maintain operation for up to 20 milliseconds during voltage dips. For longer interruptions, the controller performs an orderly shutdown automatically. No lithium battery exists on this unit for data retention.

Programming and Commissioning

You can program this controller using a hand-held programming terminal. Alternatively, use a PC with compatible GE Series 90 software. The unit accepts ladder logic programming with standard relay symbols. Always verify all I/O connections before downloading your program.
