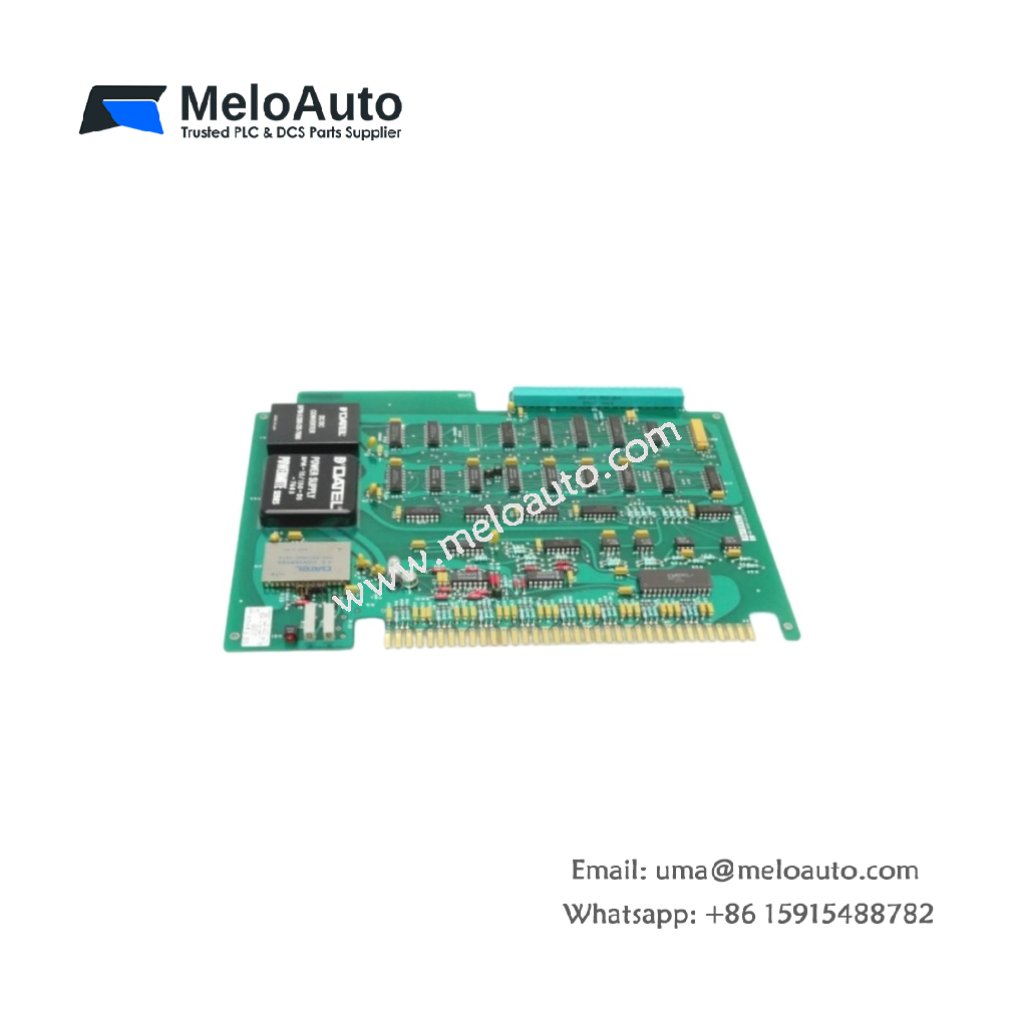

GE IC600 BF843: High-Level Analog Input Module for Series Six

This analog input module converts 0–10 V DC signals into digital data for the PLC. It accepts eight single-ended voltage inputs from field transmitters. You can install this unit directly into any Series Six I/O rack. The module provides reliable signal processing for continuous process monitoring applications.

Technical Specifications & Key Parameters

Detailed Feature Overview

GE IC600 BF843 provides eight channels for monitoring 0–10 V DC signals. This range suits most industrial pressure and temperature transmitters. The high 200 kΩ input impedance prevents signal distortion from long cable runs. You can wire each channel independently using the two removable terminal blocks.

The module achieves 12-bit resolution across the full 0–10 V range. Each channel updates every 10 milliseconds for stable process monitoring. A 100 µF capacitor stores enough energy for very brief power dips. It holds the last valid input value for 5 milliseconds. Consequently, nuisance fluctuations do not affect your control logic.

Compatibility and Installation

This module draws 350 mA from the Series Six backplane supply. Its 1.2 kg weight requires firm seating in the rack slot. Two locking latches secure the module to prevent vibration loosening. Use 16–22 AWG shielded wire for all field connections. Moreover, connect the shield drain wire to the ground terminal for noise rejection.

Environmental and Calibration Notes

The unit operates reliably from 0°C to 60°C ambient temperature. Factory calibration eliminates the need for potentiometer adjustments. Store the module between -40°C and 85°C for long-term preservation. The module meets GE Series Six quality standards for industrial environments. Keep humidity below 95% without condensation during operation.
