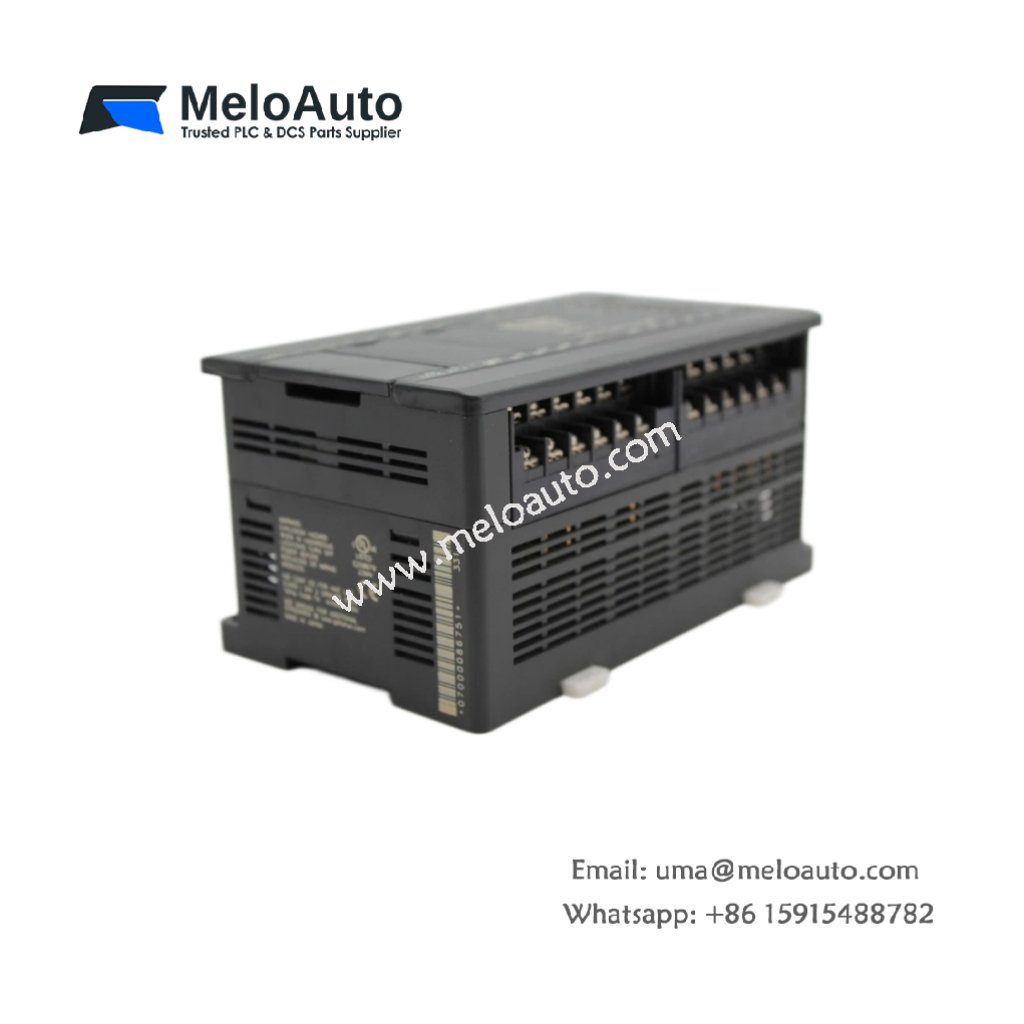

The IC200UDD110-BC serves as a compact micro controller for the VersaMax product line. This unit executes logic programs for small to medium machine control applications. It combines CPU power and I/O in a single integrated package. Therefore, this controller eliminates the need for separate rack and power supply components.
Technical Specifications
We engineered this micro controller for space-constrained industrial automation tasks. Its slim housing fits into tight control panels with limited depth. Moreover, the unit includes built-in communication ports for device connectivity.
| Parameter | Specification |
|---|---|
| Dimensions (H x W x D) | 3.8 x 2.9 x 2.4 inches (96 x 74 x 61 mm) |
| Weight | 0.23 kg (0.5 lbs) |
| Input Voltage | 24V DC nominal (18-30V DC range) |
| Discrete Inputs | 6 sink/source DC inputs |
| Discrete Outputs | 4 relay outputs rated at 2A each |
| User Memory | 10 KB for ladder logic and configuration |
| Communication Ports | 1x RS-232 serial port, 1x RS-485 |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Built-in I/O Configuration
The IC200UDD110-BC provides six discrete inputs for sensor and switch connections. These inputs accept both sink and source wiring configurations without hardware changes. Four relay outputs directly control small motors, valves, or indicator lights. Each relay handles up to 2A at 24V DC or 120V AC loads.
Processing Capabilities and Scan Time
This micro controller executes ladder logic with typical scan times under 5 ms. It supports up to 128 discrete points and 32 analog words in total. The onboard operating system handles timed interrupts for high-speed control tasks. Consequently, this controller responds quickly to fast-changing input signals.
Memory Architecture and Program Storage
The IC200UDD110-BC stores user programs in non-volatile flash memory permanently. This memory retains all logic and configuration data during power loss automatically. You do not need any battery backup for program retention on this unit. Therefore, the controller resumes operation immediately after power restoration.
Communication Capabilities
This micro controller features one RS-232 port for programmer connection. The second RS-485 port supports Modbus RTU slave communication. You can also use the RS-232 port for HMI or operator interface connectivity. Both ports operate simultaneously without any performance degradation.
Energy Storage and Power Ride-Through
The IC200UDD110-BC contains internal capacitors for brief power interruption handling. These capacitors maintain operation for up to 10 milliseconds during voltage dips. No lithium battery exists on this unit for data retention purposes. Hence, long-term data storage relies entirely on non-volatile flash memory.
