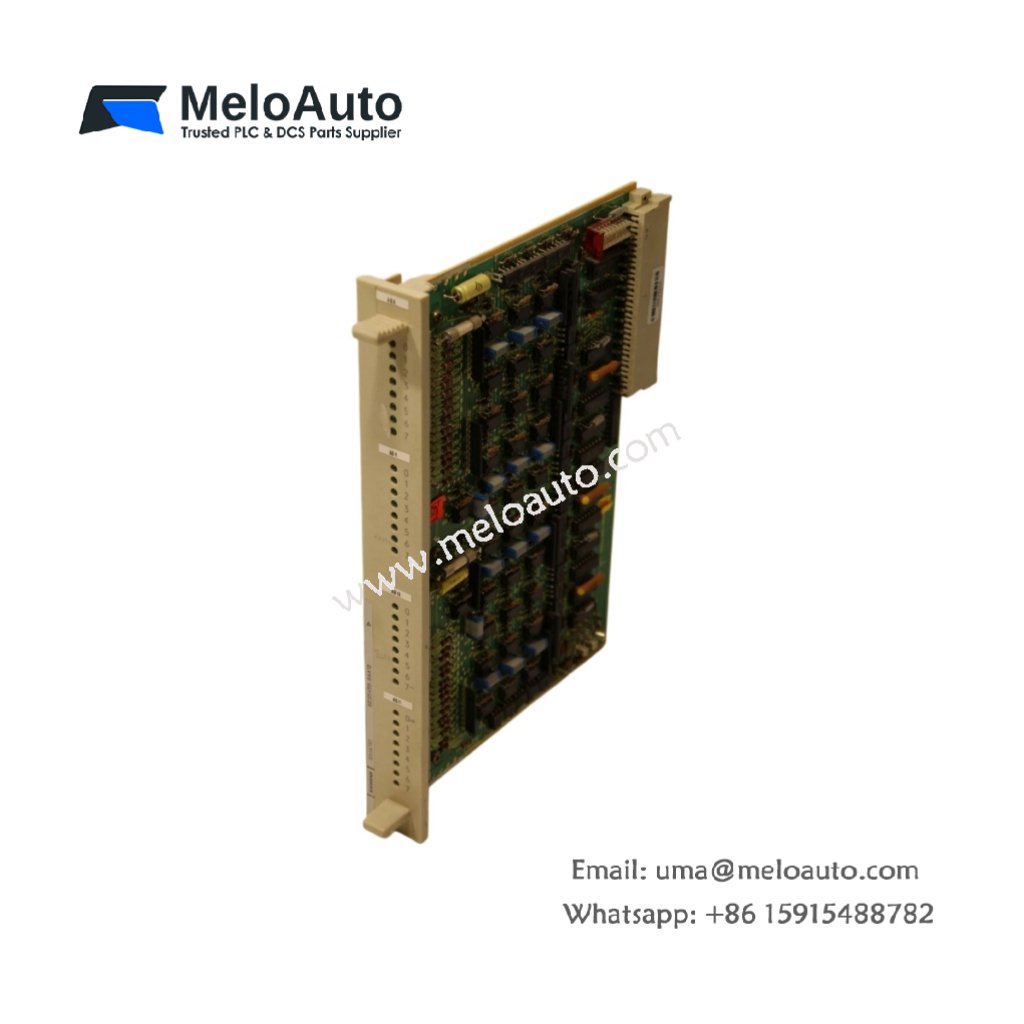

Siemens 6ES5450-6AA12 Digital Output Module

High-Density 32-Channel Output for SIMATIC S5 Systems

The 6ES5450-6AA12 digital output module provides 32 discrete output channels for the SIMATIC S5 automation platform . This module converts CPU control signals into 24 V DC field signals for driving actuators. It suits applications requiring high-density output capability in compact rack spaces. Consequently, this module serves conveyor systems, packaging machines, and material handling equipment.

Technical Specifications

Output Characteristics and Protection Features

The 6ES5450-6AA12 features 32 output channels with 0.12 A current capacity per channel . The module includes short-circuit protection on every output channel to prevent damage from wiring faults . It also provides overload protection for enhanced system reliability . Furthermore, the module’s protection circuits automatically reset after fault removal. LED indicators on the front panel display real-time status of each output channel.

Physical Characteristics and Installation

Weighing 0.35 kg, this module occupies a single slot in the S5 rack . It measures 2.0 cm in width, 24.5 cm in depth, and 19.0 cm in height . The module includes screw terminals for secure field wiring connections. Its compact design allows efficient use of rack space. The front panel provides clear labeling for easy channel identification.

System Compatibility

The 6ES5450-6AA12 works with SIMATIC S5-115U, S5-135U, and S5-155U PLC systems . It communicates with the CPU through the S5 backplane bus. Users can connect this module directly to solenoid valves, indicator lamps, and motor contactors.
