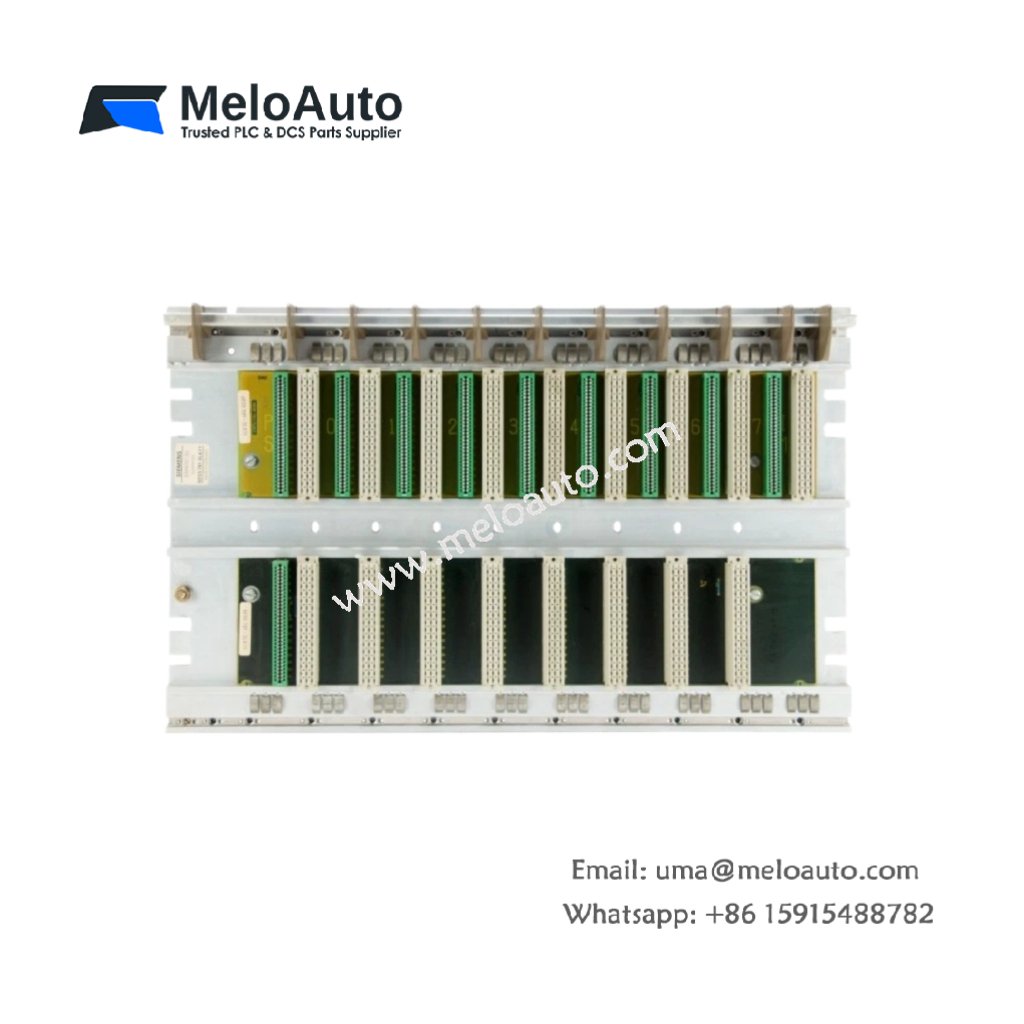

Siemens 6ES5701-3LA11 8-Slot Expansion Subrack Unit

Expanding I/O Capacity for SIMATIC S5 Systems

The 6ES5701-3LA11 expansion subrack offers 8 slots for the SIMATIC S5 automation family. This unit effectively expands the system’s I/O capacity or accommodates additional communication processors. It serves as a practical solution for complex industrial control applications by providing reliable mechanical and electrical support for connected modules.

Technical Specifications

Mechanical Design and Installation

The 6ES5701-3LA11 provides a sturdy metallic housing designed for standard industrial cabinets. It supports 8 single-wide modules and ensures seamless integration of various I/O modules. The unit is designed for straightforward mounting onto the mounting plate and connects directly to the host controller via an interface cable. This construction ensures stable operation even in environments with significant vibration.

System Integration and Compatibility

This expansion unit enhances system scalability while maintaining full compatibility with other S5 components. It interfaces with a wide range of modules, including power supplies, CPUs (in certain configurations), and communication processors. The internal backplane bus ensures efficient data exchange between the modules and the host PLC.

Status and Availability

Siemens has discontinued the 6ES5701-3LA11 as part of the legacy S5 portfolio. Users can source this unit through industrial automation distributors offering used or refurbished stock with warranty coverage. Consider migration paths to newer S7 platforms for future scalability needs.
