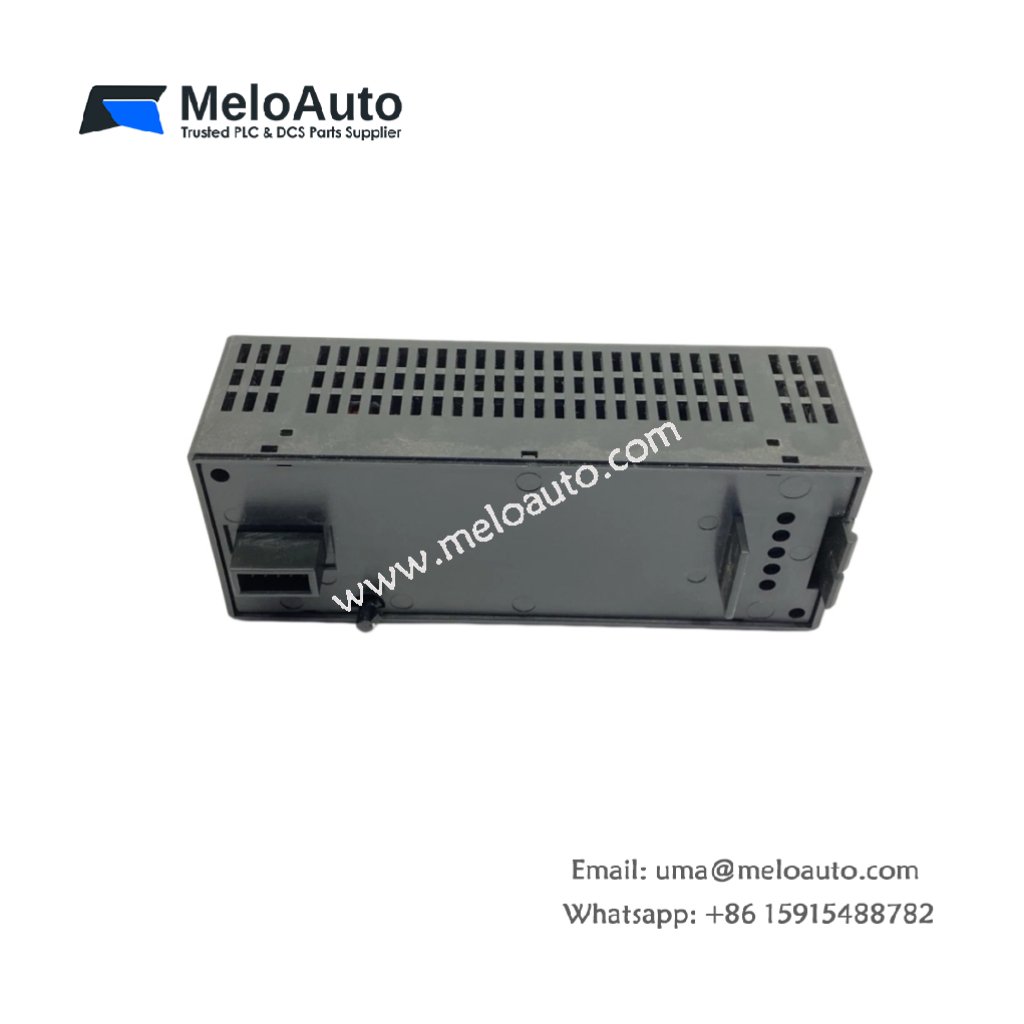

GE IC200PWR102J Expanded Power Supply Module

Overview

The GE IC200PWR102J is an advanced expanded power supply module within the VersaMax family, developed by Emerson Automation (formerly GE Intelligent Platforms). This power supply module provides reliable power to various automation systems, offering both 5VDC and 3.3VDC output. With its flexible input voltage range and compact design, the IC200PWR102J ensures optimal performance in industrial environments.

Key Features

Flexible Input Voltage: The IC200PWR102J accepts a wide input voltage range from 85-132 VAC (120 VAC nominal) or 176-264 VAC (240 VAC nominal), with a frequency of 47-63 Hz. This flexibility makes it ideal for global applications.
Dual Output Voltages: This module provides two output voltages: 5 VDC and 3.3 VDC. It supports 1.5 A maximum at 5 VDC and 1.0 A maximum at 3.3 VDC, delivering the power needed for various components in automation systems.
Compact and Lightweight: Weighing only 0.31 lbs (0.14 kg), the IC200PWR102J is compact and lightweight, which simplifies installation and integration into industrial control systems.
Extended Power Capacity: The IC200PWR102J offers extended power capabilities, with a total output current of 1.5 Amps, making it suitable for systems that require reliable and consistent power.
Holdup Time: This power supply module offers a holdup time of 20 ms, ensuring smooth operation during power interruptions and contributing to system stability.

Technical Specifications

Parameter	Specification
Model	IC200PWR102J
Product Type	Expanded Power Supply
Product Line	VersaMax
Input Voltage Range	85-132 VAC or 176-264 VAC
Input Frequency	47-63 Hz
Output Voltage	5 VDC and 3.3 VDC
Total Output Current	1.5 A (Maximum)
Output Current at 5 VDC	1.5 A (Maximum)
Output Current at 3.3 VDC	1.0 A (Maximum)
Input Power	27 VA
Holdup Time	20 ms
Weight	0.31 lbs (0.14 kg)

Applications

The GE IC200PWR102J is essential in industrial automation systems, particularly in applications where dual voltage outputs are required. It is compatible with the VersaMax I/O modules and can provide stable power to robotics, control systems, and other automated devices. Its reliable performance makes it ideal for use in critical applications where power stability is paramount.

Manufacturer

Manufactured by Emerson Automation (formerly GE Fanuc), the IC200PWR102J power supply module is a key part of the VersaMax product family. Known for delivering high-quality, reliable industrial automation solutions, Emerson continues to provide innovative power solutions to meet the demands of the automation industry.
