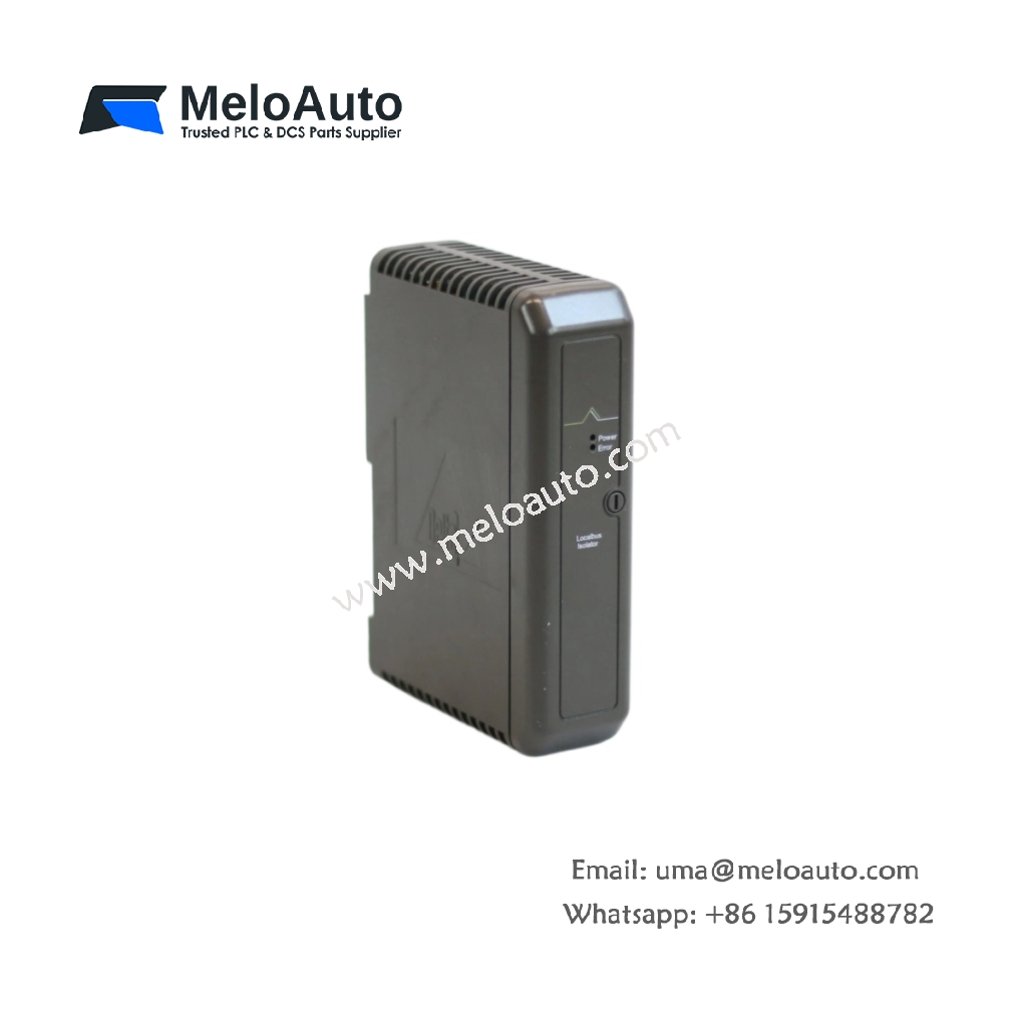

The KJ4110X1-EB1 local bus isolator from Emerson protects DeltaV communication lines from ground loops and electrical noise. This unit separates bus segments and keeps signal integrity intact across cabinet boundaries. Engineers choose this isolator when they need stable data transfer and simple slot installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | KJ4110X1-EB1 |
| Module Type | Local Bus Isolator |
| Isolation Type | Galvanic bus segment isolation |
| Interface | Backplane connector, bus segment contacts |
| Mounting | DeltaV chassis slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Weight | Approx. 0.22 kg |
| Dimensions | Approx. 150 mm × 92 mm × 26 mm |
| Energy Storage | On-board capacitors for bus rail buffering |
| Component Count | Single isolated bus channel per module |
Interface and Signal Details
The KJ4110X1-EB1 connects bus segments through dedicated backplane contacts and isolates them galvanically. Each module handles one bus channel and blocks circulating currents between cabinets. Therefore, technicians gain clean data transfer without extra grounding hardware. The unit seats in a standard chassis slot and draws power from the shared rail.
Physical and Environmental Parameters
The module measures roughly 150 mm by 92 mm by 26 mm and weighs about 0.22 kg. Its slim housing fits dense cabinets and simplifies panel layout. Meanwhile, the 0°C to 60°C operating range covers typical control room conditions. The on-board capacitors buffer the bus rail during brief supply dips.
Why This Module Matters
Plant teams value the KJ4110X1-EB1 for its dependable isolation and compact build. The capacitor bank steadies the bus rail during load swings. As a result, communication faults drop and network uptime improves noticeably. Technicians also appreciate the tool-free installation and clear slot labeling.
