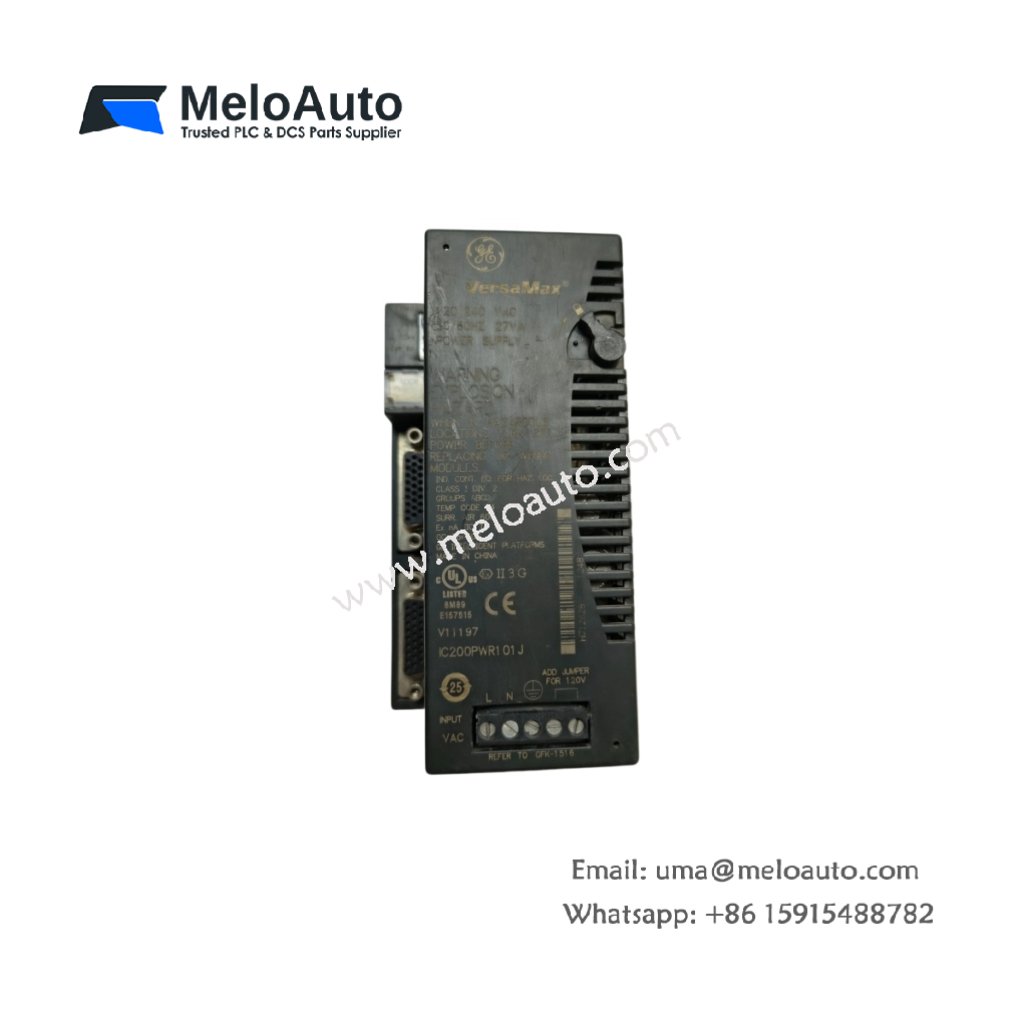

GE IC200PWR101J VersaMax Power Supply

This power supply module delivers regulated DC voltage to VersaMax I/O stations. It converts high AC input into usable logic levels. You will mount this unit on the left side of every VersaMax rack.

Key Technical Specifications

The IC200PWR101J accepts an input range of 85 to 264V AC. Its maximum output power reaches 30 watts across three DC rails. The module also provides short-circuit and overvoltage protection on all outputs.

Parameter	Technical Data
Product Type	VersaMax Power Supply
AC Input Range	85-264V AC, 47-63 Hz
DC Output 1	24V @ 0.8A (19.2W)
DC Output 2	5V @ 2A (10W)
DC Output 3	3.3V @ 0.3A (0.99W)
Total Output Power	30 Watts maximum
Efficiency	75% typical at full load
Dimensions (W x H x D)	5.5 cm x 11.0 cm x 7.1 cm
Total Weight	0.25 kg (0.55 lbs)
Input Connector	3-position removable terminal
Output Connector	16-pin backplane interface
Onboard Capacitors	12 electrolytic (total 520 µF)
Energy Storage	520 µF bulk capacitance
Hold-up Time	10 ms at 30W load
Operating Temperature	0°C to 60°C

Hardware Architecture and Energy Storage

The IC200PWR101J uses 520 µF of bulk capacitance for energy storage. This capacitance provides 10 ms of hold-up during brief power interruptions. Twelve electrolytic capacitors filter ripple on the three output rails. The switching converter operates at 100 kHz for high efficiency.

Interface and Connectivity

One 3-position removable terminal block accepts AC line and neutral wiring. A 16-pin backplane connector distributes DC power to adjacent modules. The front panel features a green LED for power-good status indication. Two mounting tabs secure the module to the VersaMax rail.

Practical Installation Notes

Install this power supply in the leftmost slot of any VersaMax station. The IC200PWR101J requires no forced air cooling for normal operation. Always connect the ground terminal to the system earth bus. Verify the total load does not exceed 30 watts for continuous use.
