GE IC200PWR101H | Power Supply

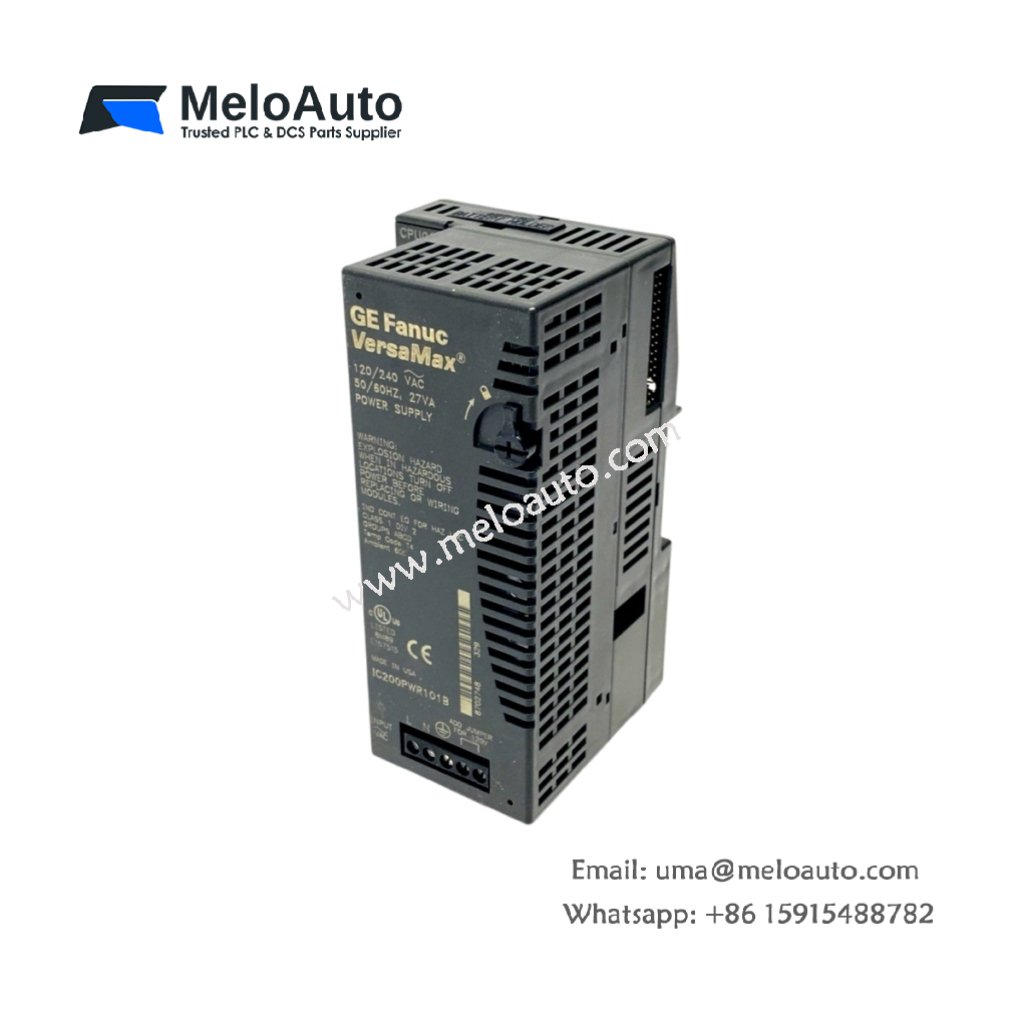

The GE IC200PWR101H provides reliable DC power for VersaMax I/O and CPU modules. This power supply converts 120/230 V AC input to 24 V DC output. It delivers stable power for logic circuits, I/O modules, and field devices. Weighing only 0.45 kg, the GE IC200PWR101H mounts on a DIN rail or panel. Its dimensions measure 110 mm x 90 mm x 65 mm.

Output Specifications and Load Capacity

The GE IC200PWR101H supplies 24 V DC at 1.5 A for VersaMax system power. This power supply provides 36 W of total output power for connected modules. It includes built-in overload and short-circuit protection for safe operation. Moreover, the GE IC200PWR101H features LED indicators for power status and fault conditions. Consequently, you can monitor system health at a glance without test equipment.

Input Specifications and Energy Storage

The GE IC200PWR101H accepts a dual-voltage input of 120 V AC or 230 V AC. This unit automatically selects the correct input range without jumpers or switches. It contains electrolytic capacitors for energy storage and voltage smoothing. The GE IC200PWR101H provides 20 ms of hold-up time during input power interruptions. Therefore, your VersaMax system continues running through brief power dips and voltage sags.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	GE IC200PWR101H
Product Category	VersaMax Power Supply
Input Voltage (AC)	85-132 V AC or 176-264 V AC (auto-ranging)
Input Frequency	47 Hz to 63 Hz
Inrush Current	30 A maximum at 120 V AC
Output Voltage	24 V DC (21.6 V to 28.8 V DC)
Output Current	1.5 A continuous
Output Power	36 W maximum
Hold-up Time	20 ms at full load
Output Capacitance (Energy Storage)	1,000 µF
Efficiency	80% typical at full load
Ripple and Noise	< 100 mV peak-to-peak
Line Regulation	±1% maximum
Load Regulation	±2% maximum
Protection Features	Overload, short-circuit, over-voltage
Protection Reset	Automatic after fault removal
LED Indicators	Power OK (green), Fault (red)
Cooling Method	Natural convection (no fan)
Number of Components	1 main PCB + 1 transformer + 4 capacitors + metal housing
Net Weight	0.45 kg (450 grams)
Gross Weight (packaged)	580 grams
Dimensions (H x W x D)	110 mm x 90 mm x 65 mm
Mounting Type	35 mm DIN rail or panel mount
Wire Size (Terminals)	AWG 24 to AWG 14 (0.2 mm² to 2.5 mm²)
Screw Terminal Torque	0.8 N·m to 1.1 N·m
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Humidity Tolerance	5% to 95% non-condensing
Degree of Protection	IP20
Certifications	CE, UL 508, CSA

Installation and Application Details

The GE IC200PWR101H snaps directly onto a standard 35 mm DIN rail. Press the unit onto the rail until the locking clip engages securely. Connect 120 V AC or 230 V AC input wires to the L and N terminals. Connect the protective earth wire to the PE terminal for safety grounding. The GE IC200PWR101H requires no configuration switches or jumpers for operation. Use the output terminals to supply 24 V DC power to your VersaMax backplane. This power supply suits small VersaMax systems with CPU and limited I/O modules. It works perfectly for conveyor controls, packaging machines, and material handling equipment. Thus, the GE IC200PWR101H provides reliable DC power for demanding industrial automation applications.
